Exterior Rear View Mirror (5 Door, Itatiaia (Brazil)) ((V) Fromgt000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Exterior Rear View Mirror (5 Door, Itatiaia (Brazil)) ((V) FROMGT000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR025172 SCREW $1.23 IN STOCK
Photo Part No Description Price (each) Stock
LR011865 SCREW $1.28 IN STOCK
Photo Part No Description Price (each) Stock
LR048351 LAMP - EXTERIOR MIRROR $82.92 IN STOCK
LR048352 LAMP - EXTERIOR MIRROR $82.92 IN STOCK
Photo Part No Description Price (each) Stock
LR074143 MIRROR - REAR VIEW - OUTER $822.16 To Order
LR074150 MIRROR - REAR VIEW - OUTER $822.16 To Order
LR074141 MIRROR - REAR VIEW - OUTER $759.62 To Order
...and 11 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR048349 LAMP - EXTERIOR MIRROR $96.37 To Order
LR048350 LAMP - EXTERIOR MIRROR $107.76 To Order
Photo Part No Description Price (each) Stock
CRP500031 MOTOR - EXTERIOR REAR VIEW MIRROR $88.71 To Order
CRP500041 MOTOR - EXTERIOR REAR VIEW MIRROR $130.29 To Order
LR015050 MOTOR - EXTERIOR REAR VIEW MIRROR $87.07 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR048353 COVER - MIRROR HOUSING $81.10 IN STOCK
LR048354 COVER - MIRROR HOUSING $81.10 To Order
Photo Part No Description Price (each) Stock
LR048359 GLASS - REAR VIEW OUTER MIRROR $122.89 To Order
LR048360 GLASS - REAR VIEW OUTER MIRROR $122.89 To Order
LR048365 GLASS - REAR VIEW OUTER MIRROR $205.05 To Order
...and 5 more part variants. See table on right for more details.
View All

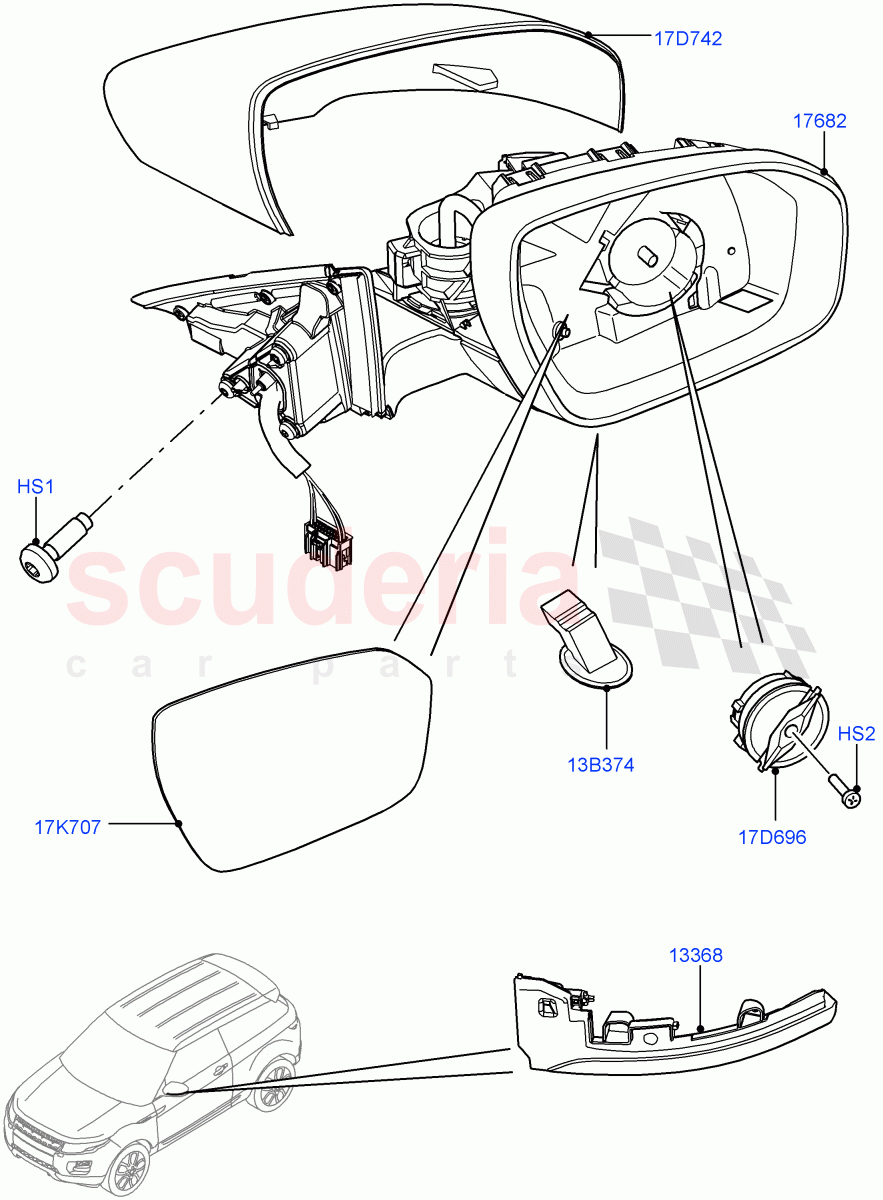

Exterior Rear View Mirror (5 Door, Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 LR025172
SCREW
M6 X 16MM / From: GT000001
IN STOCK 		$1.23 3
HS2 LR011865
SCREW
M3 X 25MM / From: GT000001
IN STOCK 		$1.28 1
13B374 LR048349
LAMP - EXTERIOR MIRROR
Approach Lights / RH / From: GT000001 		$96.37 1
13B374 LR048350
LAMP - EXTERIOR MIRROR
Approach Lights / LH / From: GT000001 		$107.76 1
17D696 CRP500031
MOTOR - EXTERIOR REAR VIEW MIRROR
RH, 3 Pin Connector, Less Memory / From: GT000001 		$88.71 1
17D696 CRP500041
MOTOR - EXTERIOR REAR VIEW MIRROR
RH, 8 Pin Connector, With Memory / From: GT000001 		$130.29 1
17D696 LR015050
MOTOR - EXTERIOR REAR VIEW MIRROR
LH, 3 Pin Connector, Less Memory / From: GT000001 		$87.07 1
17D696 LR015051
MOTOR - EXTERIOR REAR VIEW MIRROR
LH, 8 Pin Connector, With Memory / From: GT000001 		$135.04 1
17D742 LR048353
COVER - MIRROR HOUSING
RH, Primed / From: GT000001
IN STOCK 		$81.10 1
17D742 LR048354
COVER - MIRROR HOUSING
LH, Primed / From: GT000001 		$81.10 1
17K707 LR048359
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Less Blind Spot Information System / RH, Convex Glass / From: GT000001 / To: HT999999 		$122.89 1
17K707 LR048360
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Less Blind Spot Information System / LH, Convex Glass / From: GT000001 / To: HT999999 		$122.89 1
17K707 LR048365
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Reverse Traffic Detection/CTA/LCMA / RH / From: GT000001 / To: HT999999 		$205.05 1
17K707 LR048366
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Reverse Traffic Detection/CTA/LCMA / LH / From: GT000001 / To: HT999999 		$205.05 1
17K707 LR093153
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Dual Pwr/Htd/Mem/Fld/E'Chr/Pud Lamp, Less Blind Spot Information System, Rear View Camera-Fixed / RH, Convex Glass / From: JT000001 		$327.29 1
17K707 LR093177
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Dual Pwr/Htd/Mem/Fld/E'Chr/Pud Lamp, Less Blind Spot Information System, Rear View Camera-Fixed / LH, Convex Glass / From: JT000001 		$327.29 1
17K707 LR048359
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Dual Power/Heated/Fold/App Mirrors, Less Blind Spot Information System, Less Camera System / RH, Convex Glass / From: GT000001 		$122.89 1
17K707 LR048360
GLASS - REAR VIEW OUTER MIRROR
2 1400MM Convex Mirror, Dual Power/Heated/Fold/App Mirrors, Less Blind Spot Information System, Less Camera System / LH, Convex Glass / From: GT000001 		$122.89 1
13368 LR048351
LAMP - EXTERIOR MIRROR
RH / From: GT000001
IN STOCK 		$82.92 1
13368 LR048352
LAMP - EXTERIOR MIRROR
LH / From: GT000001
IN STOCK 		$82.92 1
17682 LR074143
MIRROR - REAR VIEW - OUTER
Approach Lights, Dual Power Heated Fold Back Mirror, Less Water Wading Equipment, Reverse Traffic Detection/CTA/LCMA, Surround Camera System / RH / From: GT000001 		$822.16 1
17682 LR074150
MIRROR - REAR VIEW - OUTER
Approach Lights, Dual Power Heated Fold Back Mirror, Less Water Wading Equipment, Reverse Traffic Detection/CTA/LCMA, Surround Camera System / LH / From: GT000001 		$822.16 1
17682 LR074141
MIRROR - REAR VIEW - OUTER
Approach Lights, Dual Power Heated Fold Back Mirror, Less Blind Spot Information System, Less Water Wading Equipment, Surround Camera System / RH / From: GT000001 		$759.62 1
17682 LR074148
MIRROR - REAR VIEW - OUTER
Approach Lights, Dual Power Heated Fold Back Mirror, Less Blind Spot Information System, Less Water Wading Equipment, Surround Camera System / LH / From: GT000001 		$759.62 1
17682 LR068145
MIRROR - REAR VIEW - OUTER
Approach Lights, Less Blind Spot Information System, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, Rear View Camera-Fixed / RH / From: GT000001 		$750.27 1
17682 LR074204
MIRROR - REAR VIEW - OUTER
Approach Lights, LHD, Less Blind Spot Information System, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, Rear View Camera-Fixed / LH / From: GT000001 		$623.09 1
17682 LR066882
MIRROR - REAR VIEW - OUTER
Approach Lights, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, Rear View Camera-Fixed, Reverse Traffic Detection/CTA/LCMA / RH / From: GT000001 		$798.40 1
17682 LR066887
MIRROR - REAR VIEW - OUTER
Approach Lights, Less Camera System, Less Water Wading Equipment, Power/Heated/Memory Fold Back Mir, Reverse Traffic Detection/CTA/LCMA / LH / From: GT000001 		$745.20 1
17682 LR068137
MIRROR - REAR VIEW - OUTER
Dual Power Heated Exterior Mirrors, Less Auxillary Lights, Less Blind Spot Information System, Less Camera System, Less Water Wading Equipment / RH / From: GT000001 		$536.98 1
17682 LR068138
MIRROR - REAR VIEW - OUTER
Dual Power Heated Exterior Mirrors, Less Auxillary Lights, Less Blind Spot Information System, Less Camera System, Less Water Wading Equipment / LH / From: GT000001 		$536.08 1
17682 LR068141
MIRROR - REAR VIEW - OUTER
Approach Lights, Dual Power Heated Fold Back Mirror, Less Blind Spot Information System, Less Camera System, Less Water Wading Equipment / RH / From: GT000001 		$667.70 1
17682 LR068142
MIRROR - REAR VIEW - OUTER
Approach Lights, Dual Power Heated Fold Back Mirror, Less Blind Spot Information System, Less Camera System, Less Water Wading Equipment / LH / From: GT000001 		$667.70 1
17682 LR096655
MIRROR - REAR VIEW - OUTER
2 1400MM Convex (SAS) Glass, Dual Pwr/Htd/Mem/Fld/E'Chr/Pud Lamp, Less Blind Spot Information System / RH / From: GT000001 		$631.50 1
17682 LR096665
MIRROR - REAR VIEW - OUTER
2 1400MM Convex (SAS) Glass, Dual Pwr/Htd/Mem/Fld/E'Chr/Pud Lamp, Less Blind Spot Information System / LH / From: GT000001 		$631.50 1
