Rear Bumper (Halewood (Uk), Non Sport/Dynamic)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Rear Bumper (Halewood (UK), Non Sport/Dynamic)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR028941 BOLT $1.39 To Order
Photo Part No Description Price (each) Stock
RZM500140 CLIP $1.16 IN STOCK
Photo Part No Description Price (each) Stock
RYH500950 NUT - ADJUSTING $1.23 To Order
Photo Part No Description Price (each) Stock
RYH500370 NUT AND WASHER - HEX. $0.67 To Order
Photo Part No Description Price (each) Stock
LR000053 NUT - FLANGED $1.63 IN STOCK
Photo Part No Description Price (each) Stock
RYH500540 NUT - SPECIAL $1.24 To Order
RYH500570 NUT - ADJUSTING $2.85 To Order
Photo Part No Description Price (each) Stock
LR006025 BOLT $1.39 IN STOCK
Photo Part No Description Price (each) Stock
LR001598 SCREW $0.67 To Order
Photo Part No Description Price (each) Stock
CYP100791 SCREW $2.29 IN STOCK
Photo Part No Description Price (each) Stock
LR083229 SCREW $4.25 IN STOCK
LR083229 SCREW $4.25 IN STOCK
Photo Part No Description Price (each) Stock
RYQ500070 PIN - RETAINING 6.3 X 22MM $1.51 IN STOCK
Photo Part No Description Price (each) Stock
LR026337 BUMPER - REAR $847.96 To Order
LR034458 BUMPER - REAR $1,042.90 To Order
LR036708 BUMPER - REAR $856.40 To Order
...and 15 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR027245 HEAT SHIELD - MUFFLER $56.53 To Order
Photo Part No Description Price (each) Stock
LR026327 REINFORCEMENT - BUMPER BAR BRACKET $593.12 To Order
LR044061 REINFORCEMENT - BUMPER BAR BRACKET $631.53 To Order
LR066891 REINFORCEMENT - BUMPER BAR BRACKET $553.56 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR031629 BRACKET - BUMPER MOUNTING $40.77 To Order
LR031630 BRACKET - BUMPER MOUNTING $40.77 To Order
LR042994 BRACKET - BUMPER MOUNTING $40.77 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR026332 BRACKET - BUMPER MOUNTING $22.89 To Order
LR026333 BRACKET - BUMPER MOUNTING $22.89 To Order
LR035106 BRACKET - BUMPER MOUNTING $22.89 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR006719 RETAINER - NUT $1.89 To Order
Photo Part No Description Price (each) Stock
LR027979 BRACKET - BUMPER MOUNTING $214.51 To Order
LR027980 BRACKET - BUMPER MOUNTING $214.51 To Order
LR026330 BRACKET - BUMPER MOUNTING $28.54 To Order
...and 11 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR026334 BRACKET - BUMPER MOUNTING $53.19 To Order
LR026335 BRACKET - BUMPER MOUNTING $34.28 To Order
LR035105 BRACKET - BUMPER MOUNTING $50.06 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR026328 COVER - TOWING HOOK $56.01 To Order
Photo Part No Description Price (each) Stock
LR026329 COVER - TOWING HOOK $56.01 To Order
View All

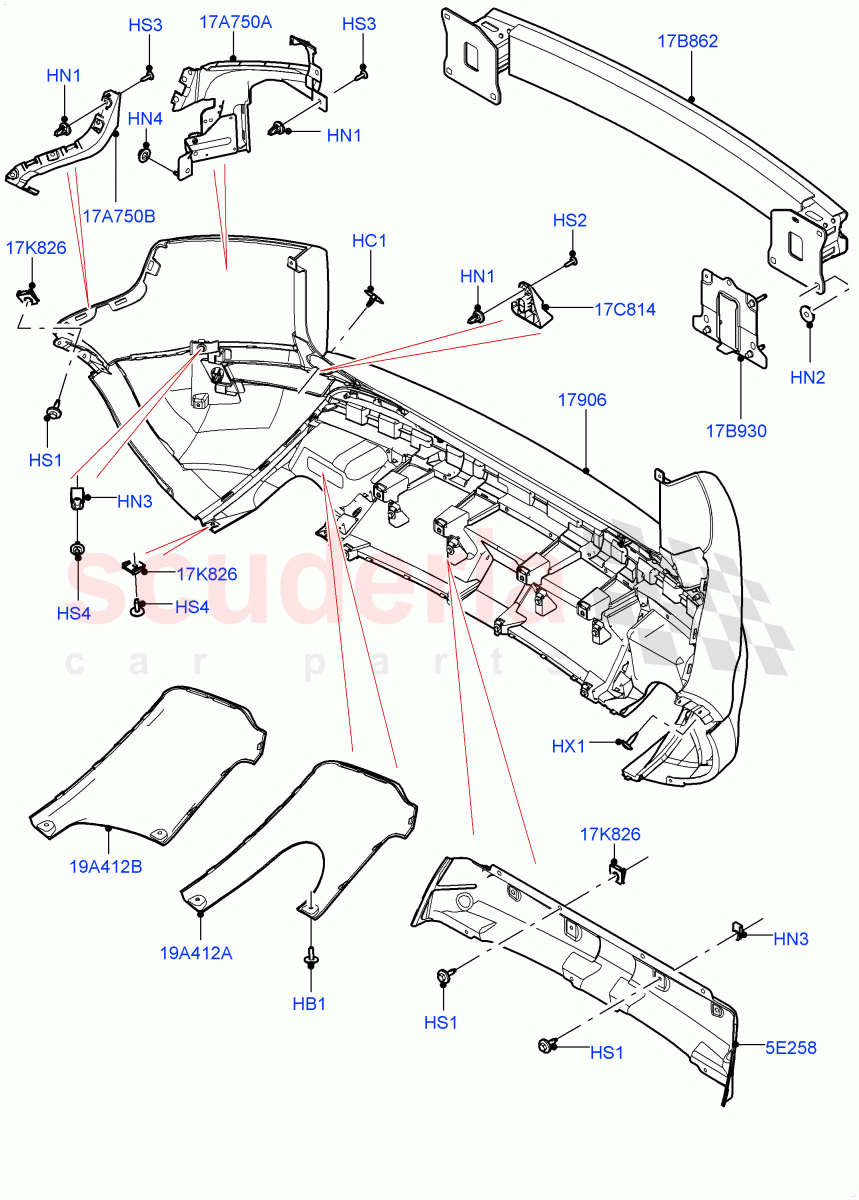

Rear Bumper (Halewood (UK), Non Sport/Dynamic) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR028941
BOLT
M6 x 18MM 		$1.39 2
HC1 RZM500140
CLIP
Trim Pin 12 X 0.8 - 8.4 Nylon
IN STOCK 		$1.16 2
HN1 RYH500950
NUT - ADJUSTING
4.8 X 8 X 8 X 0.7, Expanding Rivet, Includes Seal 		$1.23 16
HN2 RYH500370
NUT AND WASHER - HEX.
M8 Hex, Nut And Washer 		$0.67 6
HN3 LR000053
NUT - FLANGED
U-Nut M6 X 0.8 - 4.0
IN STOCK 		$1.63 8
HN4 RYH500540
NUT - SPECIAL
With Blind Spot Monitoring / M6 / To: DH999999 		$1.24 2
HN4 RYH500570
NUT - ADJUSTING
Reverse Traffic Detection/CTA/LCMA / M6 / From: EH000001 		$2.85 2
HS1 LR006025
BOLT
Bolt And Washer, M6 X 15 Hex
IN STOCK 		$1.39 14
HS2 LR001598
SCREW
4.8 X 19MM, Torx 		$0.67 4
HS3 CYP100791
SCREW
M5
IN STOCK 		$2.29 12
HS4 LR083229
SCREW
Exhaust Exit Bumper Finisher, M6 X 14MM
IN STOCK 		$4.25 4
HS4 LR083229
SCREW
M6 X 14MM, Support Bracket
IN STOCK 		$4.25 2
HX1 RYQ500070
PIN - RETAINING 6.3 X 22MM
6.3 X 22MM, Push Pin
IN STOCK 		$1.51 2
5E258 LR027245
HEAT SHIELD - MUFFLER
Muffler Heat Shield 		$56.53 1
17A750A LR027979
BRACKET - BUMPER MOUNTING
With Blind Spot Monitoring / RH / To: DH999999 		$214.51 1
17A750A LR027980
BRACKET - BUMPER MOUNTING
With Blind Spot Monitoring / LH / To: DH999999 		$214.51 1
17A750A LR026330
BRACKET - BUMPER MOUNTING
Less Blind Spot Information System / RH / To: DH999999 		$28.54 1
17A750A LR026331
BRACKET - BUMPER MOUNTING
Less Blind Spot Information System / LH / To: DH999999 		$28.54 1
17A750A LR048699
BRACKET - BUMPER MOUNTING
5 Door, Lane Change Merge Aid / RH / From: EH000001 / To: HH999999 		$97.63 1
17A750A LR048700
BRACKET - BUMPER MOUNTING
5 Door, Lane Change Merge Aid / LH / From: EH000001 / To: HH999999 		$97.63 1
17A750A LR048696
BRACKET - BUMPER MOUNTING
5 Door, Less Blind Spot Information System / RH / From: EH000001 / To: HH999999 		$29.03 1
17A750A LR048697
BRACKET - BUMPER MOUNTING
5 Door, Less Blind Spot Information System / LH / From: EH000001 / To: HH999999 		$32.40 1
17A750A LR069763
BRACKET - BUMPER MOUNTING
2 Door Convertible / RH, With Antenna / From: GH000001 		$216.51 1
17A750A LR069764
BRACKET - BUMPER MOUNTING
2 Door Convertible / LH, With Antenna / From: GH000001 		$216.51 1
17A750A LR099518
BRACKET - BUMPER MOUNTING
5 Door, Lane Change Merge Aid / RH / From: JH000001 		$119.33 1
17A750A LR099520
BRACKET - BUMPER MOUNTING
5 Door, Lane Change Merge Aid / LH / From: JH000001 		$119.33 1
17A750A LR099649
BRACKET - BUMPER MOUNTING
3 Door, Less Blind Spot Information System / LH / From: JH000001 		$27.67 1
17A750A LR099648
BRACKET - BUMPER MOUNTING
3 Door, Less Blind Spot Information System / RH / From: JH000001 		$27.67 1
17A750B LR026334
BRACKET - BUMPER MOUNTING
RH / To: CH615300 		$53.19 1
17A750B LR026335
BRACKET - BUMPER MOUNTING
LH / To: CH615300 		$34.28 1
17A750B LR035105
BRACKET - BUMPER MOUNTING
LH / From: CH615301 		$50.06 1
17A750B LR035104
BRACKET - BUMPER MOUNTING
RH / From: CH615301 		$50.06 1
17B862 LR026327
REINFORCEMENT - BUMPER BAR BRACKET
Armature / To: DH715024 		$593.12 1
17B862 LR044061
REINFORCEMENT - BUMPER BAR BRACKET
Armature / From: DH715025 / To: FH030912 		$631.53 1
17B862 LR066891
REINFORCEMENT - BUMPER BAR BRACKET
3 Door / Armature / From: FH030913 		$553.56 1
17B862 LR084154
REINFORCEMENT - BUMPER BAR BRACKET
2 Door Convertible / Armature / From: GH000001 		$593.12 1
17B930 LR031629
BRACKET - BUMPER MOUNTING
RH / To: DH707829 		$40.77 1
17B930 LR031630
BRACKET - BUMPER MOUNTING
LH / To: DH707829 		$40.77 1
17B930 LR042994
BRACKET - BUMPER MOUNTING
RH / From: DH707830 		$40.77 1
17B930 LR042995
BRACKET - BUMPER MOUNTING
LH / From: DH707830 		$40.77 1
17C814 LR026332
BRACKET - BUMPER MOUNTING
RH, Lower / To: CH667801 		$22.89 1
17C814 LR026333
BRACKET - BUMPER MOUNTING
LH, Lower / To: CH667801 		$22.89 1
17C814 LR035106
BRACKET - BUMPER MOUNTING
RH, Lower / From: CH667802 		$22.89 1
17C814 LR035107
BRACKET - BUMPER MOUNTING
LH, Lower / From: CH667802 		$22.89 1
17K826 LR006719
RETAINER - NUT
Nut "U" Spring, 		$1.89 10
19A412A LR026328
COVER - TOWING HOOK
Dual Exh Olet W/Roun Tail Pipe Garn / For The Lh Side Please Order The Whole Bumper, Natural Coloured Plastic, RH Side, Towing Eye 		$56.01 1
19A412B LR026329
COVER - TOWING HOOK
Single Exhaust / For The Lh Side Please Order The Whole Bumper, Natural Coloured Plastic, RH Side, Towing Eye 		$56.01 1
17906 LR026337
BUMPER - REAR
With Automated Parking System / To: CH622600 		$847.96 1
17906 LR034458
BUMPER - REAR
With Automated Parking System / From: CH622601 / To: CH647800 		$1,042.90 1
17906 LR036708
BUMPER - REAR
With Automated Parking System / From: CH647801 / To: DH776654 		$856.40 1
17906 LR048300
BUMPER - REAR
Less Automated Parking System / From: DH776655 / To: EH888104 		$879.49 1
17906 LR048694
BUMPER - REAR
Autom Perpendicular Parking System / From: EH000001 / To: FH999999 		$999.98 1
17906 LR058060
BUMPER - REAR
Less Automated Parking System / From: EH888105 / To: FH999999 		$860.97 1
17906 LR074963
BUMPER - REAR
Autom Perpendicular Parking System, Rear Bmp Lwr Valance - White Silver / From: GH000001 / To: GH094434 		$1,132.43 1
17906 LR086153
BUMPER - REAR
Autom Perpendicular Parking System, Rear Bmp Lwr Valance - Dark Silver / From: GH000001 / To: GH094434 		$1,178.95 1
17906 LR074960
BUMPER - REAR
Less Automated Parking System, Rear Bmp Lwr Valance - Dark Silver / From: GH000001 / To: GH094434 		$1,085.78 1
17906 LR074962
BUMPER - REAR
Less Automated Parking System, Rear Bmp Lower Valance - Anthracite / From: GH000001 / To: GH094434 		$1,132.43 1
17906 LR074964
BUMPER - REAR
Autom Perpendicular Parking System, Rear Bmp Lower Valance - Anthracite / From: GH000001 / To: GH094434 		$1,202.51 1
17906 LR074961
BUMPER - REAR
Less Automated Parking System, Rear Bmp Lwr Valance - White Silver / From: GH000001 / To: GH094434 		$1,132.43 1
17906 LR074960
BUMPER - REAR
Less Automated Parking System, Rear Bmp Lwr Valance - Dark Silver / From: GH094435 		$1,085.78 1
17906 LR074961
BUMPER - REAR
Less Automated Parking System, Rear Bmp Lwr Valance - White Silver / From: GH094435 		$1,132.43 1
17906 LR074962
BUMPER - REAR
Less Automated Parking System, Rear Bmp Lower Valance - Anthracite / From: GH094435 		$1,132.43 1
17906 LR074963
BUMPER - REAR
Autom Perpendicular Parking System, Rear Bmp Lwr Valance - White Silver / From: GH094435 		$1,132.43 1
17906 LR074964
BUMPER - REAR
Autom Perpendicular Parking System, Rear Bmp Lower Valance - Anthracite / From: GH094435 		$1,202.51 1
17906 LR086153
BUMPER - REAR
Autom Perpendicular Parking System, Rear Bmp Lwr Valance - Dark Silver / From: GH094435 		$1,178.95 1
