Front Panels, Aprons & Side Members (Front End) (Changsu (China)) ((V) Fromeg000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Front Panels, Aprons & Side Members (Front End) (Changsu (China)) ((V) FROMEG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG501000 BOLT AND WASHER - HEX.HEAD $1.17 To Order
Photo Part No Description Price (each) Stock
LR005268 BOLT AND WASHER - HEX.HEAD $0.61 To Order
Photo Part No Description Price (each) Stock
LR008026 BOLT $1.17 IN STOCK
Photo Part No Description Price (each) Stock
LR000056 NUT - ANCHOR $0.47 To Order
Photo Part No Description Price (each) Stock
LR042993 REINFORCEMENT - BUMPER SECURING $70.94 To Order
LR042992 REINFORCEMENT - BUMPER SECURING $34.88 To Order
LR074945 REINFORCEMENT - BUMPER SECURING $47.97 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR077389 GUSSET - RADIATOR SUPPORT $29.77 To Order
Photo Part No Description Price (each) Stock
LR048565 FRONT END $561.28 To Order
LR074151 FRONT END $559.35 To Order
LR084610 FRONT END $1,173.84 To Order
View All

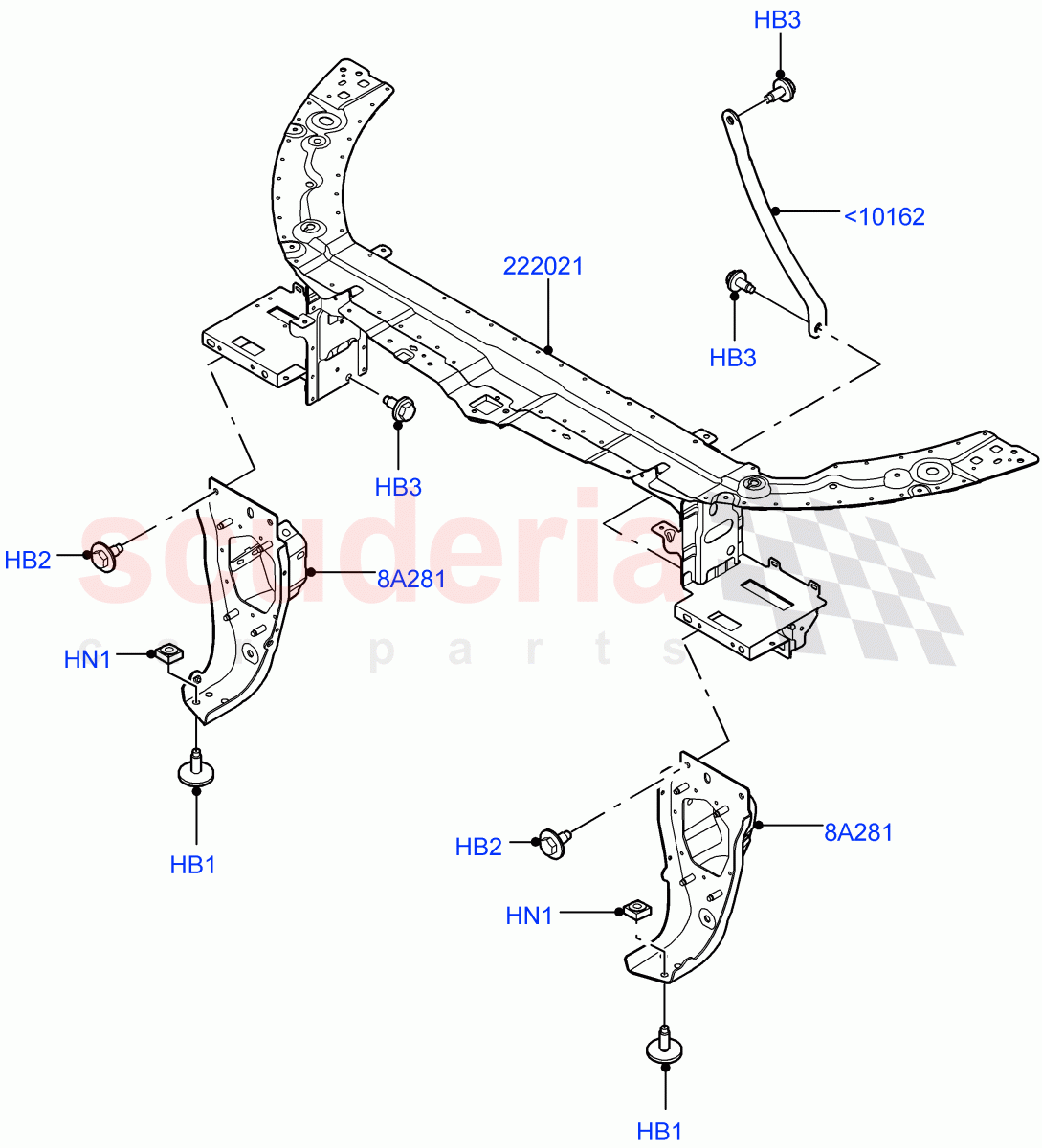

Front Panels, Aprons & Side Members (Front End) (Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<10162 LR077389
GUSSET - RADIATOR SUPPORT
Radiator Support / From: GG134738 		$29.77 1
HB1 RYG501000
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M8 X 21MM, Reinforcement Front Fender - Front / From: EG000001 		$1.17 6
HB2 LR005268
BOLT AND WASHER - HEX.HEAD
Bolt And Washer, M8 X 15MM / From: EG000001 		$0.61 4
HB3 LR008026
BOLT
Bolt And Washer, M8 X 17MM / From: EG000001
IN STOCK 		$1.17 4
HN1 LR000056
NUT - ANCHOR
M8, Must Be Welded / From: EG000001 		$0.47 6
8A281 LR042993
REINFORCEMENT - BUMPER SECURING
LH / From: EG000001 / To: GG132581 		$70.94 1
8A281 LR042992
REINFORCEMENT - BUMPER SECURING
RH / From: EG000001 / To: GG132581 		$34.88 1
8A281 LR074945
REINFORCEMENT - BUMPER SECURING
RH / From: GG132582 / To: GG136556 		$47.97 1
8A281 LR074946
REINFORCEMENT - BUMPER SECURING
LH / From: GG132582 / To: GG136556 		$69.27 1
8A281 LR086116
REINFORCEMENT - BUMPER SECURING
RH / From: GG136557 		$42.26 1
8A281 LR086117
REINFORCEMENT - BUMPER SECURING
LH / From: GG136557 / To: HG161787 		$54.11 1
8A281 LR096770
REINFORCEMENT - BUMPER SECURING
LH / From: HG161788 		$65.12 1
222021 LR048565
FRONT END
From: EG000001 / To: GG134737 		$561.28 1
222021 LR074151
FRONT END
From: GG134738 / To: HG149557 		$559.35 1
222021 LR084610
FRONT END
From: HG149558 		$1,173.84 1
