Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Rear Bumper (Halewood (UK), Front Bumper - Autobiography, Sport/Dynamic)

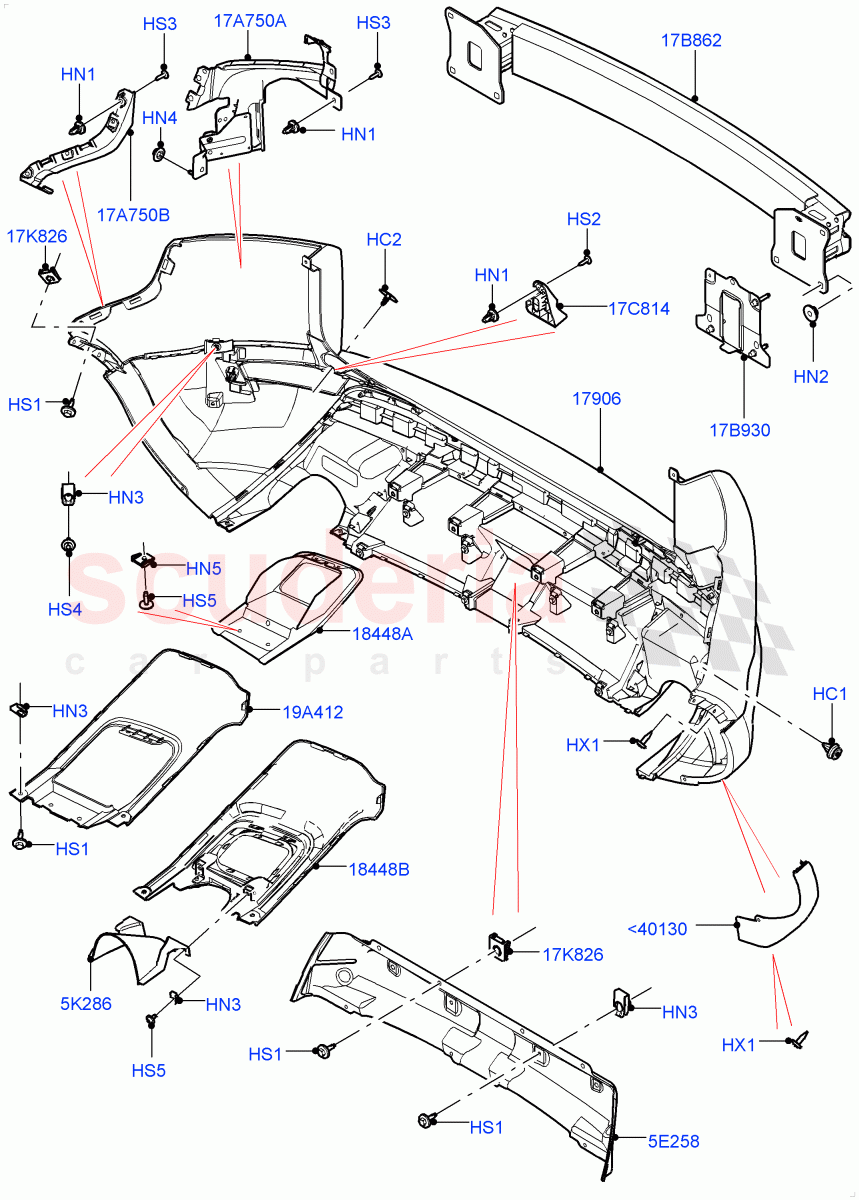

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR027255	CLIP	$4.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RZM500140	CLIP	$1.16	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYH500950	NUT - ADJUSTING	$1.23	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500370	NUT AND WASHER - HEX.	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	$1.63	IN STOCK
	LR000053	NUT - FLANGED	$1.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYH500540	NUT - SPECIAL	$1.24	To Order
	RYH500570	NUT - ADJUSTING	$2.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110279	NUT - FLANGED	$1.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006025	BOLT	$1.39	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR001598	SCREW	$0.67	To Order

Photo	Part No	Description	Price (each)	Stock
	CYP100791	SCREW	$2.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR083229	SCREW	$4.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR083229	SCREW	$4.25	IN STOCK
	LR083229	SCREW	$4.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYQ500070	PIN - RETAINING 6.3 X 22MM	$1.51	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR028863	BUMPER - REAR	$1,000.05	To Order
	LR048692	BUMPER - REAR	$1,085.95	To Order
	LR074965	BUMPER - REAR	$865.37	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR027868	HEAT SHIELD - MUFFLER	$52.54	To Order
	LR048276	HEAT SHIELD - MUFFLER	$77.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112629	HEAT SHIELD - EXHAUST	$32.21	To Order
	LR112630	HEAT SHIELD - EXHAUST	$32.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029080	FINISHER - BUMPER	$48.42	To Order
	LR029079	FINISHER - BUMPER	$48.42	To Order
	LR089860	FINISHER - BUMPER	$43.28	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR026327	REINFORCEMENT - BUMPER BAR BRACKET	$593.12	To Order
	LR044061	REINFORCEMENT - BUMPER BAR BRACKET	$631.53	To Order
	LR066891	REINFORCEMENT - BUMPER BAR BRACKET	$553.56	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR031629	BRACKET - BUMPER MOUNTING	$40.77	To Order
	LR031630	BRACKET - BUMPER MOUNTING	$40.77	To Order
	LR042994	BRACKET - BUMPER MOUNTING	$40.77	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR026332	BRACKET - BUMPER MOUNTING	$22.89	To Order
	LR026333	BRACKET - BUMPER MOUNTING	$22.89	To Order
	LR035106	BRACKET - BUMPER MOUNTING	$22.89	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR006719	RETAINER - NUT	$1.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR027871	FINISHER - EXHAUST	$332.80	To Order
	LR027871	FINISHER - EXHAUST	$332.80	To Order
	LR027872	FINISHER - EXHAUST	$332.80	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR112588	COVER - TOWING HOOK	$837.40	To Order
	LR112184	FINISHER - EXHAUST	$837.40	To Order
	LR112186	FINISHER - EXHAUST	$1,012.47	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR028089	COVER - TOWING HOOK	$96.99	To Order
	LR028087	COVER - TOWING HOOK	$110.73	To Order
	LR028087	COVER - TOWING HOOK	$110.73	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR027979	BRACKET - BUMPER MOUNTING	$214.51	To Order
	LR027980	BRACKET - BUMPER MOUNTING	$214.51	To Order
	LR026330	BRACKET - BUMPER MOUNTING	$28.54	To Order

...and 11 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR026334	BRACKET - BUMPER MOUNTING	$53.19	To Order
	LR026335	BRACKET - BUMPER MOUNTING	$34.28	To Order
	LR035105	BRACKET - BUMPER MOUNTING	$50.06	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<40130	LR029080	FINISHER - BUMPER	LR029080 FINISHER - BUMPER Less Automated Parking System / LH	$48.42	1
<40130	LR029079	FINISHER - BUMPER	LR029079 FINISHER - BUMPER Less Automated Parking System / RH	$48.42	1
<40130	LR089860	FINISHER - BUMPER	LR089860 FINISHER - BUMPER Autom Perpendicular Parking System / LH	$43.28	1
<40130	LR089859	FINISHER - BUMPER	LR089859 FINISHER - BUMPER Autom Perpendicular Parking System / RH	$43.28	1
HC1	LR027255	CLIP IN STOCK	LR027255 CLIP Trim Pin 8 X 2.9 - 3.1 + 2.3 Special Plastic, Wheelarch IN STOCK	$4.16	4
HC2	RZM500140	CLIP IN STOCK	RZM500140 CLIP Trim Pin 12 X 0.8 - 8.4 Nylon IN STOCK	$1.16	2
HN1	RYH500950	NUT - ADJUSTING	RYH500950 NUT - ADJUSTING 4.8 X 8 X 8 X 0.7, Expanding Rivet, Includes Seal	$1.23	16
HN2	RYH500370	NUT AND WASHER - HEX.	RYH500370 NUT AND WASHER - HEX. M8 Hex, Nut And Washer	$0.67	6
HN3	LR000053	NUT - FLANGED IN STOCK	LR000053 NUT - FLANGED U-Nut M6 X 0.8 - 4.0 IN STOCK	$1.63	14
HN3	LR000053	NUT - FLANGED IN STOCK	LR000053 NUT - FLANGED Exhaust, U-Nut M6 X 0.8 - 4.0 / From: JH000001 IN STOCK	$1.63	8
HN4	RYH500540	NUT - SPECIAL	RYH500540 NUT - SPECIAL With Blind Spot Monitoring / M6 / To: DH999999	$1.24	2
HN4	RYH500570	NUT - ADJUSTING	RYH500570 NUT - ADJUSTING Reverse Traffic Detection/CTA/LCMA / M6 / From: EH000001	$2.85	2
HN5	LR110279	NUT - FLANGED	LR110279 NUT - FLANGED Nut "U" Spring,	$1.69	-
HS1	LR006025	BOLT IN STOCK	LR006025 BOLT Bolt And Washer, M6 X 15 Hex IN STOCK	$1.39	18
HS2	LR001598	SCREW	LR001598 SCREW 4.8 X 19MM, Torx	$0.67	4
HS3	CYP100791	SCREW IN STOCK	CYP100791 SCREW M5 IN STOCK	$2.29	12
HS4	LR083229	SCREW IN STOCK	LR083229 SCREW M6 x 18MM IN STOCK	$4.25	2
HS5	LR083229	SCREW IN STOCK	LR083229 SCREW Exhaust Exit Bumper Finisher, M6 X 14MM IN STOCK	$4.25	8
HS5	LR083229	SCREW IN STOCK	LR083229 SCREW Exhaust, Exhaust Exit Bumper Finisher, M6 X 14MM / From: JH000001 IN STOCK	$4.25	8
HX1	RYQ500070	PIN - RETAINING 6.3 X 22MM IN STOCK	RYQ500070 PIN - RETAINING 6.3 X 22MM 6.3 X 22MM, Push Pin IN STOCK	$1.51	4
5E258	LR027868	HEAT SHIELD - MUFFLER	LR027868 HEAT SHIELD - MUFFLER Muffler Heat Shield / From: DH775565	$52.54	1
5E258	LR048276	HEAT SHIELD - MUFFLER	LR048276 HEAT SHIELD - MUFFLER Muffler Heat Shield / To: DH775564	$77.23	1
5K286	LR112629	HEAT SHIELD - EXHAUST	LR112629 HEAT SHIELD - EXHAUST 2.0L I4 High DOHC AJ200 Petrol / LH / From: JH000001	$32.21	1
5K286	LR112630	HEAT SHIELD - EXHAUST	LR112630 HEAT SHIELD - EXHAUST 2.0L I4 High DOHC AJ200 Petrol / RH / From: JH000001	$32.04	1
17A750A	LR027979	BRACKET - BUMPER MOUNTING	LR027979 BRACKET - BUMPER MOUNTING With Blind Spot Monitoring / RH / To: DH999999	$214.51	1
17A750A	LR027980	BRACKET - BUMPER MOUNTING	LR027980 BRACKET - BUMPER MOUNTING With Blind Spot Monitoring / LH / To: DH999999	$214.51	1
17A750A	LR026330	BRACKET - BUMPER MOUNTING	LR026330 BRACKET - BUMPER MOUNTING Less Blind Spot Information System / RH / To: DH999999	$28.54	1
17A750A	LR026331	BRACKET - BUMPER MOUNTING	LR026331 BRACKET - BUMPER MOUNTING Less Blind Spot Information System / LH / To: DH999999	$28.54	1
17A750A	LR048699	BRACKET - BUMPER MOUNTING	LR048699 BRACKET - BUMPER MOUNTING 5 Door, Lane Change Merge Aid / RH / From: EH000001 / To: HH999999	$97.63	1
17A750A	LR048700	BRACKET - BUMPER MOUNTING	LR048700 BRACKET - BUMPER MOUNTING 5 Door, Lane Change Merge Aid / LH / From: EH000001 / To: HH999999	$97.63	1
17A750A	LR048696	BRACKET - BUMPER MOUNTING	LR048696 BRACKET - BUMPER MOUNTING 5 Door, Less Blind Spot Information System / RH / From: EH000001 / To: HH999999	$29.03	1
17A750A	LR048697	BRACKET - BUMPER MOUNTING	LR048697 BRACKET - BUMPER MOUNTING 5 Door, Less Blind Spot Information System / LH / From: EH000001 / To: HH999999	$32.40	1
17A750A	LR069763	BRACKET - BUMPER MOUNTING	LR069763 BRACKET - BUMPER MOUNTING 2 Door Convertible / RH, With Antenna / From: GH000001	$216.51	1
17A750A	LR069764	BRACKET - BUMPER MOUNTING	LR069764 BRACKET - BUMPER MOUNTING 2 Door Convertible / LH, With Antenna / From: GH000001	$216.51	1
17A750A	LR099518	BRACKET - BUMPER MOUNTING	LR099518 BRACKET - BUMPER MOUNTING 5 Door, Lane Change Merge Aid / RH / From: JH000001	$119.33	1
17A750A	LR099520	BRACKET - BUMPER MOUNTING	LR099520 BRACKET - BUMPER MOUNTING 5 Door, Lane Change Merge Aid / LH / From: JH000001	$119.33	1
17A750A	LR099649	BRACKET - BUMPER MOUNTING	LR099649 BRACKET - BUMPER MOUNTING 3 Door, Less Blind Spot Information System / LH / From: JH000001	$27.67	1
17A750A	LR099648	BRACKET - BUMPER MOUNTING	LR099648 BRACKET - BUMPER MOUNTING 3 Door, Less Blind Spot Information System / RH / From: JH000001	$27.67	1
17A750B	LR026334	BRACKET - BUMPER MOUNTING	LR026334 BRACKET - BUMPER MOUNTING RH / To: CH615300	$53.19	1
17A750B	LR026335	BRACKET - BUMPER MOUNTING	LR026335 BRACKET - BUMPER MOUNTING LH / To: CH615300	$34.28	1
17A750B	LR035105	BRACKET - BUMPER MOUNTING	LR035105 BRACKET - BUMPER MOUNTING LH / From: CH615301	$50.06	1
17A750B	LR035104	BRACKET - BUMPER MOUNTING	LR035104 BRACKET - BUMPER MOUNTING RH / From: CH615301	$50.06	1
17B862	LR026327	REINFORCEMENT - BUMPER BAR BRACKET	LR026327 REINFORCEMENT - BUMPER BAR BRACKET Armature / To: DH715024	$593.12	1
17B862	LR044061	REINFORCEMENT - BUMPER BAR BRACKET	LR044061 REINFORCEMENT - BUMPER BAR BRACKET Armature / From: DH715025 / To: FH030912	$631.53	1
17B862	LR066891	REINFORCEMENT - BUMPER BAR BRACKET	LR066891 REINFORCEMENT - BUMPER BAR BRACKET 3 Door / Armature / From: FH030913	$553.56	1
17B862	LR084154	REINFORCEMENT - BUMPER BAR BRACKET	LR084154 REINFORCEMENT - BUMPER BAR BRACKET 2 Door Convertible / Armature / From: GH000001	$593.12	1
17B930	LR031629	BRACKET - BUMPER MOUNTING	LR031629 BRACKET - BUMPER MOUNTING RH / To: DH707829	$40.77	1
17B930	LR031630	BRACKET - BUMPER MOUNTING	LR031630 BRACKET - BUMPER MOUNTING LH / To: DH707829	$40.77	1
17B930	LR042994	BRACKET - BUMPER MOUNTING	LR042994 BRACKET - BUMPER MOUNTING RH / From: DH707830	$40.77	1
17B930	LR042995	BRACKET - BUMPER MOUNTING	LR042995 BRACKET - BUMPER MOUNTING LH / From: DH707830	$40.77	1
17C814	LR026332	BRACKET - BUMPER MOUNTING	LR026332 BRACKET - BUMPER MOUNTING RH, Lower / To: CH667801	$22.89	1
17C814	LR026333	BRACKET - BUMPER MOUNTING	LR026333 BRACKET - BUMPER MOUNTING LH, Lower / To: CH667801	$22.89	1
17C814	LR035106	BRACKET - BUMPER MOUNTING	LR035106 BRACKET - BUMPER MOUNTING RH, Lower / From: CH667802	$22.89	1
17C814	LR035107	BRACKET - BUMPER MOUNTING	LR035107 BRACKET - BUMPER MOUNTING LH, Lower / From: CH667802	$22.89	1
17K826	LR006719	RETAINER - NUT	LR006719 RETAINER - NUT Nut "U" Spring,	$1.89	-
19A412	LR028089	COVER - TOWING HOOK	LR028089 COVER - TOWING HOOK LH, Primed / To: HH999999	$96.99	1
19A412	LR028087	COVER - TOWING HOOK	LR028087 COVER - TOWING HOOK RH, Primed, Towing Eye / To: HH999999	$110.73	1
19A412	LR028087	COVER - TOWING HOOK	LR028087 COVER - TOWING HOOK 2.0L I4 DSL MID DOHC AJ200 / RH, Primed, Towing Eye / From: JH000001	$110.73	1
19A412	LR028089	COVER - TOWING HOOK	LR028089 COVER - TOWING HOOK 2.0L I4 DSL MID DOHC AJ200 / LH, Primed / From: JH000001	$96.99	1
17906	LR028863	BUMPER - REAR	LR028863 BUMPER - REAR Less Automated Parking System, Sport/Dynamic / To: DH763950	$1,000.05	1
17906	LR048692	BUMPER - REAR	LR048692 BUMPER - REAR Autom Perpendicular Parking System, Less Sales Badge, Sport/Dynamic / From: EH000001 / To: FH999999	$1,085.95	1
17906	LR074965	BUMPER - REAR	LR074965 BUMPER - REAR Fog Lamp Bezel - Brunel Blade, Less Automated Parking System, Less Sales Badge, Sport/Dynamic / From: GH000001	$865.37	1
17906	LR074966	BUMPER - REAR	LR074966 BUMPER - REAR Autom Perpendicular Parking System, Less Sales Badge, Sport/Dynamic, With Black Fog Lamp Bezel / From: GH000001 / To: GH999999	$904.09	1
17906	LR088360	BUMPER - REAR	LR088360 BUMPER - REAR Less Automated Parking System, Less Sales Badge, Sport/Dynamic / From: FH678913 / To: FH999999	$945.92	1
17906	LR048301	BUMPER - REAR	LR048301 BUMPER - REAR Less Automated Parking System, Sport/Dynamic / From: DH763951 / To: EH856695	$887.16	1
17906	LR058059	BUMPER - REAR	LR058059 BUMPER - REAR Less Automated Parking System, Less Sales Badge, Sport/Dynamic / From: EH856696 / To: FH678912	$945.92	1
17906	LR059637	BUMPER - REAR	LR059637 BUMPER - REAR Autobiography Sales Badge, Front Bumper - Autobiography, Less Automated Parking System / From: FH000001	$899.91	1
17906	LR059638	BUMPER - REAR	LR059638 BUMPER - REAR Autobiography Sales Badge, Autom Perpendicular Parking System, Front Bumper - Autobiography / From: FH000001	$896.42	1
17906	LR117148	BUMPER - REAR	LR117148 BUMPER - REAR Fog Lamp Bzl - Atlas Autobiography, Less Automated Parking System, Sport/Dynamic / From: GH000001	$1,009.51	1
17906	LR117149	BUMPER - REAR	LR117149 BUMPER - REAR Autom Perpendicular Parking System, Fog Lamp Bzl - Atlas Autobiography, Sport/Dynamic / From: GH000001	$1,009.51	1
17906	LR088361	BUMPER - REAR	LR088361 BUMPER - REAR Autom Perpendicular Parking System, Sport/Dynamic, With Black Fog Lamp Bezel / From: HH000001	$1,085.95	1
18448A	LR027871	FINISHER - EXHAUST	LR027871 FINISHER - EXHAUST Rear Bumper Guards - Silver / RH, Exhaust / To: HH999999	$332.80	1
18448A	LR027871	FINISHER - EXHAUST	LR027871 FINISHER - EXHAUST 2.0L I4 Mid AJ200 Petrol E100, Tow Eye Cover - Carpathian Grey / RH, Exhaust / From: JH000001	$332.80	1
18448A	LR027872	FINISHER - EXHAUST	LR027872 FINISHER - EXHAUST Rear Bumper Guards - Silver / LH, Exhaust / To: HH999999	$332.80	1
18448A	LR027872	FINISHER - EXHAUST	LR027872 FINISHER - EXHAUST 2.0L I4 Mid AJ200 Petrol E100, Tow Eye Cover - Carpathian Grey / LH, Exhaust / From: JH000001	$332.80	1
18448A	LR088966	COVER - TOWING HOOK	LR088966 COVER - TOWING HOOK Rear Bumper Guards-Satin Dark Grey / LH, Exhaust / From: HH000001 / To: HH999999	$1,002.60	1
18448A	LR088966	COVER - TOWING HOOK	LR088966 COVER - TOWING HOOK 2.0L I4 DSL MID DOHC AJ200, Tow Eye Cover - Satin Dorchester / LH, Exhaust / From: JH000001 / To: JH305980	$1,002.60	1
18448A	LR088822	COVER - TOWING HOOK	LR088822 COVER - TOWING HOOK Rear Bumper Guards-Satin Dark Grey / RH, Exhaust / From: HH000001 / To: HH999999	$1,689.29	1
18448A	LR088822	COVER - TOWING HOOK	LR088822 COVER - TOWING HOOK 2.0L I4 DSL MID DOHC AJ200, Tow Eye Cover - Satin Dorchester / RH, Exhaust / From: JH000001 / To: JH308571	$1,689.29	1
18448A	LR109897	COVER - TOWING HOOK	LR109897 COVER - TOWING HOOK 2.0L I4 DSL HIGH DOHC AJ200, Dual Exh Olet W/Squa Tail Pipe Garn, Tow Eye Cover - Satin Dorchester / LH, Exhaust / From: JH305981	$1,548.75	1
18448A	LR109898	COVER - TOWING HOOK	LR109898 COVER - TOWING HOOK 2.0L I4 DSL HIGH DOHC AJ200, Dual Exh Olet W/Squa Tail Pipe Garn, Tow Eye Cover - Satin Dorchester / RH, Exhaust / From: JH308572	$1,608.88	1
18448B	LR112588	COVER - TOWING HOOK	LR112588 COVER - TOWING HOOK 2.0L I4 High DOHC AJ200 Petrol, Tow Eye Cover - Carpathian Grey / RH, Exhaust Finisher With Valance, Primed / From: JH000001 / To: JH321904	$837.40	1
18448B	LR112184	FINISHER - EXHAUST	LR112184 FINISHER - EXHAUST 2.0L I4 High DOHC AJ200 Petrol, Tow Eye Cover - Black / RH, Exhaust Finisher With Valance / From: JH000001	$837.40	1
18448B	LR112186	FINISHER - EXHAUST	LR112186 FINISHER - EXHAUST 2.0L I4 Mid DOHC AJ200 Petrol, Tow Eye Cover - Satin Dorchester / RH, Exhaust Finisher With Valance / From: JH000001	$1,012.47	1
18448B	LR112185	FINISHER - EXHAUST	LR112185 FINISHER - EXHAUST 2.0L I4 Mid DOHC AJ200 Petrol, Tow Eye Cover - Satin Dorchester / LH, Exhaust Finisher With Valance / From: JH000001	$928.73	1
18448B	LR112183	FINISHER - EXHAUST	LR112183 FINISHER - EXHAUST 2.0L I4 High DOHC AJ200 Petrol, Tow Eye Cover - Black / LH, Exhaust Finisher With Valance / From: JH000001	$768.11	1
18448B	LR112589	PANEL - VALANCE	LR112589 PANEL - VALANCE 2.0L I4 High DOHC AJ200 Petrol, Tow Eye Cover - Carpathian Grey / LH, Exhaust Finisher With Valance, Primed / From: JH000001 / To: JH321904	$768.11	1
18448B	LR122605	PANEL - VALANCE	LR122605 PANEL - VALANCE 2.0L I4 High DOHC AJ200 Petrol, Tow Eye Cover - Carpathian Grey / LH, Exhaust Finisher With Valance, Primed / From: JH321905	$768.11	1
18448B	LR122604	COVER - TOWING HOOK	LR122604 COVER - TOWING HOOK 2.0L I4 High DOHC AJ200 Petrol, Tow Eye Cover - Carpathian Grey / RH, Exhaust Finisher With Valance, Primed / From: JH321905	$837.40	1
