Name: Rear Door Lock Controls (5 Door, Itatiaia (Brazil)) ((V) FROMGT000001)
Rating: 4.9 (1 reviews)

Rear Door Lock Controls (5 Door, Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Diesel] - Rear Door Lock Controls (5 Door, Itatiaia (Brazil)) ((V) FROMGT000001)

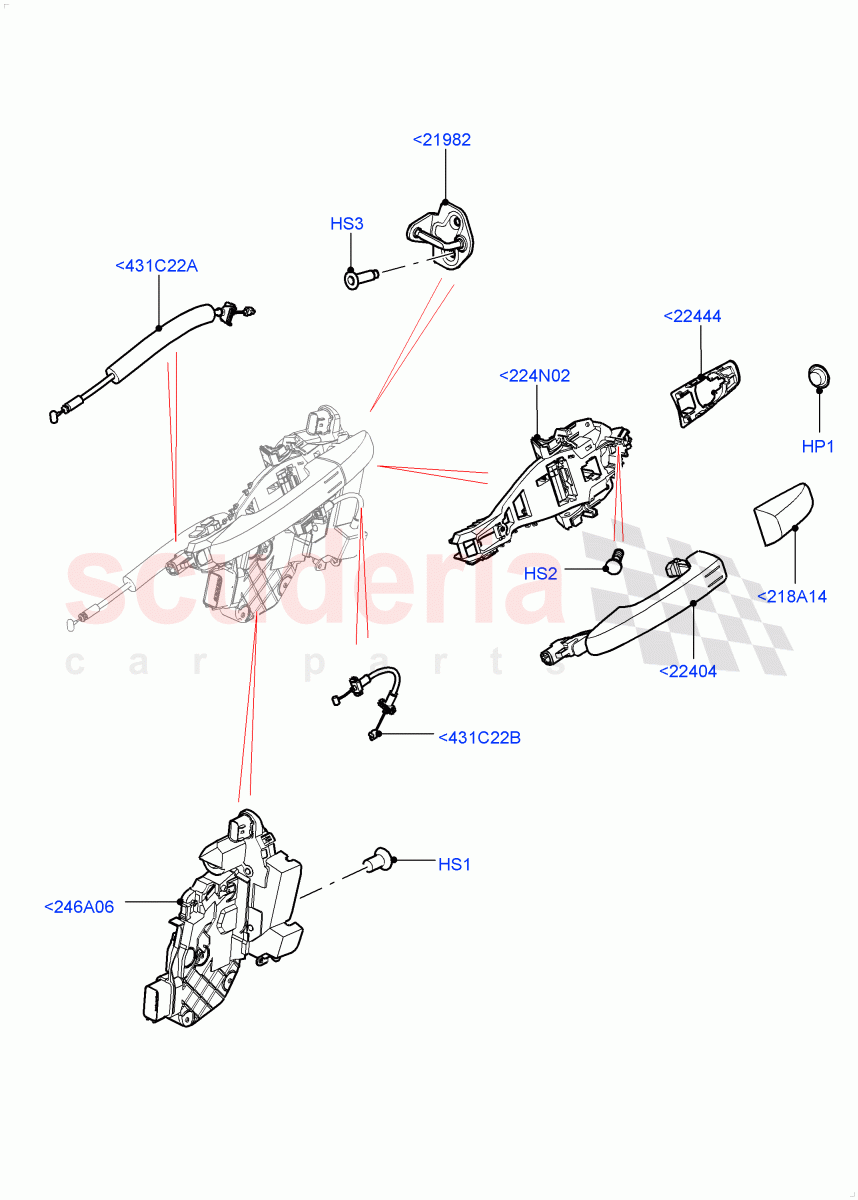

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR000804	PLUG	$2.01	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP500010	SCREW	$2.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYP500700	SCREW	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	FYP500020	SCREW	$0.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000565	STRIKER - DOOR LOCKING MECHANISM	$21.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR055917	HANDLE - DOOR - OUTER	$194.00	To Order
	LR072371	HANDLE - DOOR - OUTER	$160.30	To Order
	LR061200	HANDLE - DOOR - OUTER	$211.55	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR034461	GASKET - DOOR HANDLE	$5.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025406	CAP - HANDLE	$27.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078757	REINFORCEMENT	$39.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072414	LATCH - REAR DOOR	$240.48	To Order
	LR071650	LATCH - REAR DOOR	$240.48	To Order
	LR077828	LATCH - REAR DOOR	$268.35	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR079197	Cable	$14.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025546	CABLE - DOOR LATCH	$11.34	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<218A14	LR025406	CAP - HANDLE	LR025406 CAP - HANDLE Primed, RH/LH / From: GT000001	$27.74	1
<224N02	LR078757	REINFORCEMENT	LR078757 REINFORCEMENT RH/LH / From: GT000001	$39.82	2
<246A06	LR072414	LATCH - REAR DOOR	LR072414 LATCH - REAR DOOR Double Locking Power Lock Latch, With Keyless Start / RH / From: GT000001	$240.48	1
<246A06	LR071650	LATCH - REAR DOOR	LR071650 LATCH - REAR DOOR Double Locking Power Lock Latch, With Keyless Start / LH / From: GT000001	$240.48	1
<246A06	LR077828	LATCH - REAR DOOR	LR077828 LATCH - REAR DOOR Double Locking Power Lock Latch, Keyless Entry/Start - Passive / RH / From: GT000001	$268.35	1
<246A06	LR077829	LATCH - REAR DOOR	LR077829 LATCH - REAR DOOR Central Locking Power Lock Latch, Keyless Entry/Start - Passive / RH / From: GT000001	$292.95	1
<246A06	LR077830	LATCH - REAR DOOR	LR077830 LATCH - REAR DOOR Central Locking Power Lock Latch, With Keyless Start / RH / From: GT000001	$202.05	1
<246A06	LR077831	LATCH - REAR DOOR	LR077831 LATCH - REAR DOOR Double Locking Power Lock Latch, Keyless Entry/Start - Passive / LH / From: GT000001	$280.94	1
<246A06	LR077832	LATCH - REAR DOOR	LR077832 LATCH - REAR DOOR Central Locking Power Lock Latch, Keyless Entry/Start - Passive / LH / From: GT000001	$246.94	1
<246A06	LR077833	LATCH - REAR DOOR	LR077833 LATCH - REAR DOOR Central Locking Power Lock Latch, With Keyless Start / LH / From: GT000001	$216.32	1
<431C22A	LR079197	Cable	LR079197 Cable Door Release Control, Internal, RH/LH / From: GT000001	$14.60	1
<431C22B	LR025546	CABLE - DOOR LATCH	LR025546 CABLE - DOOR LATCH Door Release Control, External, RH/LH / From: GT000001	$11.34	1
<21982	LR000565	STRIKER - DOOR LOCKING MECHANISM	LR000565 STRIKER - DOOR LOCKING MECHANISM From: GT000001	$21.10	2
<22404	LR055917	HANDLE - DOOR - OUTER	LR055917 HANDLE - DOOR - OUTER Bts Racing Green/Aintree Green(1AL), Keyless Entry/Start - Passive, With Chrome Exterior Door Handle / RH/LH / From: GT000001	$194.00	4
<22404	LR072371	HANDLE - DOOR - OUTER	LR072371 HANDLE - DOOR - OUTER Glacier White/Yulong White (1AQ), Keyless Entry/Start - Passive, With Chrome Exterior Door Handle / RH/LH / From: GT000001	$160.30	4
<22404	LR061200	HANDLE - DOOR - OUTER	LR061200 HANDLE - DOOR - OUTER Keyless Entry/Start - Passive / Primed, RH/LH / From: GT000001	$211.55	4
<22404	LR061201	HANDLE - DOOR - OUTER	LR061201 HANDLE - DOOR - OUTER With Keyless Start / Primed, RH/LH / From: GT000001	$128.83	4
<22404	LR055913	HANDLE - DOOR - OUTER	LR055913 HANDLE - DOOR - OUTER Keyless Entry/Start - Passive, Quartzite/Kaikoura Stone (1AP), With Chrome Exterior Door Handle / RH/LH / From: GT000001	$246.74	4
<22404	LR046326	HANDLE - DOOR - OUTER	LR046326 HANDLE - DOOR - OUTER Dark Sapphire Blue/Loire Blue (1AM), Keyless Entry/Start - Passive, With Chrome Exterior Door Handle / RH/LH / From: GT000001	$147.33	4
<22404	LR046327	HANDLE - DOOR - OUTER	LR046327 HANDLE - DOOR - OUTER Keyless Entry/Start - Passive, Seraphinite/Scotia Grey (1BC), With Chrome Exterior Door Handle / RH/LH / From: GT000001	$167.68	4
<22404	LR055920	HANDLE - DOOR - OUTER	LR055920 HANDLE - DOOR - OUTER Keyless Entry/Start - Passive, Rhodium Silver/Indus Silver (1AC), With Chrome Exterior Door Handle / RH/LH / From: GT000001	$200.34	4
<22444	LR034461	GASKET - DOOR HANDLE	LR034461 GASKET - DOOR HANDLE RH/LH / From: GT000001	$5.16	2
HP1	LR000804	PLUG	LR000804 PLUG 10 X 0.75 X 1.0 / From: GT000001	$2.01	4
HS1	FYP500010	SCREW IN STOCK	FYP500010 SCREW M6 x 12MM / From: GT000001 IN STOCK	$2.29	6
HS2	RYP500700	SCREW	RYP500700 SCREW M5 X 12MM, Torx / From: GT000001	$0.65	2
HS3	FYP500020	SCREW	FYP500020 SCREW M8 X 25MM / From: GT000001	$0.52	4
