Name: Engine Harness (Nitra Plant Build) (3.0L AJ20D6 Diesel High, Electric Engine Battery-MHEV) ((V) FROMM2000001)
Rating: 5.0 (1 reviews)

Engine Harness (Nitra Plant Build) (3.0L AJ20D6 Diesel High, Electric Engine Battery-MHEV) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Engine Harness (Nitra Plant Build) (3.0L AJ20D6 Diesel High, Electric Engine Battery-MHEV) ((V)...

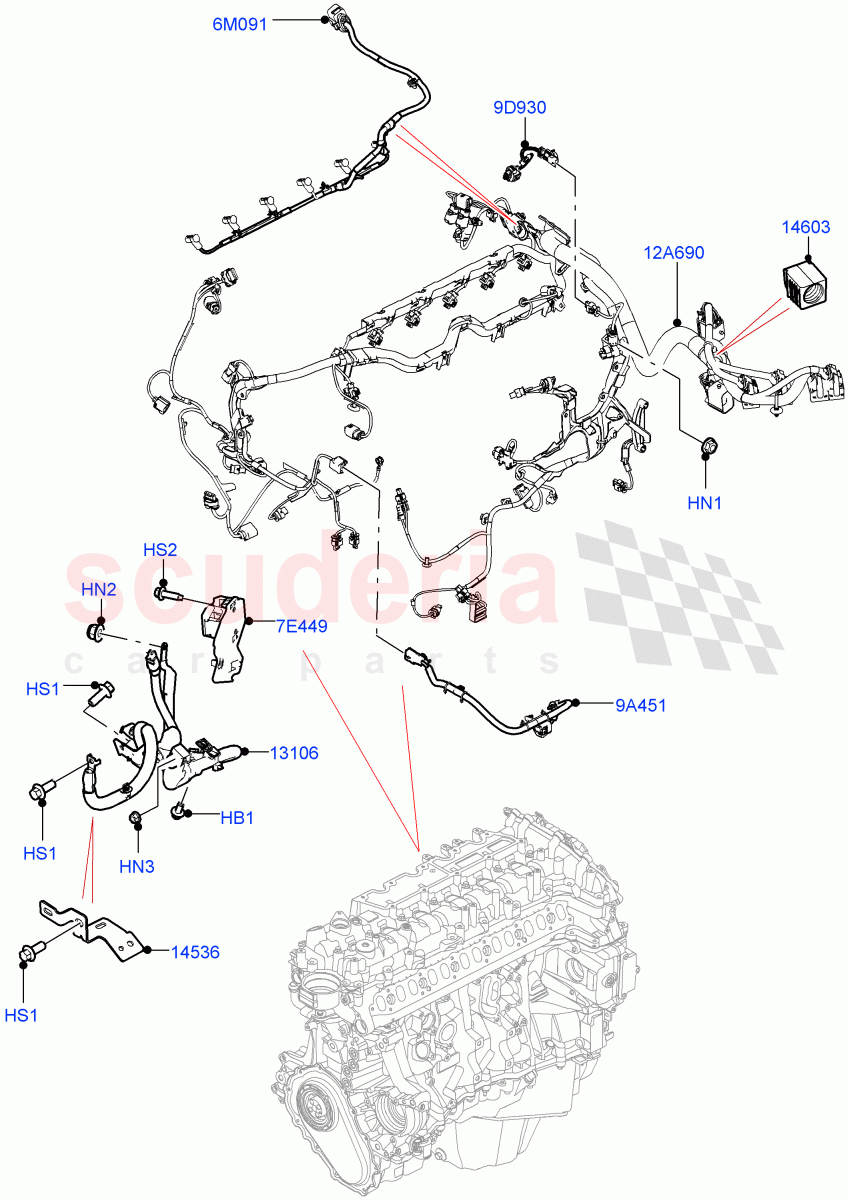

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS106126	BOLT	$0.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR087242	NUT - HEX.	$1.46	To Order

Photo	Part No	Description	Price (each)	Stock
	FY108046	NUT M8 FLANGED HEX HEAD	$1.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR122999	NUT - HEX.	$3.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124564	SCREW	$2.22	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	$3.44	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR149209	WIRE - ALTERNATOR	$138.77	To Order
	LR170962	WIRE - ALTERNATOR	$99.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR140118	BRACKET - WIRING	$9.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141820	PLUG - BLANKING	$5.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125536	WIRE - GLOW PLUG	$105.84	To Order
	LR157219	WIRE - GLOW PLUG	$102.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085666	TERMINAL - BATTERY	$106.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128783	WIRE - SOLENOID	$58.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125612	WIRE - FUEL PRESSURE SENSOR	$87.87	To Order
	LR157235	WIRE - FUEL PRESSURE SENSOR	$73.98	To Order
	LR171955	WIRE	$86.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125613	WIRING - ENGINE	$1,203.41	To Order
	LR157228	WIRING - ENGINE	$1,042.18	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS106126	BOLT IN STOCK	FS106126 BOLT Hexagonal Head, M6 x 12MM / From: M2000001 IN STOCK	$0.52	1
HN1	LR087242	NUT - HEX.	LR087242 NUT - HEX. M6 / From: M2000001	$1.46	1
HN2	FY108046	NUT M8 FLANGED HEX HEAD IN STOCK	FY108046 NUT M8 FLANGED HEX HEAD M8 / From: M2000001 IN STOCK	$1.11	1
HN3	LR122999	NUT - HEX.	LR122999 NUT - HEX. M8 / From: M2000001	$3.02	1
HS1	LR124564	SCREW	LR124564 SCREW Hexagonal Head, M8 X 20MM, Taptite / From: M2000001	$2.22	3
HS2	RYG500220	SCREW IN STOCK	RYG500220 SCREW Hexagonal Head, M6 X 20MM / From: M2000001 IN STOCK	$3.44	2
6M091	LR125536	WIRE - GLOW PLUG	LR125536 WIRE - GLOW PLUG From: M2000001 / To: M2451664	$105.84	1
6M091	LR157219	WIRE - GLOW PLUG	LR157219 WIRE - GLOW PLUG From: M2451665	$102.33	1
7E449	LR085666	TERMINAL - BATTERY	LR085666 TERMINAL - BATTERY Battery Cables / From: M2000001	$106.54	1
9A451	LR128783	WIRE - SOLENOID	LR128783 WIRE - SOLENOID Belt Integrated Starter Generator, Link / From: M2000001	$58.73	1
9D930	LR125612	WIRE - FUEL PRESSURE SENSOR	LR125612 WIRE - FUEL PRESSURE SENSOR From: M2000001 / To: M2451664	$87.87	1
9D930	LR157235	WIRE - FUEL PRESSURE SENSOR	LR157235 WIRE - FUEL PRESSURE SENSOR From: M2451665 / To: N2464266	$73.98	1
9D930	LR171955	WIRE	LR171955 WIRE From: N2464267	$86.56	1
12A690	LR125613	WIRING - ENGINE	LR125613 WIRING - ENGINE From: M2000001 / To: M2451548	$1,203.41	1
12A690	LR157228	WIRING - ENGINE	LR157228 WIRING - ENGINE From: M2451549	$1,042.18	1
13106	LR149209	WIRE - ALTERNATOR	LR149209 WIRE - ALTERNATOR Starter Motor / From: M2000001 / To: N2999999	$138.77	1
13106	LR170962	WIRE - ALTERNATOR	LR170962 WIRE - ALTERNATOR Starter Motor / From: P2000001	$99.90	1
14536	LR140118	BRACKET - WIRING	LR140118 BRACKET - WIRING Starter Motor Wiring / From: M2000001	$9.97	1
14603	LR141820	PLUG - BLANKING	LR141820 PLUG - BLANKING Engine Harness / From: M2000001	$5.38	1
