Vehicle Modules And Sensors (Solihull Plant Build) ((V) Fromha000001)

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Vehicle Modules And Sensors (Solihull Plant Build) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYQ500040 FASTENER $0.63 IN STOCK
Photo Part No Description Price (each) Stock
RYH500540 NUT - SPECIAL $1.25 To Order
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. $0.70 IN STOCK
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.48 IN STOCK
Photo Part No Description Price (each) Stock
LR008793 SCREW $0.99 To Order
Photo Part No Description Price (each) Stock
LR129198 SCREW $0.99 To Order
Photo Part No Description Price (each) Stock
LR049976 SPEAKER $137.55 To Order
Photo Part No Description Price (each) Stock
LR081431 SENSOR - AIR CONDITIONER SUN LOAD $66.81 To Order
LR086370 SENSOR - AIR CONDITIONER SUN LOAD $69.27 To Order
Photo Part No Description Price (each) Stock
LR081506 BOX - FUSE $672.13 To Order
475123464 BOX - FUSE $657.29 To Order
LR123902 BOX - FUSE $605.67 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR082106 BRACKET - INSTRUMENT PANEL $94.09 To Order
LR082108 BRACKET - INSTRUMENT PANEL $69.81 To Order
Photo Part No Description Price (each) Stock
LR149763 BRACKET - CONTROL MODULE $38.78 To Order
Photo Part No Description Price (each) Stock
LR082223 SENSOR - PARKING AID SYSTEM $905.30 To Order
LR099525 SENSOR - BLIND SPOT MONITORING $925.51 To Order
LR113194 SENSOR - BLIND SPOT MONITORING $801.39 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR079623 MODULE - BATTERY $318.17 To Order
Photo Part No Description Price (each) Stock
LR098321 SENSOR - DOOR $66.07 To Order
LR098327 SENSOR - DOOR $63.04 To Order
Photo Part No Description Price (each) Stock
LR058011 SENSOR - CLIMATE CONTROL SYSTEM $143.07 To Order
Photo Part No Description Price (each) Stock
LR083315 MODULE - WINDSHIELD RAIN SENSOR $204.20 To Order
LR083313 MODULE - WINDSHIELD RAIN SENSOR $196.14 To Order
LR112879 MODULE - WINDSHIELD RAIN SENSOR $217.36 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR093609 HEATER CONTROL $386.71 To Order
LR126758 HEATER CONTROL $409.38 To Order
Photo Part No Description Price (each) Stock
LR085668 SHIELD - BLIND SPOT RADAR $294.98 To Order
Photo Part No Description Price (each) Stock
LR081509 MODULE - BODY CONTROL $296.40 To Order
Photo Part No Description Price (each) Stock
LR095386 MODULE - BODY CONTROL $359.66 To Order
Photo Part No Description Price (each) Stock
LR081398 CONTROL - POWER TAILGATE $177.30 To Order
LR081398 CONTROL - POWER TAILGATE $177.30 To Order
Photo Part No Description Price (each) Stock
LR081397 CONTROL - POWER TAILGATE $167.43 To Order
View All

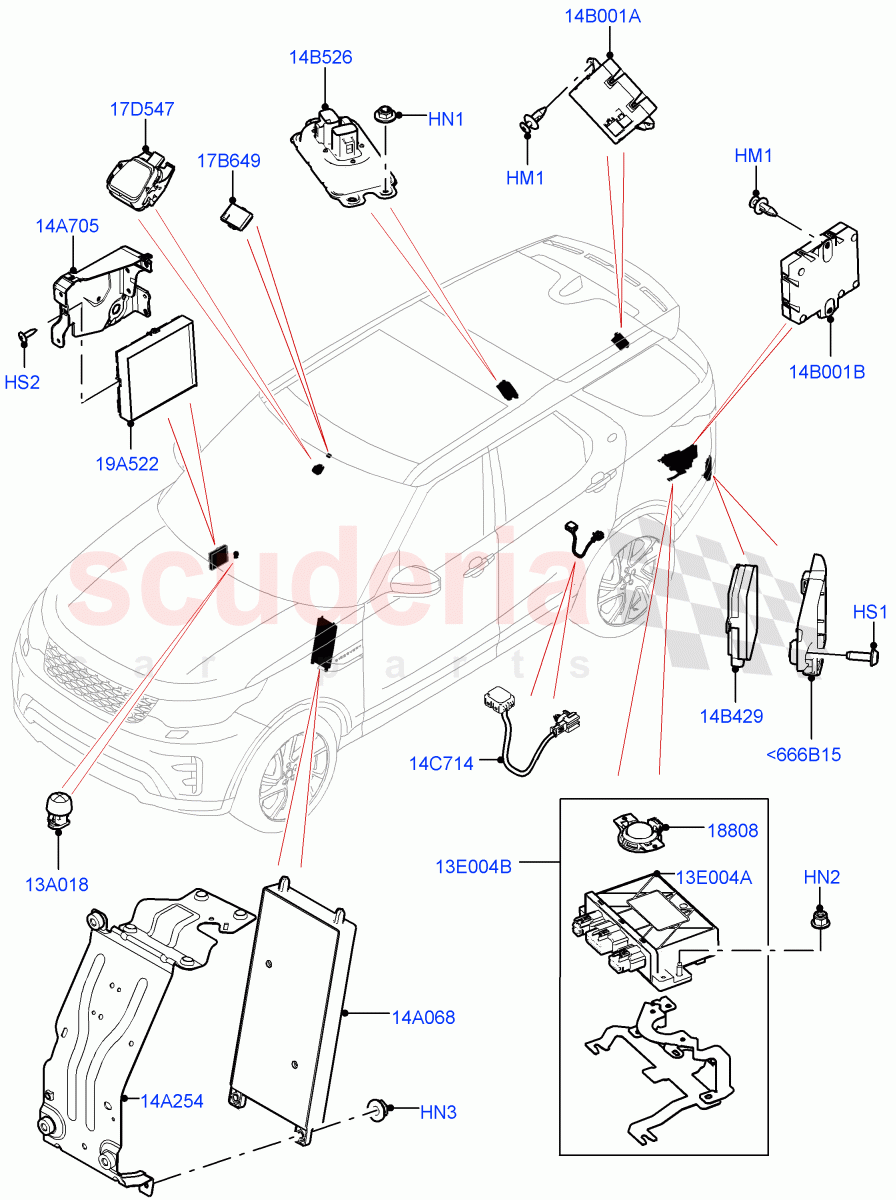

Vehicle Modules And Sensors (Solihull Plant Build) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<666B15 LR085668
SHIELD - BLIND SPOT RADAR
RH And LH, Sensor - Blind Spot Monitor 		$294.98 2
HM1 RYQ500040
FASTENER
6.25 x 1.6/6MM
IN STOCK 		$0.63 2
HN1 RYH500540
NUT - SPECIAL
Starter - Stop/Start System / M6 		$1.25 3
HN2 FY106046
NUT - HEX.
Tow Hitch Elec Deployable Swan Neck / Hexagonal Head, M6
IN STOCK 		$0.70 4
HN3 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.48 2
HS1 LR008793
SCREW
M5 X 16MM, Torx 		$0.99 2
HS2 LR129198
SCREW
Hexagonal Head, M5 x 16mm 		$0.99 4
13A018 LR081431
SENSOR - AIR CONDITIONER SUN LOAD
With Manual Air Conditioning / Sun Load Sensor 		$66.81 1
13A018 LR086370
SENSOR - AIR CONDITIONER SUN LOAD
Premium Air Conditioning-Front/Rear / Sun Load Sensor 		$69.27 1
13E004A LR081509
MODULE - BODY CONTROL
Tow Hitch Elec Deployable Swan Neck 		$296.40 1
13E004B LR095386
MODULE - BODY CONTROL
Tow Hitch Elec Deployable Swan Neck / Assembly 		$359.66 1
14A068 LR081506
BOX - FUSE
To: HA047421 		$672.13 1
14A068 475123464
BOX - FUSE
From: HA047422 / To: HA989991 		$657.29 1
14A068 LR123902
BOX - FUSE
From: HA989992 / To: HA999999 		$605.67 1
14A068 LR110263
MODULE - BODY CONTROL
From: JA000001 / To: JA079309 		$675.51 1
14A068 LR122404
MODULE - BODY CONTROL
From: JA079310 / To: KA084006 		$1,220.75 1
14A068 475123465
MODULE - BODY CONTROL
From: KA084007 		$737.10 1
14A254 LR082106
BRACKET - INSTRUMENT PANEL
LHD 		$94.09 1
14A254 LR082108
BRACKET - INSTRUMENT PANEL
RHD 		$69.81 1
14A705 LR149763
BRACKET - CONTROL MODULE
Hidden Central IP Stowage, RHD 		$38.78 1
14B001A LR081398
CONTROL - POWER TAILGATE
Tailgate - Hands Free / Upper / To: JA999999 		$177.30 1
14B001A LR081398
CONTROL - POWER TAILGATE
Tailgate-Powered Upper / Upper / From: KA000001 		$177.30 1
14B001B LR081397
CONTROL - POWER TAILGATE
Inner Tailgate - Powered / Lower 		$167.43 1
14B429 LR082223
SENSOR - PARKING AID SYSTEM
Blind Spot Monit/CVS/RTD/Side Swipe / To: HA999999 		$905.30 2
14B429 LR099525
SENSOR - BLIND SPOT MONITORING
Blind Spot Monit/CVS/RTD/Side Swipe / From: JA000001 / To: JA065974 		$925.51 2
14B429 LR113194
SENSOR - BLIND SPOT MONITORING
Blind Spot Assist, Less Reverse Traffic Detection / From: KA000001 		$801.39 2
14B429 LR123894
SENSOR - BLIND SPOT MONITORING
Reverse Traffic Detection/CTA/LCMA / From: JA065975 / To: JA999999 		$920.96 2
14B526 LR079623
MODULE - BATTERY
Starter - Stop/Start System / Voltage Quality Module 		$318.17 1
14C714 LR098321
SENSOR - DOOR
Clear Exit Detection / RH / From: KA000001 		$66.07 1
14C714 LR098327
SENSOR - DOOR
Clear Exit Detection / LH / From: KA000001 		$63.04 1
17B649 LR058011
SENSOR - CLIMATE CONTROL SYSTEM
Humidity Sensor, Located Near Rear View Mirror 		$143.07 1
17D547 LR083315
MODULE - WINDSHIELD RAIN SENSOR
Less Head Up Display / Located In Rear View Mirror Cover / To: HA999999 		$204.20 1
17D547 LR083313
MODULE - WINDSHIELD RAIN SENSOR
Head Up Display / Located In Rear View Mirror Cover / To: HA999999 		$196.14 1
17D547 LR112879
MODULE - WINDSHIELD RAIN SENSOR
Head Up Display / Located In Rear View Mirror Cover / From: JA000001 / To: KA999999 		$217.36 1
17D547 LR112878
MODULE - WINDSHIELD RAIN SENSOR
Less Head Up Display / Located In Rear View Mirror Cover / From: JA000001 / To: KA999999 		$209.34 1
17D547 LR137198
MODULE - WINDSHIELD RAIN SENSOR
Less Head Up Display / Located In Rear View Mirror Cover / From: LA000001 		$221.26 1
17D547 LR137199
MODULE - WINDSHIELD RAIN SENSOR
Head Up Display / Located In Rear View Mirror Cover / From: LA000001 		$222.80 1
19A522 LR093609
HEATER CONTROL
Hidden Central IP Stowage / To: KA096384 		$386.71 1
19A522 LR126758
HEATER CONTROL
Hidden Central IP Stowage / From: KA096385 		$409.38 1
18808 LR049976
SPEAKER
Tow Hitch Elec Deployable Swan Neck 		$137.55 1
