Name: Engine Bay Harness (Nitra Plant Build) ((V) FROMK2000001)
Rating: 4.7 (1 reviews)

View All

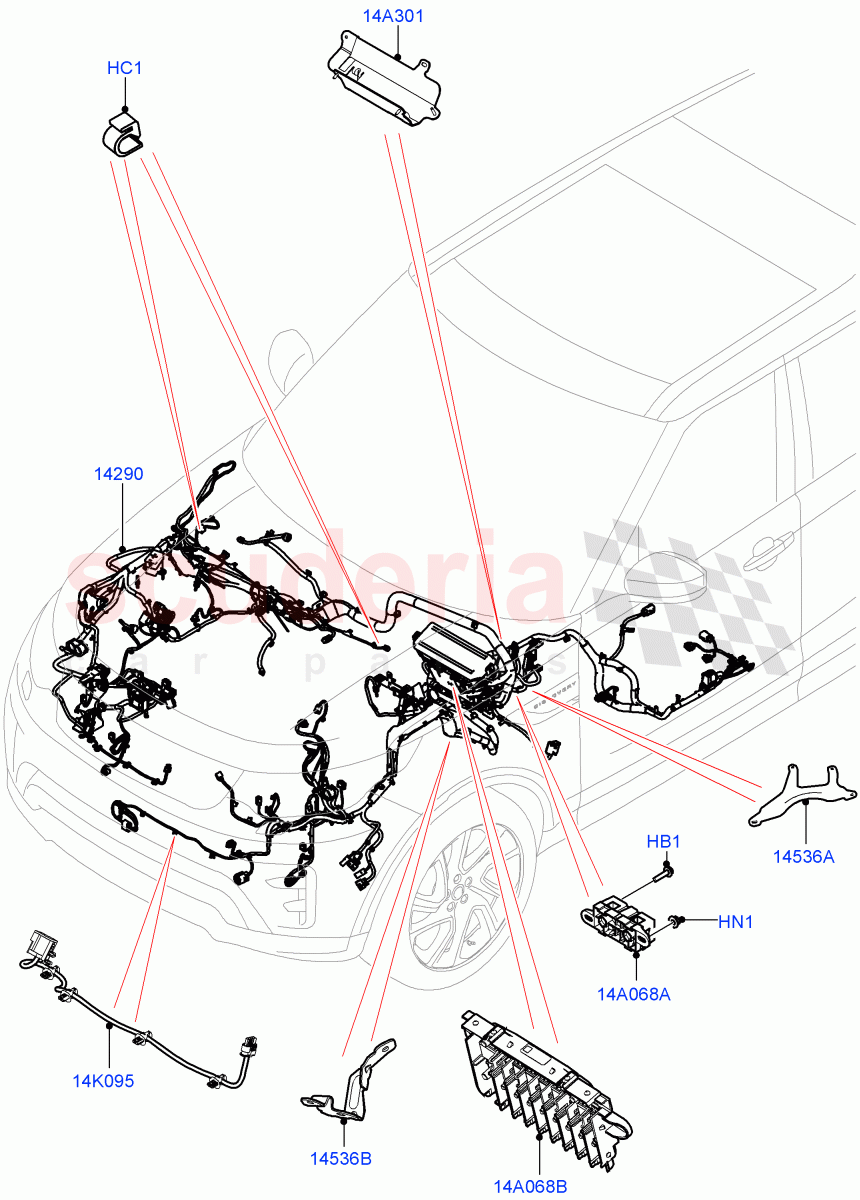

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYP501130	BOLT	$1.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126613	CLIP	$3.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025158	NUT - HEX.	$0.28	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR133292	BRACKET - WIRING	$28.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR149252	BRACKET - WIRING	$8.01	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086930	BRACKET - FUSE BOX	$43.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR086804	WIRING - ACTIVE VANES	$56.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050937	BOX - FUSE	$71.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR171012	BOX - FUSE	$347.67	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYP501130	BOLT	RYP501130 BOLT M6 x 12MM / From: K2000001	$1.37	1
HC1	LR126613	CLIP	LR126613 CLIP With Heated Washer Jet / From: K2000001	$3.07	3
HN1	LR025158	NUT - HEX.	LR025158 NUT - HEX. M5 / From: K2000001	$0.28	1
14A068A	LR050937	BOX - FUSE	LR050937 BOX - FUSE From: K2000001	$71.09	1
14A068B	LR171012	BOX - FUSE	LR171012 BOX - FUSE From: P2000001	$347.67	1
14A301	LR086930	BRACKET - FUSE BOX	LR086930 BRACKET - FUSE BOX LHD / From: K2000001	$43.16	1
14K095	LR086804	WIRING - ACTIVE VANES	LR086804 WIRING - ACTIVE VANES From: K2000001	$56.39	1
14290	LR115580	ENGINE BAY HARNESS	LR115580 ENGINE BAY HARNESS KSK harness, Requires VIN To Order / From: K2000001 / To: K2999999	$2,576.24	1
14290	LR133870	ENGINE BAY HARNESS	LR133870 ENGINE BAY HARNESS KSK harness, Requires VIN To Order / From: L2000001 / To: L2999999	$2,547.85	1
14290	LR146696	ENGINE BAY HARNESS	LR146696 ENGINE BAY HARNESS KSK harness, Requires VIN To Order / From: M2000001 / To: N2999999	$2,801.84	1
14290	LR171307	Wire	LR171307 Wire KSK harness, Requires VIN To Order / From: P2000001	$1,916.57	1
14536A	LR133292	BRACKET - WIRING	LR133292 BRACKET - WIRING 3.0L AJ20D6 Diesel High, LHD / PCM - (Powertrain Control Module) / From: M2000001	$28.16	1
14536B	LR149252	BRACKET - WIRING	LR149252 BRACKET - WIRING LHD / Integrated Power Brake / From: M2000001	$8.01	1

Engine Bay Harness (Nitra Plant Build) ((V) Fromk2000001)

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]
