Engine Harness (Solihull Plant Build) (3.0L Dohc Gdi Sc V6 Petrol) ((V) Fromha000001)

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Engine Harness (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMHA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FN108042 NUT $1.40 To Order
Photo Part No Description Price (each) Stock
LR011413 SCREW $1.09 To Order
Photo Part No Description Price (each) Stock
FA106126 SCREW $0.47 IN STOCK
Photo Part No Description Price (each) Stock
FA108202 SCREW $1.36 To Order
Photo Part No Description Price (each) Stock
LR064173 WIRING - WATER PUMP $58.85 To Order
Photo Part No Description Price (each) Stock
LR085673 WIRE - ALTERNATOR $163.50 To Order
LR085674 WIRE - ALTERNATOR $145.84 To Order
LR107823 WIRE - ALTERNATOR $160.40 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR141820 PLUG - BLANKING $5.42 To Order
Photo Part No Description Price (each) Stock
LR011980 HEAT SHIELD - CONNECTOR $10.64 To Order
Photo Part No Description Price (each) Stock
LR011500 HEAT SHIELD - CONNECTOR $113.81 To Order
Photo Part No Description Price (each) Stock
LR085666 TERMINAL - BATTERY $107.35 To Order
Photo Part No Description Price (each) Stock
LR065955 CABLE - BATTERY TO STARTER MOTOR $69.25 To Order
LR043370 WIRING - STARTER MOTOR $17.47 To Order
Photo Part No Description Price (each) Stock
LR048467 WIRE - KNOCK SENSOR $318.14 To Order
Photo Part No Description Price (each) Stock
LR082621 WIRING - ENGINE $1,989.55 To Order
LR105966 WIRING - ENGINE $2,019.36 To Order
LR113355 WIRING - ENGINE $2,063.56 To Order
View All

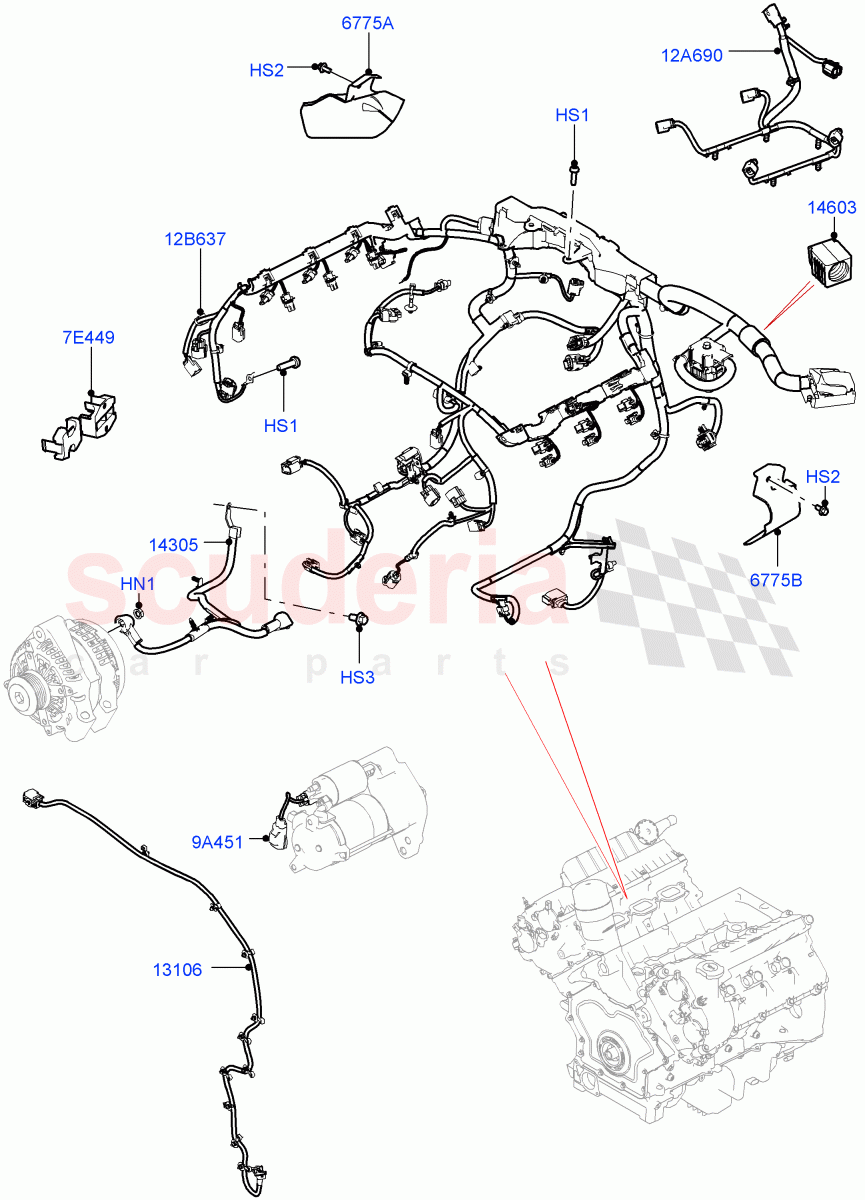

Engine Harness (Solihull Plant Build) (3.0L DOHC GDI SC V6 PETROL) ((V) FROMHA000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FN108042
NUT
M8 		$1.40 2
HS1 LR011413
SCREW
M6 X 20MM 		$1.09 1
HS2 FA106126
SCREW
Hexagonal Head, M6 x 12MM
IN STOCK 		$0.47 2
HS3 FA108202
SCREW
Hexagonal Head, M8 X 20MM, Taptite 		$1.36 1
7E449 LR085666
TERMINAL - BATTERY
Battery Cables 		$107.35 1
9A451 LR065955
CABLE - BATTERY TO STARTER MOTOR
Starter - Stop/Start System / Starter 		$69.25 1
9A451 LR043370
WIRING - STARTER MOTOR
Standard Electric Starter Motor / Starter 		$17.47 1
12A690 LR048467
WIRE - KNOCK SENSOR
Anti-Knock Sensor 		$318.14 1
12B637 LR082621
WIRING - ENGINE
Engine / To: HA010936 		$1,989.55 1
12B637 LR105966
WIRING - ENGINE
Engine / From: HA010937 / To: JA049645 		$2,019.36 1
12B637 LR113355
WIRING - ENGINE
Engine / From: JA049646 		$2,063.56 1
6775A LR011980
HEAT SHIELD - CONNECTOR
RH 		$10.64 1
6775B LR011500
HEAT SHIELD - CONNECTOR
LH 		$113.81 1
13106 LR064173
WIRING - WATER PUMP
Water Pump 		$58.85 1
14305 LR085673
WIRE - ALTERNATOR
Starter - Stop/Start System / To: HA039577 		$163.50 1
14305 LR085674
WIRE - ALTERNATOR
Standard Electric Starter Motor / To: HA039577 		$145.84 1
14305 LR107823
WIRE - ALTERNATOR
Starter - Stop/Start System / From: HA039578 / To: HA999999 		$160.40 1
14305 LR107821
WIRE - ALTERNATOR
Standard Electric Starter Motor / From: HA039578 / To: HA999999 		$179.71 1
14305 LR110188
WIRE - ALTERNATOR
Starter - Stop/Start System / From: JA000001 / To: JA999999 		$107.81 1
14305 LR110189
WIRE - ALTERNATOR
Standard Electric Starter Motor / From: JA000001 / To: JA999999 		$178.44 1
14305 LR120988
WIRE - ALTERNATOR
Starter - Stop/Start System / From: KA000001 		$188.97 1
14305 LR120989
WIRE - ALTERNATOR
Standard Electric Starter Motor / From: KA000001 		$241.01 1
14603 LR141820
PLUG - BLANKING
Engine Harness 		$5.42 1
