Engine Harness (Nitra Plant Build) (2.0L I4 High Dohc Aj200 Petrol) ((V) Fromk2000001)

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] - Engine Harness (Nitra Plant Build) (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMK2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR087242 NUT - HEX. $1.45 To Order
Photo Part No Description Price (each) Stock
RYH500340 NUT AND WASHER - HEX. $1.06 To Order
Photo Part No Description Price (each) Stock
FY108046 NUT M8 FLANGED HEX HEAD $1.11 IN STOCK
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.59 IN STOCK
Photo Part No Description Price (each) Stock
FA108202 SCREW $1.35 To Order
Photo Part No Description Price (each) Stock
RYG500220 SCREW $3.44 IN STOCK
Photo Part No Description Price (each) Stock
LR120983 WIRE - ALTERNATOR $239.13 To Order
LR149207 WIRE - ALTERNATOR $167.03 To Order
LR170960 WIRE - ALTERNATOR $112.80 To Order
Photo Part No Description Price (each) Stock
LR141820 PLUG - BLANKING $5.38 To Order
Photo Part No Description Price (each) Stock
LR085666 TERMINAL - BATTERY $106.51 To Order
Photo Part No Description Price (each) Stock
LR113349 WIRING - STARTER MOTOR $73.05 To Order
Photo Part No Description Price (each) Stock
LR116490 WIRING - FUEL INJECTORS $133.25 To Order
Photo Part No Description Price (each) Stock
LR125828 WIRING - ENGINE $1,698.75 To Order
LR141452 WIRING - ENGINE $2,121.17 To Order
Photo Part No Description Price (each) Stock
LR138653 BRACKET $23.32 To Order
View All

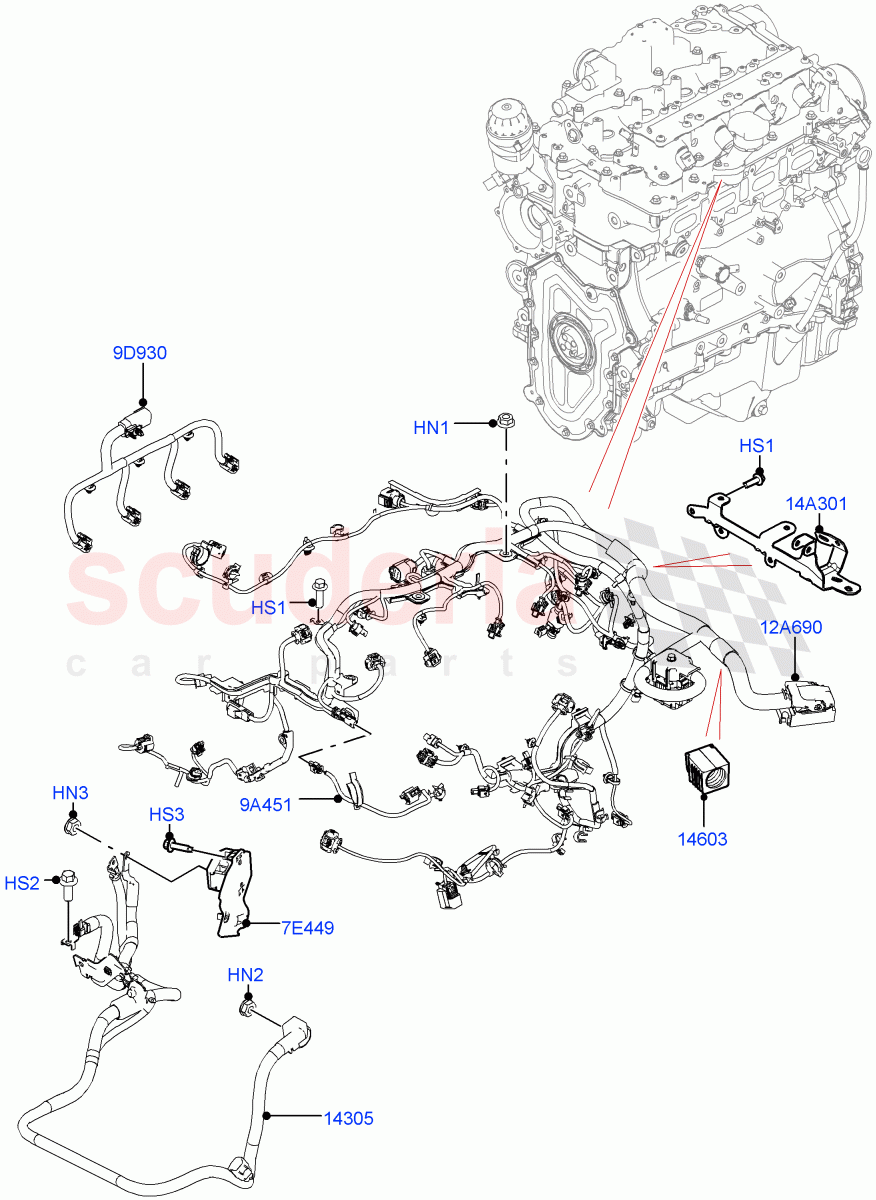

Engine Harness (Nitra Plant Build) (2.0L I4 High DOHC AJ200 Petrol) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 LR087242
NUT - HEX.
M6 / From: K2000001 		$1.45 2
HN2 RYH500340
NUT AND WASHER - HEX.
M8, Nut And Washer / From: K2000001 		$1.06 1
HN3 FY108046
NUT M8 FLANGED HEX HEAD
M8 / From: K2000001
IN STOCK 		$1.11 1
HS1 LR073655
SCREW
Hexagonal Head, M6 X 20MM / From: K2000001
IN STOCK 		$1.59 9
HS2 FA108202
SCREW
Hexagonal Head, M8 X 20MM, Taptite / From: K2000001 		$1.35 1
HS3 RYG500220
SCREW
Hexagonal Head, M6 X 20MM, Wiring Terminal / From: K2000001
IN STOCK 		$3.44 2
7E449 LR085666
TERMINAL - BATTERY
Battery Cables / From: K2000001 		$106.51 1
9A451 LR113349
WIRING - STARTER MOTOR
Alternator / From: K2000001 		$73.05 1
9D930 LR116490
WIRING - FUEL INJECTORS
Injector Harness / From: K2000001 		$133.25 1
12A690 LR125828
WIRING - ENGINE
Engine / From: K2000001 / To: L2999999 		$1,698.75 1
12A690 LR141452
WIRING - ENGINE
Engine / From: M2000001 		$2,121.17 1
14A301 LR138653
BRACKET
Engine Rear / From: K2000001 		$23.32 1
14305 LR120983
WIRE - ALTERNATOR
From: K2000001 / To: L2999999 		$239.13 1
14305 LR149207
WIRE - ALTERNATOR
From: M2000001 / To: N2999999 		$167.03 1
14305 LR170960
WIRE - ALTERNATOR
From: P2000001 		$112.80 1
14603 LR141820
PLUG - BLANKING
Engine Harness / From: K2000001 		$5.38 1
