Air Vents, Louvres And Ducts (Floor, Nitra Plant Build, Internal Components) ((V) Fromm2000001)

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Air Vents, Louvres And Ducts (Floor, Nitra Plant Build, Internal Components) ((V) FROMM2000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RZM500070 PIN - SPECIAL $1.10 IN STOCK
Photo Part No Description Price (each) Stock
LR033052 SCREW AND WASHER - SELF-TAPPING $2.25 To Order
Photo Part No Description Price (each) Stock
LR126059 SCREW $0.86 To Order
Photo Part No Description Price (each) Stock
LR142255 DUCT - AIR VENT $75.93 To Order
Photo Part No Description Price (each) Stock
LR142254 DUCT - AIR VENT $68.71 To Order
Photo Part No Description Price (each) Stock
LR130727 ADAPTOR - HEATER OUTLET $103.49 To Order
Photo Part No Description Price (each) Stock
LR142258 DEFLECTOR - HEATER AIR - UNDERFLOOR $76.24 To Order
Photo Part No Description Price (each) Stock
LR082139 DEFLECTOR - HEATER AIR - UNDERFLOOR $92.28 To Order
Photo Part No Description Price (each) Stock
LR142257 DEFLECTOR - HEATER AIR - UNDERFLOOR $74.24 To Order
Photo Part No Description Price (each) Stock
LR142256 DEFLECTOR - HEATER AIR - UNDERFLOOR $74.06 To Order
Photo Part No Description Price (each) Stock
LR142499 DUCT - HEATER OUTLET $150.79 To Order
LR162005 DUCT - HEATER OUTLET $150.79 To Order
Photo Part No Description Price (each) Stock
LR142500 DUCT - HEATER OUTLET $150.79 To Order
LR162003 DUCT - HEATER OUTLET $150.79 To Order
Photo Part No Description Price (each) Stock
LR148084 DUCT - HEATER OUTLET $206.01 To Order
View All

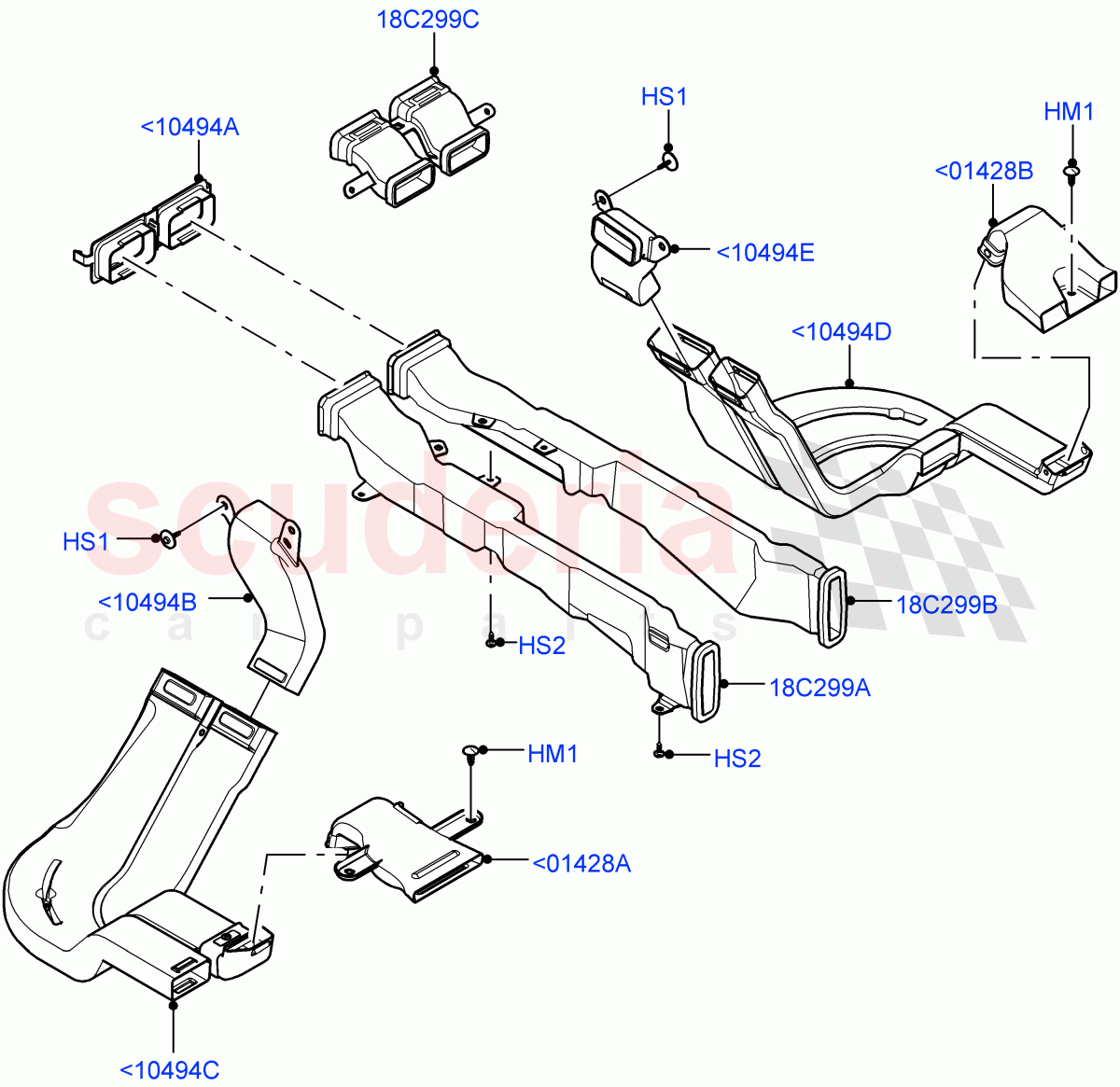

Air Vents, Louvres And Ducts (Floor, Nitra Plant Build, Internal Components) ((V) FROMM2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<01428A LR142255
DUCT - AIR VENT
LH, Under Front Seat / From: M2000001 		$75.93 1
<01428B LR142254
DUCT - AIR VENT
RH, Under Front Seat / From: M2000001 		$68.71 1
<10494A LR130727
ADAPTOR - HEATER OUTLET
Adaptor, Attached To Air Ducts, Duct Retainer, Through Flow / From: M2000001 		$103.49 1
<10494B LR142258
DEFLECTOR - HEATER AIR - UNDERFLOOR
LH, Upper / From: M2000001 		$76.24 1
<10494C LR082139
DEFLECTOR - HEATER AIR - UNDERFLOOR
LH, Lower / From: M2000001 		$92.28 1
<10494D LR142257
DEFLECTOR - HEATER AIR - UNDERFLOOR
RH, Lower / From: M2000001 		$74.24 1
<10494E LR142256
DEFLECTOR - HEATER AIR - UNDERFLOOR
RH, Upper / From: M2000001 		$74.06 1
HM1 RZM500070
PIN - SPECIAL
6.4 X 20.4, Push Pin / From: M2000001
IN STOCK 		$1.10 3
HS1 LR033052
SCREW AND WASHER - SELF-TAPPING
5 x 20MM / From: M2000001 		$2.25 4
HS2 LR126059
SCREW
5X16 / From: M2000001 		$0.86 4
18C299A LR142499
DUCT - HEATER OUTLET
LH, Floor Console / From: M2000001 / To: N2457113 		$150.79 1
18C299A LR162005
DUCT - HEATER OUTLET
LH, Floor Console / From: N2457114 		$150.79 1
18C299B LR142500
DUCT - HEATER OUTLET
RH, Floor Console / From: M2000001 / To: N2457113 		$150.79 1
18C299B LR162003
DUCT - HEATER OUTLET
RH, Floor Console / From: N2457114 		$150.79 1
18C299C LR148084
DUCT - HEATER OUTLET
Centre Console, Upper / From: M2000001 		$206.01 1
