Name: Air Vents, Louvres And Ducts (Internal Components, Floor, Nitra Plant Build) ((V) FROMK2000001, (V) TOL2999999)
Rating: 4.4 (1 reviews)

Air Vents, Louvres And Ducts (Internal Components, Floor, Nitra Plant Build) ((V) FROMK2000001, (V) TOL2999999) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Air Vents, Louvres And Ducts (Internal Components, Floor, Nitra Plant Build) ((V) FROMK2000001, (V)...

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RZM500070	PIN - SPECIAL	$1.10	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR041044	SENSOR - HEATER TEMPERATURE CONTROL	$18.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082115	DUCT - AIR VENT	$84.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082135	DUCT - AIR VENT	$85.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082138	DEFLECTOR - HEATER AIR - UNDERFLOOR	$79.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082142	DEFLECTOR - HEATER AIR - UNDERFLOOR	$78.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082139	DEFLECTOR - HEATER AIR - UNDERFLOOR	$92.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082140	DEFLECTOR - HEATER AIR - UNDERFLOOR	$98.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082124	DEFLECTOR - HEATER AIR - UNDERFLOOR	$83.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082125	DEFLECTOR - HEATER AIR - UNDERFLOOR	$90.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082126	DEFLECTOR - HEATER AIR - UNDERFLOOR	$91.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085677	ADAPTOR - HEATER OUTLET	$83.48	To Order
	LR130727	ADAPTOR - HEATER OUTLET	$103.49	To Order

View All

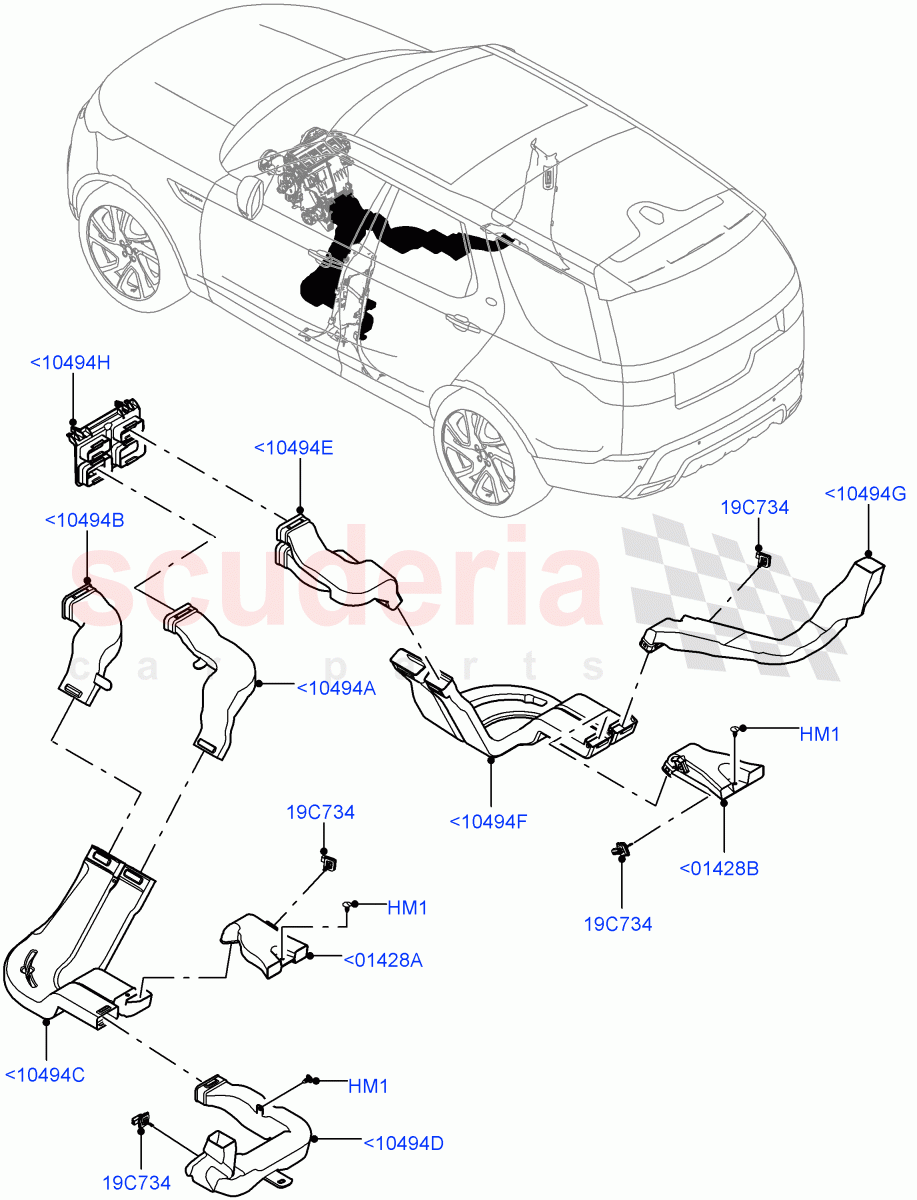

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<01428A	LR082115	DUCT - AIR VENT	LR082115 DUCT - AIR VENT LH, Under Front Seat / From: K2000001	$84.81	1
<01428B	LR082135	DUCT - AIR VENT	LR082135 DUCT - AIR VENT RH, Under Front Seat / From: K2000001	$85.29	1
<10494A	LR082138	DEFLECTOR - HEATER AIR - UNDERFLOOR	LR082138 DEFLECTOR - HEATER AIR - UNDERFLOOR LH, Upper / From: K2000001	$79.71	1
<10494B	LR082142	DEFLECTOR - HEATER AIR - UNDERFLOOR	LR082142 DEFLECTOR - HEATER AIR - UNDERFLOOR LH, Lower / From: K2000001	$78.25	1
<10494C	LR082139	DEFLECTOR - HEATER AIR - UNDERFLOOR	LR082139 DEFLECTOR - HEATER AIR - UNDERFLOOR LH, Under Front Seat / From: K2000001	$92.28	1
<10494D	LR082140	DEFLECTOR - HEATER AIR - UNDERFLOOR	LR082140 DEFLECTOR - HEATER AIR - UNDERFLOOR LH, Under Front Seat / From: K2000001	$98.88	1
<10494E	LR082124	DEFLECTOR - HEATER AIR - UNDERFLOOR	LR082124 DEFLECTOR - HEATER AIR - UNDERFLOOR Upper / From: K2000001	$83.13	1
<10494F	LR082125	DEFLECTOR - HEATER AIR - UNDERFLOOR	LR082125 DEFLECTOR - HEATER AIR - UNDERFLOOR RH, Under Front Seat / From: K2000001	$90.00	1
<10494G	LR082126	DEFLECTOR - HEATER AIR - UNDERFLOOR	LR082126 DEFLECTOR - HEATER AIR - UNDERFLOOR RH, Under Front Seat / From: K2000001	$91.66	1
<10494H	LR085677	ADAPTOR - HEATER OUTLET	LR085677 ADAPTOR - HEATER OUTLET Adaptor, Attached To Air Ducts, Duct Retainer / From: K2000001 / To: L2424319	$83.48	1
<10494H	LR130727	ADAPTOR - HEATER OUTLET	LR130727 ADAPTOR - HEATER OUTLET Adaptor, Attached To Air Ducts, Duct Retainer, Through Flow / From: L2424320	$103.49	1
HM1	RZM500070	PIN - SPECIAL IN STOCK	RZM500070 PIN - SPECIAL 6.4 X 20.4, Push Pin / From: K2000001 IN STOCK	$1.10	1
19C734	LR041044	SENSOR - HEATER TEMPERATURE CONTROL	LR041044 SENSOR - HEATER TEMPERATURE CONTROL From: K2000001	$18.73	4
