Name: Auxiliary Fuel Fired Pre-Heater (Nitra Plant Build, Heater Fuel Supply) (With Fuel Fired Heater, Fuel Heater W/Pk Heat With Remote, Fuel Fired Heater With Park Heat) ((V) FROMK2000001)
Rating: 4.2 (1 reviews)

Auxiliary Fuel Fired Pre-Heater (Nitra Plant Build, Heater Fuel Supply) (With Fuel Fired Heater, Fuel Heater W/Pk Heat With Remote, Fuel Fired Heater With Park Heat) ((V) FROMK2000001) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Auxiliary Fuel Fired Pre-Heater (Nitra Plant Build, Heater Fuel Supply) (With Fuel Fired Heater,...

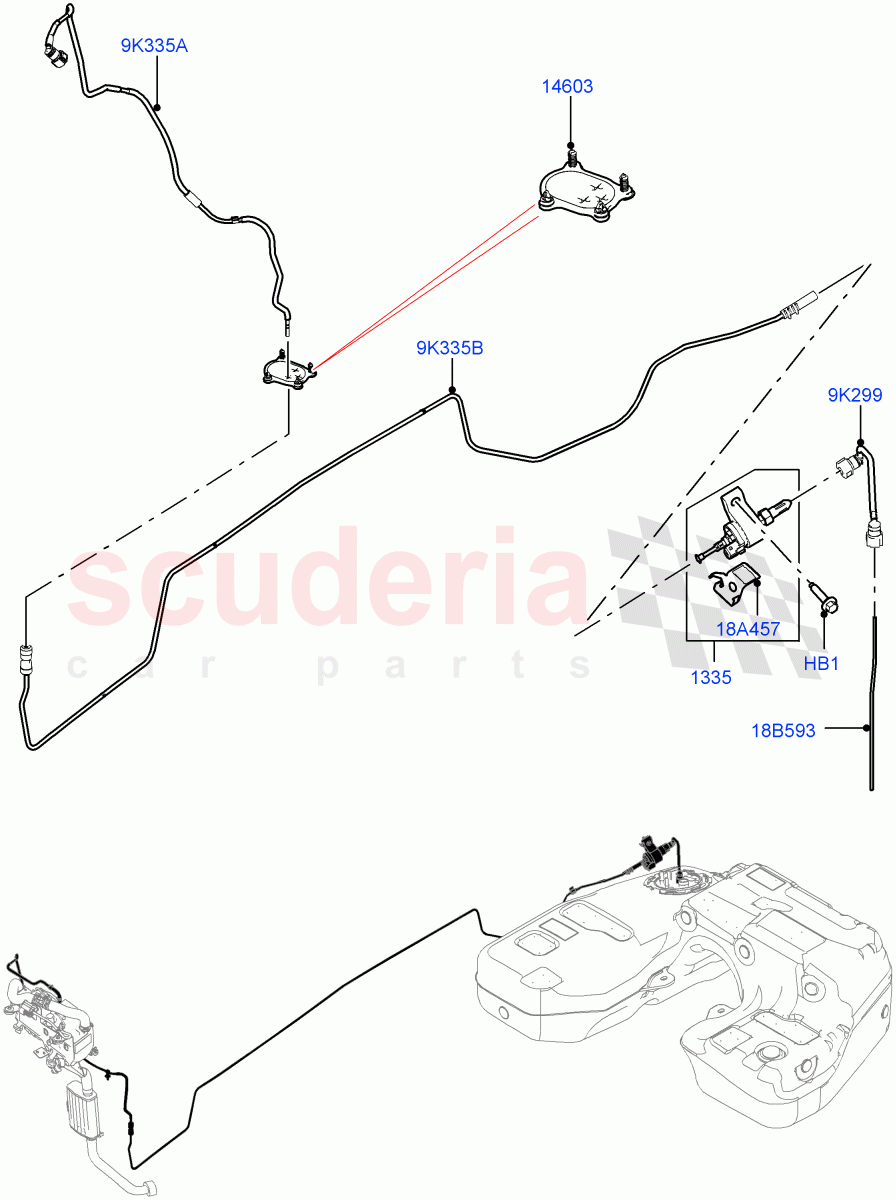

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500250	BOLT	$1.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR099629	FUEL PUMP AND FILTER	$317.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101818	GROMMET - WIRING	$9.60	To Order
	LR101818	GROMMET - WIRING	$9.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR085959	TUBE - FUEL SUPPLY	$77.64	To Order
	LR126114	TUBE - FUEL SUPPLY	$81.97	To Order
	LR134978	TUBE - FUEL SUPPLY	$81.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101293	BRACKET - HEATER MOUNTING	$45.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092774	TUBE - AUXILIARY HEATER SUPPLY	$54.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126110	PIPE - FUEL	$95.75	To Order
	LR148287	PIPE - FUEL	$31.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100569	PIPE - FUEL	$50.21	To Order
	LR126111	PIPE - FUEL	$50.21	To Order
	LR138430	PIPE - FUEL	$50.21	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500250	BOLT IN STOCK	RYG500250 BOLT M6 x 25MM / From: K2000001 IN STOCK	$1.24	1
9K299	LR085959	TUBE - FUEL SUPPLY	LR085959 TUBE - FUEL SUPPLY From: K2000001 / To: K2405388	$77.64	1
9K299	LR126114	TUBE - FUEL SUPPLY	LR126114 TUBE - FUEL SUPPLY From: K2405389 / To: K2411530	$81.97	1
9K299	LR134978	TUBE - FUEL SUPPLY	LR134978 TUBE - FUEL SUPPLY From: K2411531	$81.97	1
9K335A	LR126110	PIPE - FUEL	LR126110 PIPE - FUEL Front, Pump To Heater / From: K2000001 / To: L2999999	$95.75	1
9K335A	LR148287	PIPE - FUEL	LR148287 PIPE - FUEL Front, Pump To Heater / From: M2000001	$31.43	1
9K335B	LR100569	PIPE - FUEL	LR100569 PIPE - FUEL Centre, Pump To Heater / From: K2000001 / To: K2408819	$50.21	1
9K335B	LR126111	PIPE - FUEL	LR126111 PIPE - FUEL Centre, Pump To Heater / From: K2408820 / To: L2423865	$50.21	1
9K335B	LR138430	PIPE - FUEL	LR138430 PIPE - FUEL Centre, Pump To Heater / From: L2423866 / To: L2999999	$50.21	1
9K335B	LR142084	PIPE - FUEL	LR142084 PIPE - FUEL Centre, Pump To Heater / From: M2000001	$147.93	1
18A457	LR101293	BRACKET - HEATER MOUNTING	LR101293 BRACKET - HEATER MOUNTING From: K2000001	$45.41	1
18B593	LR092774	TUBE - AUXILIARY HEATER SUPPLY	LR092774 TUBE - AUXILIARY HEATER SUPPLY Fuel Tank / From: K2000001	$54.11	1
1335	LR099629	FUEL PUMP AND FILTER	LR099629 FUEL PUMP AND FILTER From: K2000001	$317.07	1
14603	LR101818	GROMMET - WIRING	LR101818 GROMMET - WIRING From: K2000001 / To: L2999999	$9.60	1
14603	LR101818	GROMMET - WIRING	LR101818 GROMMET - WIRING 5 Door / From: M2000001	$9.60	1

Auxiliary Fuel Fired Pre-Heater (Nitra Plant Build, Heater Fuel Supply) (With Fuel Fired Heater,...

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Auxiliary Fuel Fired Pre-Heater (Nitra Plant Build, Heater Fuel Supply) (With Fuel Fired Heater,...
