Heater Hoses (Solihull Plant Build) (2.0L I4 Dsl Mid Dohc Aj200, With Fuel Fired Heater, With Air...

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] - Heater Hoses (Solihull Plant Build) (2.0L I4 DSL MID DOHC AJ200, With Fuel Fired Heater, With Air...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR009266 BOLT M6 X 24 $1.49 IN STOCK
Photo Part No Description Price (each) Stock
LR081644 TUBE - HEATER WATER $279.46 To Order
Photo Part No Description Price (each) Stock
LR081652 HOSE - HEATER WATER $56.30 To Order
Photo Part No Description Price (each) Stock
LR035621 HOSE - HEATER WATER $39.17 To Order
View All

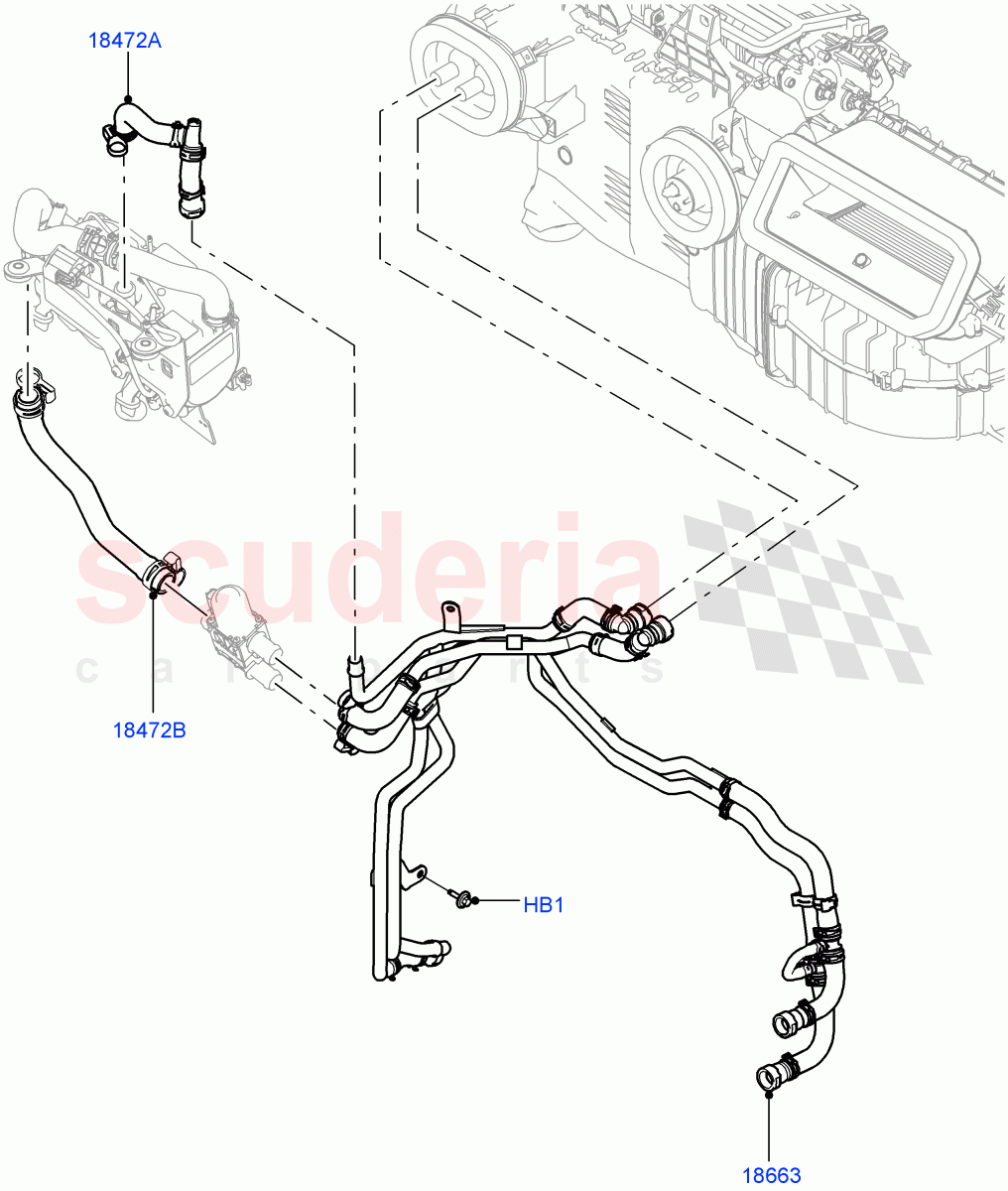

Heater Hoses (Solihull Plant Build) (2.0L I4 DSL MID DOHC AJ200, With Fuel Fired Heater, With Air Conditioning - Front/Rear, Park Heating With Remote Control, 2.0L I4 DSL HIGH DOHC AJ200) ((V) FROMHA000001, (V) TOHA999999) of Land Rover Land Rover Discovery 5 (2017+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR009266
BOLT M6 X 24
Bolt And Washer, Hexagonal Head, M6 X 24MM
IN STOCK 		$1.49 2
18472A LR081652
HOSE - HEATER WATER 		$56.30 1
18472B LR035621
HOSE - HEATER WATER 		$39.17 1
18663 LR081644
TUBE - HEATER WATER 		$279.46 1
