Electrical Wiring - Engine And Dash (Engine Compartment) (Changsu (China)) ((V) Fromfg000001)

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Electrical Wiring - Engine And Dash (Engine Compartment) (Changsu (China)) ((V) FROMFG000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FX106046 NUT - FLANGED $0.60 IN STOCK
Photo Part No Description Price (each) Stock
RYP500200 SCREW $0.97 To Order
Photo Part No Description Price (each) Stock
LR023697 SCREW $0.56 To Order
Photo Part No Description Price (each) Stock
LR006025 BOLT $1.38 IN STOCK
Photo Part No Description Price (each) Stock
LR084373 ENGINE BAY HARNESS $2,527.44 To Order
Photo Part No Description Price (each) Stock
LR075883 WIRING - WIPER MOTOR $112.43 To Order
Photo Part No Description Price (each) Stock
LR041240 WIRE - ENGINE EARTH $57.75 To Order
Photo Part No Description Price (each) Stock
LR067380 COVER - FUSE BOX $30.89 To Order
Photo Part No Description Price (each) Stock
LR098323 BRACKET - WIRING $34.97 To Order
View All

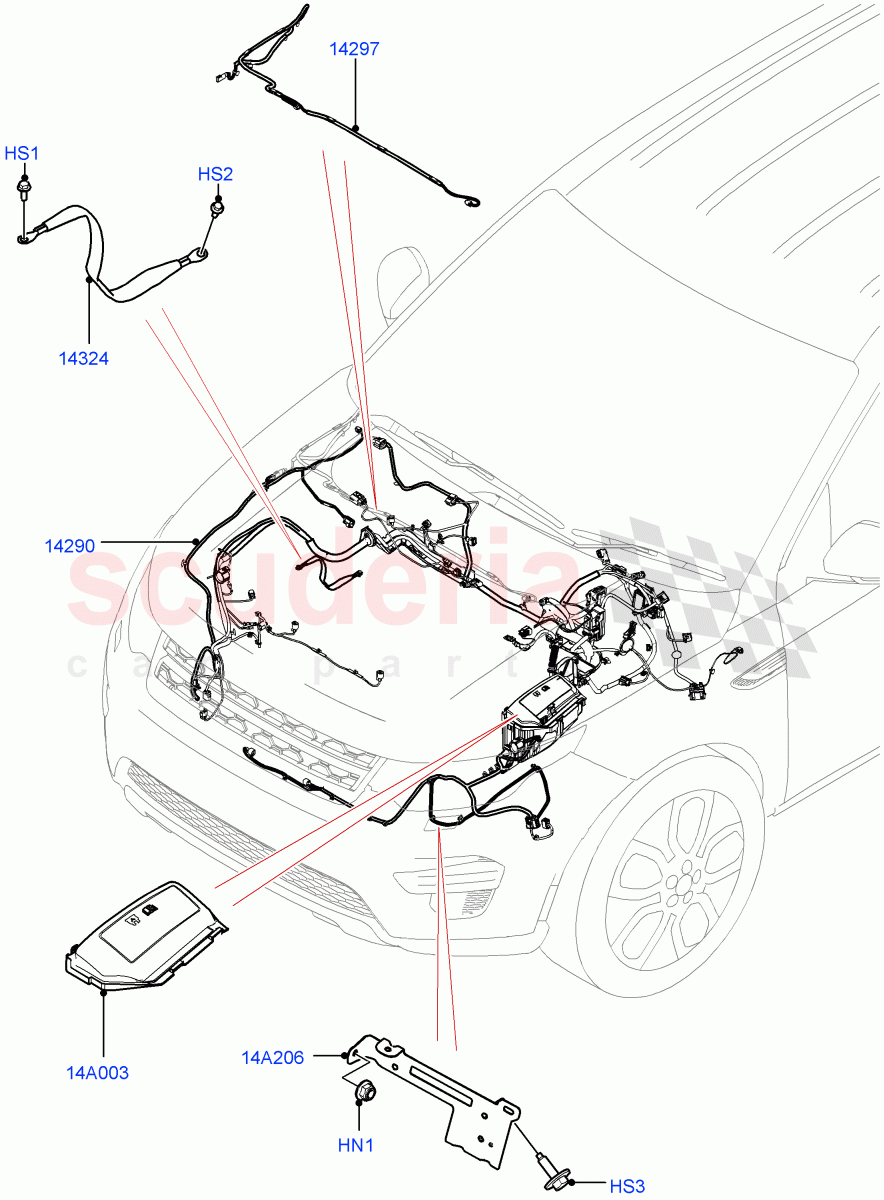

Electrical Wiring - Engine And Dash (Engine Compartment) (Changsu (China)) ((V) FROMFG000001) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 FX106046
NUT - FLANGED
Hexagonal Head, M6 / From: HG379387
IN STOCK 		$0.60 1
HS1 RYP500200
SCREW
2.0L 16V TIVCT T/C 240PS Petrol / Hexagonal Head, M6 X 20MM / From: FG000001 		$0.97 1
HS2 LR023697
SCREW
2.0L 16V TIVCT T/C 240PS Petrol / M6 X 16MM / From: FG000001 		$0.56 1
HS3 LR006025
BOLT
Bolt And Washer, M6 X 15 Hex / From: HG379387
IN STOCK 		$1.38 1
14A003 LR067380
COVER - FUSE BOX
From: FG000001 		$30.89 1
14A206 LR098323
BRACKET - WIRING
From: HG379387 		$34.97 1
14290 LR084373
ENGINE BAY HARNESS
Requires VIN To Order / KSK harness / From: FG000001 		$2,527.44 1
14297 LR075883
WIRING - WIPER MOTOR
With Heated Washer Jet / From: FG000001 		$112.43 1
14324 LR041240
WIRE - ENGINE EARTH
2.0L 16V TIVCT T/C 240PS Petrol / Grounding Cable From Engine Support To Chassis Member / From: FG000001 		$57.75 1
