Hybrid Electrical Modules (Mhev Battery Housing, Cooling Ducts And Fans) (Changsu (China), Electric...

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Hybrid Electrical Modules (MHEV Battery Housing, Cooling Ducts and Fans) (Changsu (China), Electric...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR073735 BOLT $1.41 To Order
Photo Part No Description Price (each) Stock
LR118799 BOLT AND WASHER - HEX.HEAD $3.06 To Order
Photo Part No Description Price (each) Stock
LR118800 BOLT AND WASHER - HEX.HEAD $3.00 IN STOCK
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.48 IN STOCK
Photo Part No Description Price (each) Stock
LR139570 SCREW $1.65 To Order
Photo Part No Description Price (each) Stock
LR115526 FOAM - SEALING $11.23 To Order
Photo Part No Description Price (each) Stock
LR128845 TRAY - BATTERY $150.39 To Order
Photo Part No Description Price (each) Stock
LR115321 DUCT - CABIN $79.78 To Order
Photo Part No Description Price (each) Stock
LR128446 HOSE - VENT $53.51 To Order
Photo Part No Description Price (each) Stock
LR115334 HOSE - VENT $14.23 To Order
Photo Part No Description Price (each) Stock
LR115509 GASKET - BATTERY $9.93 To Order
Photo Part No Description Price (each) Stock
LR115510 GASKET - BATTERY $1.82 To Order
Photo Part No Description Price (each) Stock
LR115516 DUCT - COOLING $81.83 To Order
Photo Part No Description Price (each) Stock
LR115517 DUCT - COOLING $70.13 To Order
Photo Part No Description Price (each) Stock
LR115519 DUCT - COOLING $72.05 To Order
Photo Part No Description Price (each) Stock
LR132964 DUCT - COOLING $81.45 To Order
Photo Part No Description Price (each) Stock
LR133666 TRAY - BATTERY $117.75 To Order
Photo Part No Description Price (each) Stock
LR115524 FOAM - SEALING $0.79 To Order
Photo Part No Description Price (each) Stock
LR115521 FAN - AUXILIARY COOLING $199.58 To Order
Photo Part No Description Price (each) Stock
LR115522 FAN - AUXILIARY COOLING $199.58 To Order
View All

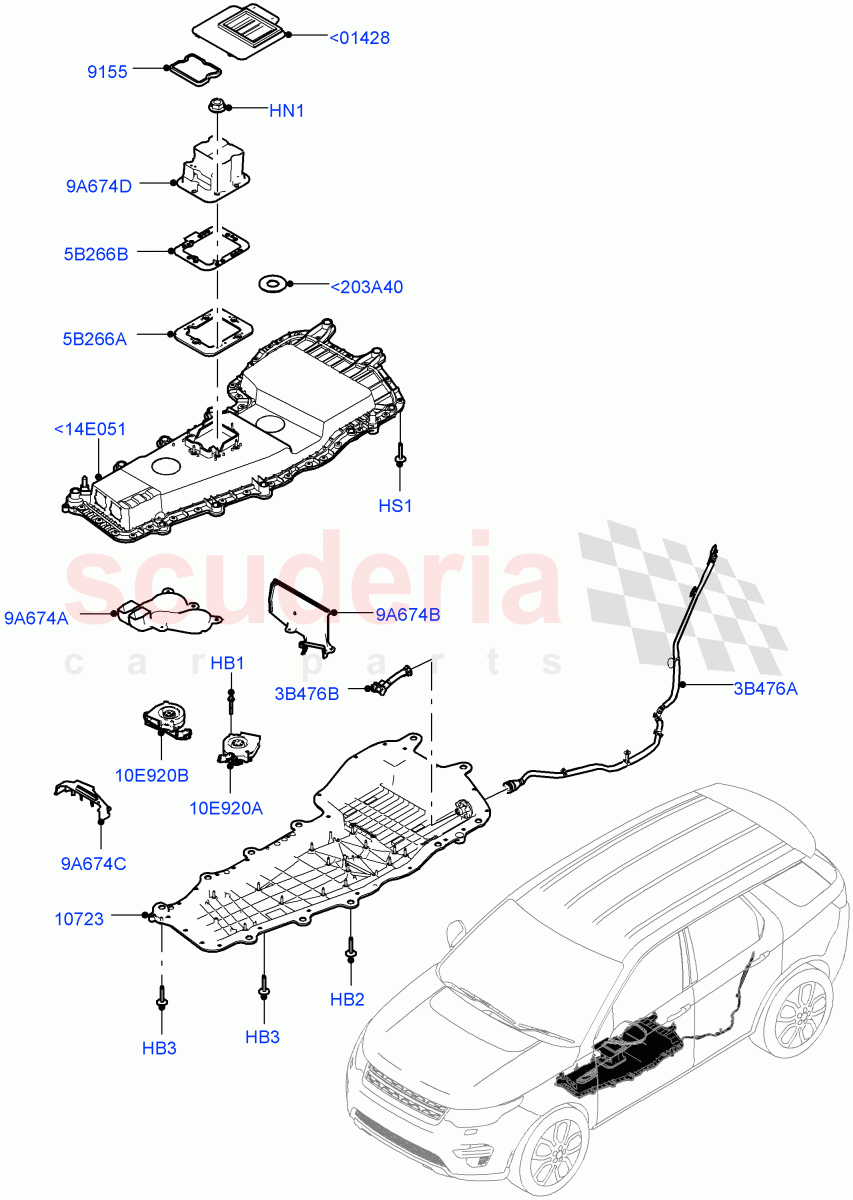

Hybrid Electrical Modules (MHEV Battery Housing, Cooling Ducts and Fans) (Changsu (China), Electric Engine Battery-MHEV) ((V) FROMKG446857) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<14E051 LR133666
TRAY - BATTERY
Upper / From: KG446857 		$117.75 1
<203A40 LR115524
FOAM - SEALING
From: KG446857 		$0.79 2
<01428 LR115321
DUCT - CABIN
From: KG446857 		$79.78 1
HB1 LR073735
BOLT
Cooling Fan to Battery Tray, M6 X 40MM / From: KG446857 		$1.41 4
HB2 LR118799
BOLT AND WASHER - HEX.HEAD
Battery Tray To Main Body, M8 x 55MM, Washer - 30 mm / From: KG446857 		$3.06 7
HB3 LR118800
BOLT AND WASHER - HEX.HEAD
Battery Tray To Main Body, M8 x 55MM, Washer - 24 mm / From: KG446857
IN STOCK 		$3.00 2
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: KG446857
IN STOCK 		$1.48 6
HS1 LR139570
SCREW
Hexagonal Head, M6 X 20MM / From: KG446857 		$1.65 39
3B476A LR128446
HOSE - VENT
Outer / From: KG446857 		$53.51 1
3B476B LR115334
HOSE - VENT
Inner / From: KG446857 		$14.23 1
5B266A LR115509
GASKET - BATTERY
Battery Tray / From: KG446857 		$9.93 1
5B266B LR115510
GASKET - BATTERY
Battery Tray / From: KG446857 		$1.82 1
9A674A LR115516
DUCT - COOLING
Inlet, Inner / From: KG446857 		$81.83 1
9A674B LR115517
DUCT - COOLING
Directional Duct, Inner / From: KG446857 		$70.13 1
9A674C LR115519
DUCT - COOLING
Inner / From: KG446857 		$72.05 1
9A674D LR132964
DUCT - COOLING
Inlet, Outer / From: KG446857 		$81.45 1
10E920A LR115521
FAN - AUXILIARY COOLING
EV Battery Cooling / From: KG446857 		$199.58 1
10E920B LR115522
FAN - AUXILIARY COOLING
Converter Cooling / From: KG446857 		$199.58 1
9155 LR115526
FOAM - SEALING
Air Inlet (Recirculation) / From: KG446857 		$11.23 1
10723 LR128845
TRAY - BATTERY
Lower / From: KG446857 		$150.39 1
