Electrical Wiring - Engine And Dash (Engine) (2.0L 16V Tivct T/C 240Ps Petrol, Changsu (China))...

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Electrical Wiring - Engine And Dash (Engine) (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China))...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108166 BOLT $0.72 IN STOCK
Photo Part No Description Price (each) Stock
FN106042 NUT $1.07 IN STOCK
Photo Part No Description Price (each) Stock
LR023697 SCREW $0.56 To Order
Photo Part No Description Price (each) Stock
RYG500160 SCREW $0.64 To Order
Photo Part No Description Price (each) Stock
LR068877 STUD $4.84 To Order
Photo Part No Description Price (each) Stock
LR045800 WIRING - FUEL SHUT OFF $83.53 To Order
Photo Part No Description Price (each) Stock
LR070084 WIRING - ENGINE $2,647.22 To Order
Photo Part No Description Price (each) Stock
LR060246 BRACKET - WIRING $13.27 To Order
Photo Part No Description Price (each) Stock
LR026206 STRAP - CABLE $0.62 To Order
Photo Part No Description Price (each) Stock
LR057240 BRACKET - WIRING $22.99 To Order
Photo Part No Description Price (each) Stock
LR047596 BRACKET - WIRING $7.28 To Order
View All

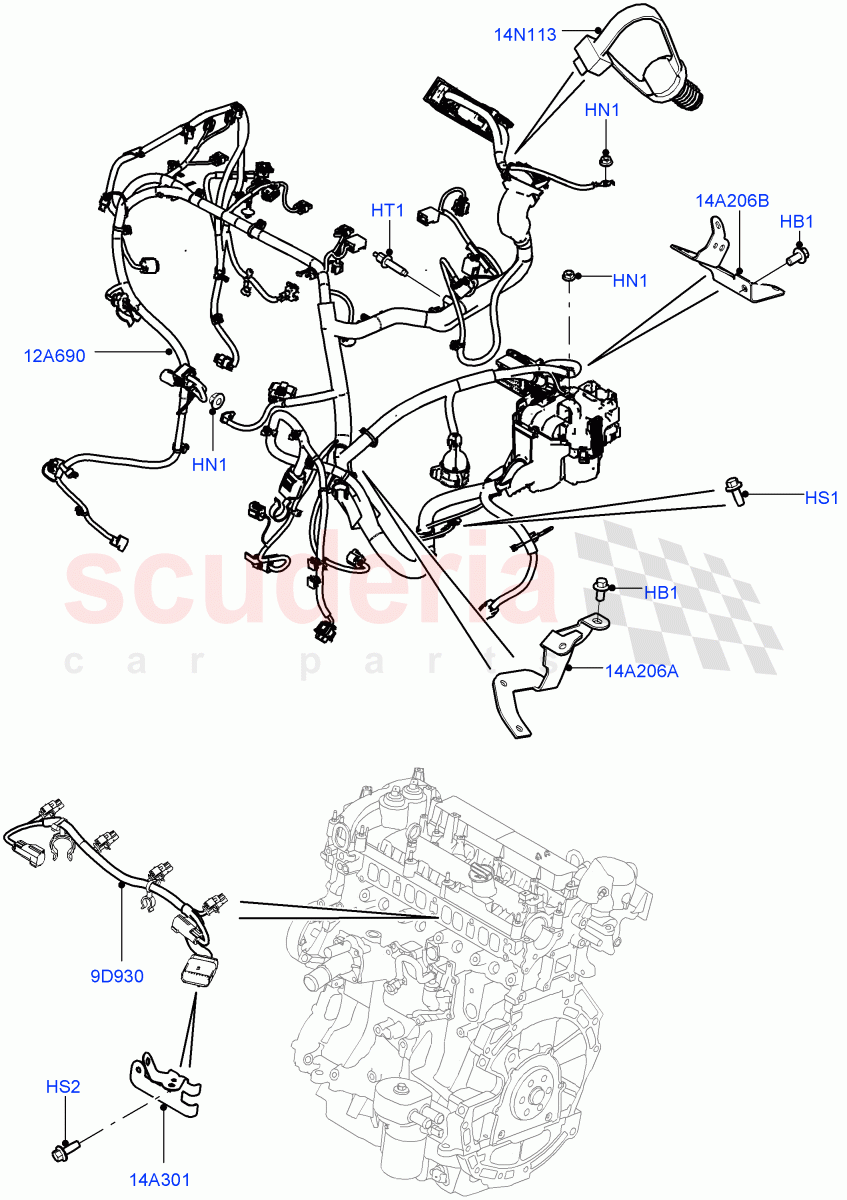

Electrical Wiring - Engine And Dash (Engine) (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMFG000001) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108166
BOLT
Hexagonal Head, M8 X 16MM / From: FG000001
IN STOCK 		$0.72 1
HN1 FN106042
NUT
Hexagonal Head, M6 / From: FG000001
IN STOCK 		$1.07 1
HS1 LR023697
SCREW
M6 X 16MM / From: FG000001 		$0.56 1
HS2 RYG500160
SCREW
Hexagonal Head, M6 X 14MM / From: FG000001 		$0.64 1
HT1 LR068877
STUD
Stud M6x15 + M6x22 / From: FG000001 		$4.84 1
9D930 LR045800
WIRING - FUEL SHUT OFF
9 Speed Auto AWD / Fuel Shut Off / From: FG000001 		$83.53 1
12A690 LR070084
WIRING - ENGINE
EU2, Starter - Stop/Start System / From: FG000001 		$2,647.22 1
14A206A LR057240
BRACKET - WIRING
9 Speed Auto AWD / From: FG000001 		$22.99 1
14A206B LR047596
BRACKET - WIRING
9 Speed Auto AWD / From: FG000001 		$7.28 1
14A301 LR060246
BRACKET - WIRING
From: FG000001 		$13.27 1
14N113 LR026206
STRAP - CABLE
From: FG000001 		$0.62 1
