Hybrid Electrical Modules (Onboard Battery Charger And Charge Inlet) (Changsu (China), Electric...

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Hybrid Electrical Modules (Onboard Battery Charger And Charge Inlet) (Changsu (China), Electric...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR139125 BOLT $1.05 To Order
Photo Part No Description Price (each) Stock
RYG500160 SCREW $0.64 To Order
Photo Part No Description Price (each) Stock
LR146581 WIRING - TRACTION BATTERY $60.45 To Order
Photo Part No Description Price (each) Stock
LR135608 TUBE - BREATHER $86.04 To Order
Photo Part No Description Price (each) Stock
LR135604 TUBE - BREATHER $42.82 To Order
Photo Part No Description Price (each) Stock
LR147832 JUNCTION BOX $2,834.07 To Order
LR162693 JUNCTION BOX $2,587.72 To Order
Photo Part No Description Price (each) Stock
LR135613 BRACKET - INTEGRATED BOX $133.81 To Order
Photo Part No Description Price (each) Stock
LR135614 BRACKET - INTEGRATED BOX $39.83 To Order
Photo Part No Description Price (each) Stock
LR135615 BRACKET - INTEGRATED BOX $26.55 To Order
View All

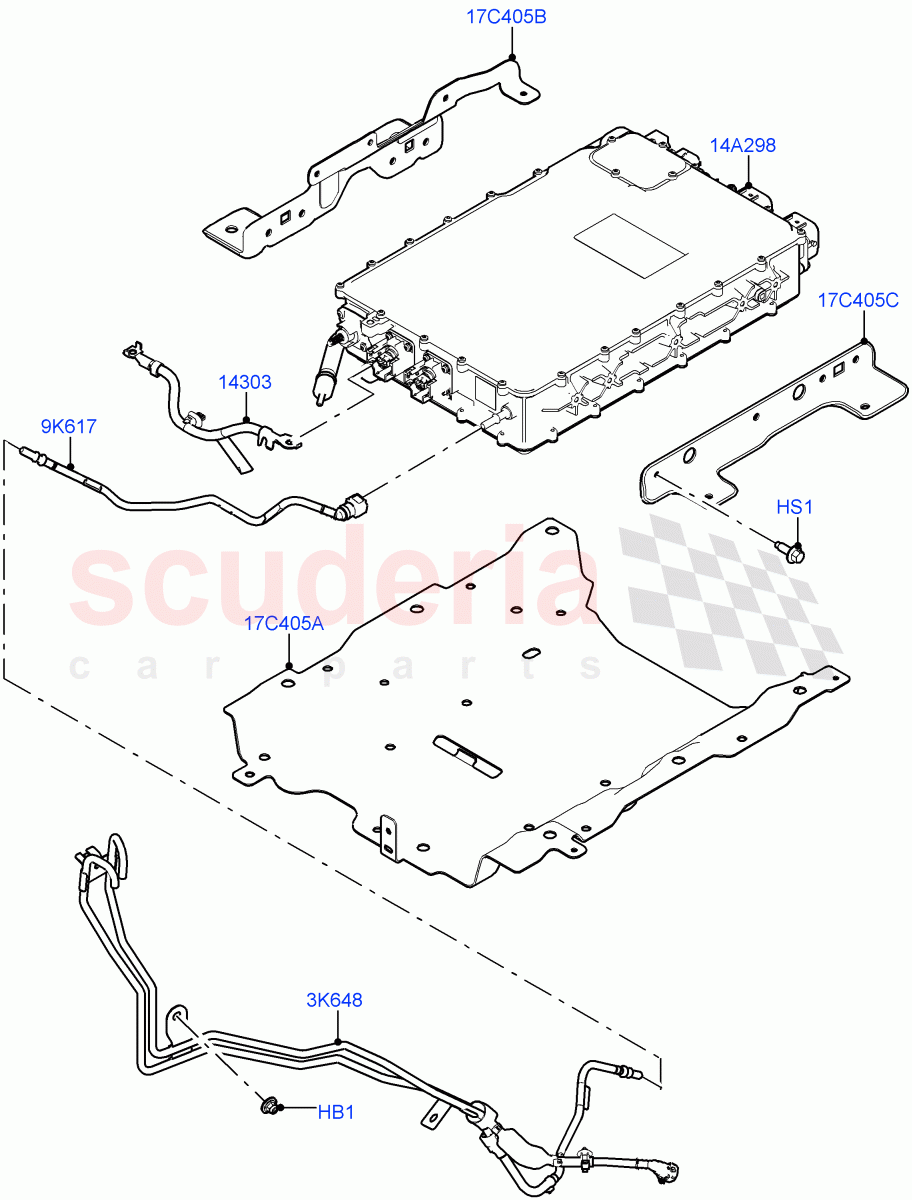

Hybrid Electrical Modules (Onboard Battery Charger And Charge Inlet) (Changsu (China), Electric Engine Battery-PHEV) ((V) FROMKG446857) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR139125
BOLT
M6X16 / From: KG446857 		$1.05 3
HS1 RYG500160
SCREW
Hexagonal Head, M6 X 14MM / From: KG446857 		$0.64 8
3K648 LR135608
TUBE - BREATHER
Battery Charger Inlet, To Engine Bay 		$86.04 1
9K617 LR135604
TUBE - BREATHER
Battery Charger Inlet, Front 		$42.82 1
14A298 LR147832
JUNCTION BOX
Incorporates Battery Charging Control Module and DC-DC (EPIC-D) / From: KG446857 / To: MG140568 		$2,834.07 1
14A298 LR162693
JUNCTION BOX
Incorporates Battery Charging Control Module and DC-DC (EPIC-D) / From: MG140569 		$2,587.72 1
17C405A LR135613
BRACKET - INTEGRATED BOX
Lower 		$133.81 1
17C405B LR135614
BRACKET - INTEGRATED BOX
Right Side 		$39.83 1
17C405C LR135615
BRACKET - INTEGRATED BOX
Left Side 		$26.55 1
14303 LR146581
WIRING - TRACTION BATTERY
Ground Wire 		$60.45 1
