Hybrid Electrical Modules (Traction Battery) (Changsu (China), Electric Engine Battery-Phev) ((V)...

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3]

Find Your Part

Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] - Hybrid Electrical Modules (Traction Battery) (Changsu (China), Electric Engine Battery-PHEV) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR140065 BOLT AND WASHER - HEX.HEAD $2.60 To Order
Photo Part No Description Price (each) Stock
LR135835 BOLT $1.25 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.48 IN STOCK
Photo Part No Description Price (each) Stock
LR132261 SCREW $1.38 To Order
Photo Part No Description Price (each) Stock
LR137307 FUSE - MASTER SERVICE DISCONNECT $246.62 To Order
Photo Part No Description Price (each) Stock
LR135349 WIRING - TRACTION BATTERY $20.73 To Order
LR156728 WIRING - TRACTION BATTERY $20.73 To Order
Photo Part No Description Price (each) Stock
LR135607 TUBE - BREATHER $60.47 To Order
Photo Part No Description Price (each) Stock
LR137378 SEAL $14.64 To Order
Photo Part No Description Price (each) Stock
LR137300 COVER - FUSE BOX $25.51 To Order
Photo Part No Description Price (each) Stock
LR135611 HYBRID BATTERY MODULE $12,852.57 To Order
LR155459 HYBRID BATTERY MODULE $11,351.87 To Order
View All

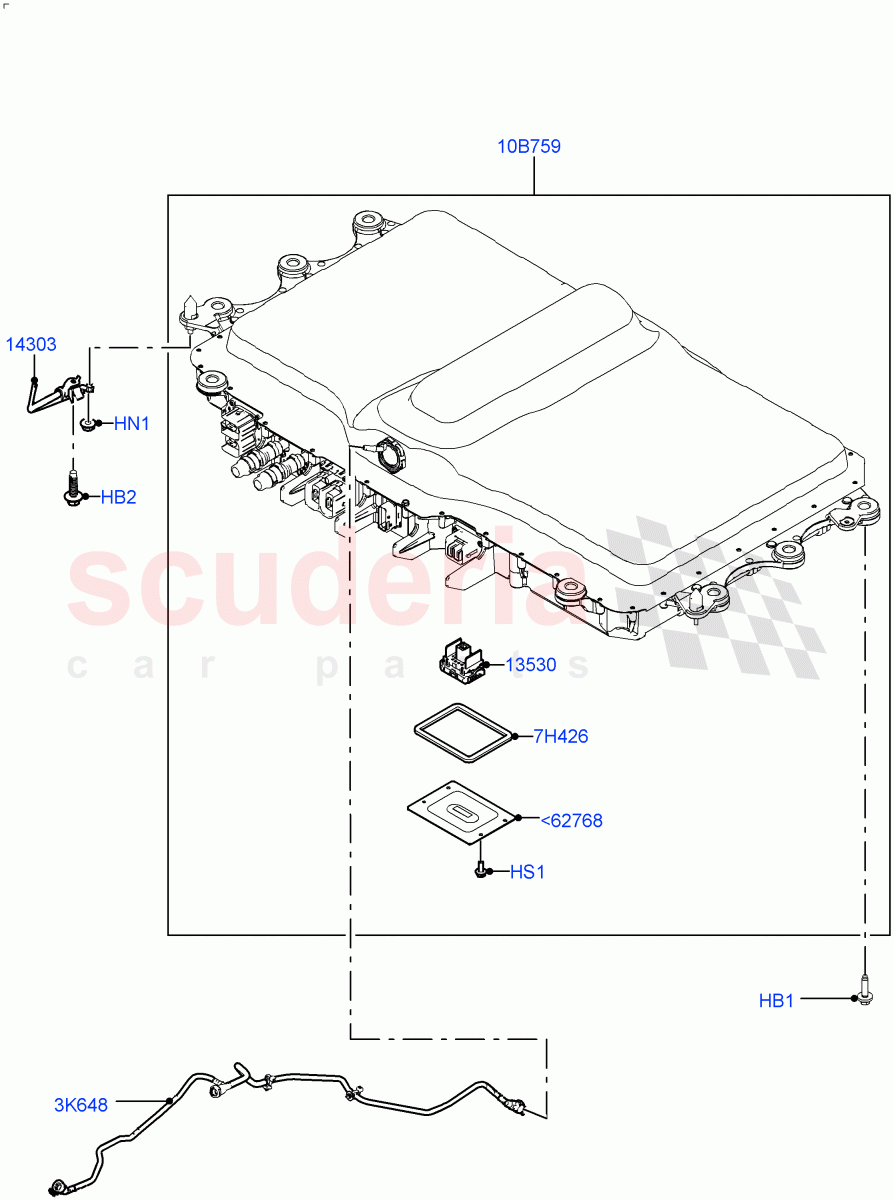

Hybrid Electrical Modules (Traction Battery) (Changsu (China), Electric Engine Battery-PHEV) ((V) FROMKG446857) of Land Rover Land Rover Discovery Sport (2015+) [1.5 I3 Turbo Petrol AJ20P3] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<62768 LR137300
COVER - FUSE BOX
Master Service Disconnect / From: KG446857 		$25.51 1
HB1 LR140065
BOLT AND WASHER - HEX.HEAD
Hexagonal Head, M10 x 40MM / From: KG446857 		$2.60 8
HB2 LR135835
BOLT
Ground Link, M8x24, To Body / From: KG446857 		$1.25 1
HN1 FN106046
NUT - HEX.
Ground Link, Hexagonal Head, M6, To Battery / From: KG446857
IN STOCK 		$1.48 1
HS1 LR132261
SCREW
Cover, M8 X 1.25, Master Service Disconnect / From: KG446857 		$1.38 4
3K648 LR135607
TUBE - BREATHER
Front, Inverter / From: KG446857 		$60.47 1
7H426 LR137378
SEAL
Cover, Master Service Disconnect / From: KG446857 		$14.64 1
10B759 LR135611
HYBRID BATTERY MODULE
From: KG446857 / To: MG140568 		$12,852.57 1
10B759 LR155459
HYBRID BATTERY MODULE
From: MG140569 		$11,351.87 1
13530 LR137307
FUSE - MASTER SERVICE DISCONNECT
From: KG446857 		$246.62 1
14303 LR135349
WIRING - TRACTION BATTERY
Ground Wire / From: KG446857 / To: MG140568 		$20.73 1
14303 LR156728
WIRING - TRACTION BATTERY
Ground Wire / From: MG140569 		$20.73 1
