Differential Assembly (90" Wheelbase) ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Differential Assembly (90" Wheelbase) ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
TBB000250 DIFFERENTIAL - FRONT $2,465.10 To Order
LR008859 DIFFERENTIAL $753.44 To Order
TBB000280 DIFFERENTIAL $1,632.20 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
FRC4112 HOUSING - DIFF. LOCK SHIFT $584.25 To Order
FRC4112 HOUSING - DIFF. LOCK SHIFT $584.25 To Order
LR049201 HOUSING - DIFF. LOCK SHIFT $1,369.11 To Order
Photo Part No Description Price (each) Stock
UYG500060 BOLT $1.21 To Order
Photo Part No Description Price (each) Stock
TYU100110 DOWEL $1.79 To Order
Photo Part No Description Price (each) Stock
TYS100870 SHIM $28.04 To Order
TYS100900 SHIM $12.99 To Order
TYS100940 SHIM $12.99 To Order
...and 16 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
FTC4210 RING $32.36 To Order
Photo Part No Description Price (each) Stock
576159 PIN - ROLL $0.53 To Order
Photo Part No Description Price (each) Stock
FRC5661 WASHER - TAB $16.68 To Order
Photo Part No Description Price (each) Stock
NY606042 LOCKNUT $0.67 To Order
Photo Part No Description Price (each) Stock
539707 BEARING - ROLLER $45.36 To Order
Photo Part No Description Price (each) Stock
539745 SPACER - PINION BEARING $19.62 To Order
Photo Part No Description Price (each) Stock
FTC5258 SEAL $30.50 To Order
Photo Part No Description Price (each) Stock
TXW500010 FLANGE - DRIVE $179.28 To Order
Photo Part No Description Price (each) Stock
TBA500010 SHIELD $4.28 To Order
LR017552 SHIELD $19.94 To Order
Photo Part No Description Price (each) Stock
FTC5413 WASHER $7.83 To Order
Photo Part No Description Price (each) Stock
FS112306P BOLT $1.04 To Order
Photo Part No Description Price (each) Stock
TCF000410 WASHER - THRUST $4.26 To Order
View All

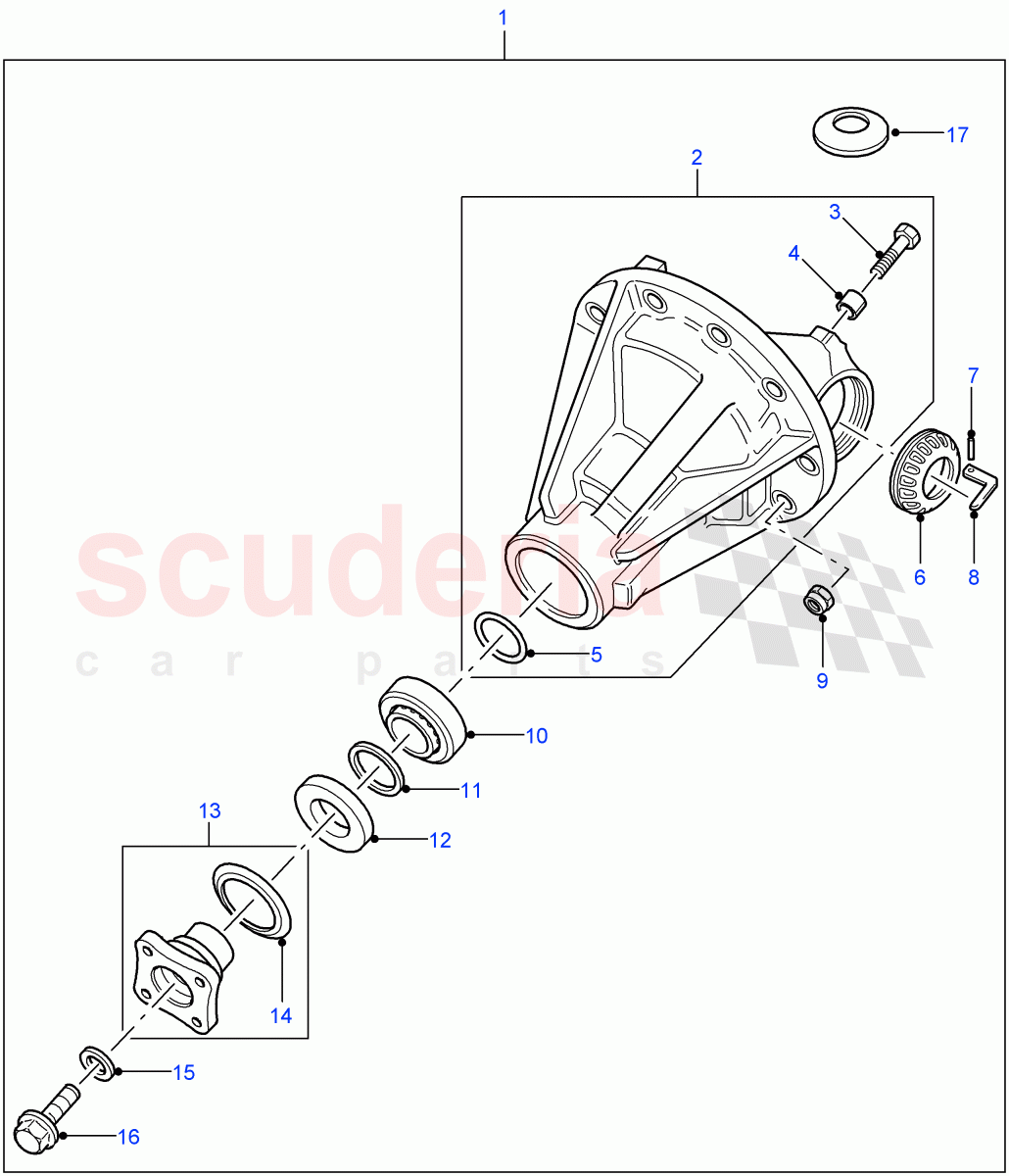

Differential Assembly (90" Wheelbase) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 TBB000250
DIFFERENTIAL - FRONT
Rear Axle Differential - 2 Pin / New Part-Please Check For Reman Version / To: BA822269 		$2,465.10 1
1 LR008859
DIFFERENTIAL
Rear Axle Differential - 2 Pin / Remanufactured Part / To: BA822269 		$753.44 1
1 TBB000280
DIFFERENTIAL
Less Anti-Lock Braking System, Rear Axle Differential - 4 Pin / New Part-Please Check For Reman Version 		$1,632.20 1
1 LR009498
CARRIER - DIFFERENTIAL
Less Anti-Lock Braking System, Rear Axle Differential - 4 Pin / Remanufactured Part 		$1,222.02 1
1 LR027943
CARRIER - DIFFERENTIAL
Rear Axle Differential - 2 Pin / New Part-Please Check For Reman Version / From: BA822270 		$2,260.13 1
1 LR032352
CARRIER - DIFFERENTIAL
Rear Axle Differential - 2 Pin / Remanufactured Part / From: BA822270 		$1,242.36 1
2 FRC4112
HOUSING - DIFF. LOCK SHIFT
To: CA999999 		$584.25 1
2 FRC4112
HOUSING - DIFF. LOCK SHIFT
Rear Axle Differential - 2 Pin / From: DA000001 		$584.25 1
2 LR049201
HOUSING - DIFF. LOCK SHIFT
Rear Axle Differential - 4 Pin / From: DA000001 		$1,369.11 1
3 UYG500060
BOLT
M12 x 60 		$1.21 4
4 TYU100110
DOWEL 		$1.79 4
5 TYS100870
SHIM
2.255mm, Inner Diameter 64MM, Metric 		$28.04 -
5 TYS100900
SHIM
2.210mm, Inner Diameter 64MM, Metric 		$12.99 -
5 TYS100940
SHIM
2.150mm, Inner Diameter 64MM, Metric 		$12.99 -
5 TYS100970
SHIM
2.105mm, Inner Diameter 64MM, Metric 		$28.04 -
5 TYS101000
SHIM
2.060mm, Inner Diameter 64MM, Metric 		$28.04 -
5 TYS101040
SHIM - DIFFERENTIAL DRIVING GR BRG
2.155MM, Inner Diameter 32.5MM, Metric 		$36.66 -
5 TYS101060
SHIM - DIFFERENTIAL DRIVING GR BRG
2.105mm, Inner Diameter 32.5MM, Metric 		$18.40 -
5 TYS101080
SHIM - DIFFERENTIAL DRIVING GR BRG
2.055mm, Inner Diameter 32.5MM, Metric 		$32.11 -
5 TYS101100
SHIM - DIFFERENTIAL DRIVING GR BRG
2.005mm, Inner Diameter 32.5MM, Metric 		$18.40 -
5 TYS101120
SHIM - DIFFERENTIAL DRIVING GR BRG
1.955mm, Inner Diameter 32.5MM, Metric 		$18.40 -
5 TYS101140
SHIM - DIFFERENTIAL DRIVING GR BRG
1.905mm, Inner Diameter 32.5MM, Metric 		$27.32 -
5 TYS101160
SHIM - DIFFERENTIAL DRIVING GR BRG
1.855mm, Inner Diameter 32.5MM, Metric 		$21.56 -
5 TYS101180
SHIM - DIFFERENTIAL DRIVING GR BRG
1.805mm, Inner Diameter 32.5MM, Metric 		$21.56 -
5 TYS101200
SHIM - DIFFERENTIAL DRIVING GR BRG
1.755mm, Inner Diameter 32.5MM, Metric 		$35.89 -
5 TYS101220
SHIM - DIFFERENTIAL DRIVING GR BRG
1.705mm, Inner Diameter 32.5MM, Metric 		$35.89 -
5 TYS101240
SHIM - DIFFERENTIAL DRIVING GR BRG
1.655mm, Inner Diameter 32.5MM, Metric 		$21.56 -
5 TYS101260
SHIM - DIFFERENTIAL DRIVING GR BRG
1.605mm, Inner Diameter 32.5MM, Metric 		$9.98 -
5 TYS101280
SHIM - DIFFERENTIAL DRIVING GR BRG
1.555mm, Inner Diameter 32.5MM, Metric 		$21.56 -
5 TYS101300
SHIM - DIFFERENTIAL DRIVING GR BRG
1.505mm, Inner Diameter 32.5MM, Metric 		$28.08 -
6 FTC4210
RING 		$32.36 2
7 576159
PIN - ROLL 		$0.53 2
8 FRC5661
WASHER - TAB 		$16.68 2
9 NY606042
LOCKNUT
3/8, Hexagonal Head, nyloc, UNF 		$0.67 10
10 539707
BEARING - ROLLER 		$45.36 1
11 539745
SPACER - PINION BEARING 		$19.62 1
12 FTC5258
SEAL 		$30.50 1
13 TXW500010
FLANGE - DRIVE 		$179.28 1
14 TBA500010
SHIELD
To: 9A777776 		$4.28 1
14 LR017552
SHIELD
From: 9A777777 		$19.94 1
15 FTC5413
WASHER 		$7.83 1
16 FS112306P
BOLT
M12 x 30 		$1.04 1
17 TCF000410
WASHER - THRUST 		$4.26 4
