Crownwheel And Pinion (Axle Differential - Front 4 Pin) ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Crownwheel And Pinion (Axle Differential - Front 4 Pin) ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

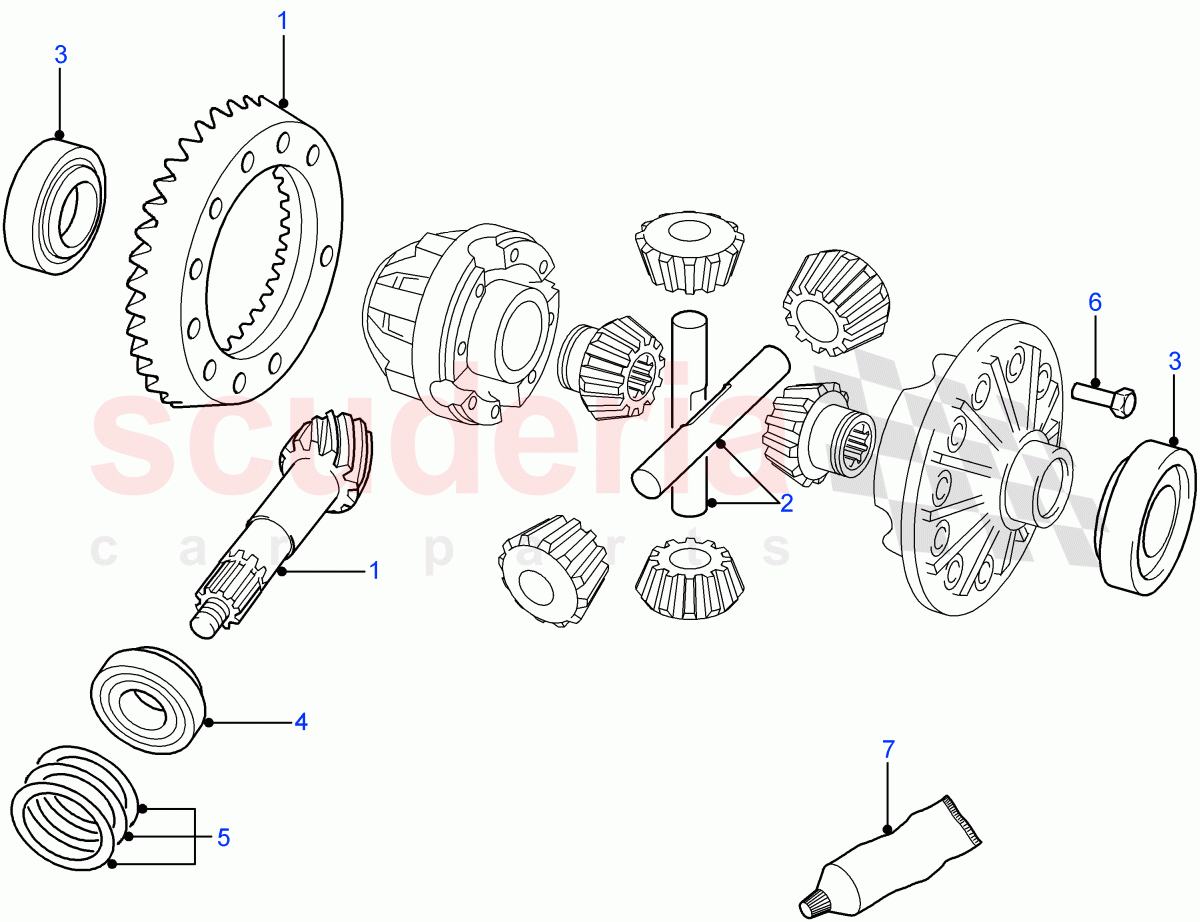

Crownwheel And Pinion (Axle Differential - Front 4 Pin) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 TBH100050
GEAR AND PINION - DRIVING
To: BA400434 		$525.75 1
1 LR027529
GEAR AND PINION - DRIVING
From: BA400435 		$365.81 1
2 TCD100070
SHAFT - DIFFERENTIAL PINION 		$554.17 2
3 RTC3095
BEARING - DIFFERENTIAL 		$108.27 2
4 539706
BEARING - ROLLER 		$97.54 1
5 TYS100870
SHIM
2.255mm, Inner Diameter 64MM, Metric 		$28.77 -
5 TYS100900
SHIM
2.210mm, Inner Diameter 64MM, Metric 		$28.77 -
5 TYS100940
SHIM
2.150mm, Inner Diameter 64MM, Metric 		$28.77 -
5 TYS100970
SHIM
2.105mm, Inner Diameter 64MM, Metric 		$28.77 -
5 TYS101000
SHIM
2.060mm, Inner Diameter 64MM, Metric 		$28.77 -
5 TYS101040
SHIM - DIFFERENTIAL DRIVING GR BRG
2.155MM, Inner Diameter 32.5MM, Metric 		$34.52 -
5 TYS101060
SHIM - DIFFERENTIAL DRIVING GR BRG
2.105mm, Inner Diameter 32.5MM, Metric 		$18.59 -
5 TYS101080
SHIM - DIFFERENTIAL DRIVING GR BRG
2.055mm, Inner Diameter 32.5MM, Metric 		$31.69 -
5 TYS101100
SHIM - DIFFERENTIAL DRIVING GR BRG
2.005mm, Inner Diameter 32.5MM, Metric 		$18.59 -
5 TYS101120
SHIM - DIFFERENTIAL DRIVING GR BRG
1.955mm, Inner Diameter 32.5MM, Metric 		$18.59 -
5 TYS101140
SHIM - DIFFERENTIAL DRIVING GR BRG
1.905mm, Inner Diameter 32.5MM, Metric 		$25.73 -
5 TYS101160
SHIM - DIFFERENTIAL DRIVING GR BRG
1.855mm, Inner Diameter 32.5MM, Metric 		$20.34 -
5 TYS101180
SHIM - DIFFERENTIAL DRIVING GR BRG
1.805mm, Inner Diameter 32.5MM, Metric 		$20.34 -
5 TYS101200
SHIM - DIFFERENTIAL DRIVING GR BRG
1.755mm, Inner Diameter 32.5MM, Metric 		$33.79 -
5 TYS101220
SHIM - DIFFERENTIAL DRIVING GR BRG
1.705mm, Inner Diameter 32.5MM, Metric 		$33.79 -
5 TYS101240
SHIM - DIFFERENTIAL DRIVING GR BRG
1.655mm, Inner Diameter 32.5MM, Metric 		$20.34 -
5 TYS101260
SHIM - DIFFERENTIAL DRIVING GR BRG
1.605mm, Inner Diameter 32.5MM, Metric 		$20.34 -
5 TYS101280
SHIM - DIFFERENTIAL DRIVING GR BRG
1.555mm, Inner Diameter 32.5MM, Metric 		$20.34 -
5 TYS101300
SHIM - DIFFERENTIAL DRIVING GR BRG
1.505mm, Inner Diameter 32.5MM, Metric 		$27.70 -
6 FTC5150
BOLT
3/8UNF 		$1.56 10
7 RTC3254
SEALER 		$43.56 -
