Swivel Pin Housing ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Swivel Pin Housing ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FTC5297 HOUSING $444.15 To Order
FTC5298 HOUSING $309.87 To Order
Photo Part No Description Price (each) Stock
3292 PLUG - OIL LEVEL INDICATOR $27.33 To Order
Photo Part No Description Price (each) Stock
FRC2883 SHIM $4.98 To Order
FRC2884 SHIM $4.98 To Order
FRC2885 SHIM $4.98 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
TAR100040 KIT - RETAINING PIN $69.58 IN STOCK
TAR100050 KIT - RETAINING PIN $171.23 To Order
Photo Part No Description Price (each) Stock
SHU000040 BRACKET $18.71 IN STOCK
SHU000050 BRACKET $39.12 IN STOCK
Photo Part No Description Price (each) Stock
BX110071M BOLT $4.27 To Order
BX110076M BOLT $8.68 To Order
Photo Part No Description Price (each) Stock
FRC2894 PIN - FASTENING $168.74 To Order
Photo Part No Description Price (each) Stock
FTC3647 GASKET $4.67 IN STOCK
Photo Part No Description Price (each) Stock
606666 BEARING - ROLLER $47.25 To Order
Photo Part No Description Price (each) Stock
FRC3725 BRACKET $15.45 To Order
Photo Part No Description Price (each) Stock
FS108307L SCREW $2.73 To Order
Photo Part No Description Price (each) Stock
SH112505 SCREW $4.27 To Order
Photo Part No Description Price (each) Stock
WB112081L WASHER $0.59 To Order
Photo Part No Description Price (each) Stock
FN112046 NUT $2.65 To Order
Photo Part No Description Price (each) Stock
FTC3154 AXLE - FRONT $169.46 To Order
Photo Part No Description Price (each) Stock
FTC56 WASHER - THRUST $21.75 To Order
Photo Part No Description Price (each) Stock
FTC5268 SEAL $11.38 To Order
Photo Part No Description Price (each) Stock
FTC861 BEARING - CAMSHAFT $26.58 To Order
Photo Part No Description Price (each) Stock
FTC3648 GASKET $2.04 To Order
FTC3650 GASKET $6.15 To Order
Photo Part No Description Price (each) Stock
SX110256M SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
TYX100570 O-RING $5.24 To Order
Photo Part No Description Price (each) Stock
FTC1376 SEAL $19.61 To Order
Photo Part No Description Price (each) Stock
LR029522 CLIP - WIRING $29.66 IN STOCK
LR029522 CLIP - WIRING $29.66 IN STOCK
Photo Part No Description Price (each) Stock
STC3435 GREASE - HIGH TEMPERATURE $19.00 To Order
View All

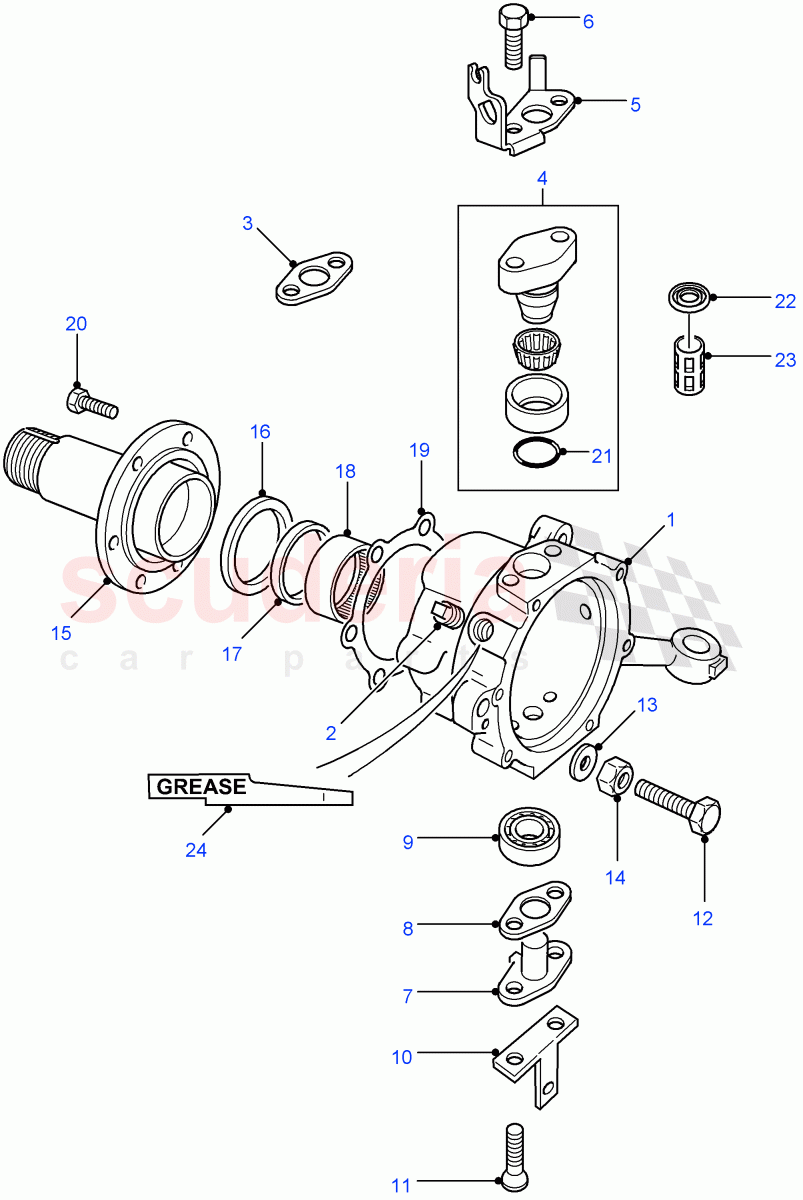

Swivel Pin Housing ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 FTC5297
HOUSING
LH 		$444.15 1
1 FTC5298
HOUSING
RH 		$309.87 1
2 3292
PLUG - OIL LEVEL INDICATOR 		$27.33 1
3 FRC2883
SHIM
0.003" 		$4.98 2
3 FRC2884
SHIM
0.005" 		$4.98 2
3 FRC2885
SHIM
0.01" 		$4.98 2
3 FRC2886
SHIM
0.03" 		$4.98 2
4 TAR100040
KIT - RETAINING PIN
Less Anti-Lock Braking System
IN STOCK 		$69.58 2
4 TAR100050
KIT - RETAINING PIN
4 Wheel Anti-Lock Braking System 		$171.23 2
5 SHU000040
BRACKET
RH
IN STOCK 		$18.71 1
5 SHU000050
BRACKET
LH
IN STOCK 		$39.12 1
6 BX110071M
BOLT
Hexagonal Head, M10 x 35 / To: 7A999999 		$4.27 4
6 BX110076M
BOLT
Hexagonal Head, M10 x 35 / From: 8A000001 		$8.68 4
7 FRC2894
PIN - FASTENING
Lower 		$168.74 2
8 FTC3647
GASKET
Asbestos Free
IN STOCK 		$4.67 2
9 606666
BEARING - ROLLER
Lower 		$47.25 4
10 FRC3725
BRACKET 		$15.45 2
11 FS108307L
SCREW
Hexagonal Head, M8 		$2.73 4
12 SH112505
SCREW
Hexagonal Head, M12 x 50, Shouldered 		$4.27 2
13 WB112081L
WASHER
M12 x 22 		$0.59 2
14 FN112046
NUT
M12 		$2.65 2
15 FTC3154
AXLE - FRONT 		$169.46 2
16 FTC56
WASHER - THRUST 		$21.75 2
17 FTC5268
SEAL
Inner 		$11.38 2
18 FTC861
BEARING - CAMSHAFT
swivel pin housing 		$26.58 2
19 FTC3648
GASKET
Less Anti-Lock Braking System / Asbestos Free 		$2.04 2
19 FTC3650
GASKET
4 Wheel Anti-Lock Braking System / Asbestos Free 		$6.15 2
20 SX110256M
SCREW
Hexagonal Head, M10 x 25 		$0.68 12
21 TYX100570
O-RING 		$5.24 2
22 FTC1376
SEAL
4 Wheel Anti-Lock Braking System 		$19.61 1
23 LR029522
CLIP - WIRING
4 Wheel Anti-Lock Braking System / antilock brake system sensor / To: BA888887
IN STOCK 		$29.66 1
23 LR029522
CLIP - WIRING
4 Wheel Anti-Lock Braking System / antilock brake system sensor / From: BA888888
IN STOCK 		$29.66 1
24 STC3435
GREASE - HIGH TEMPERATURE
375cc, Can Be Used Instead Of Oil In Swivel Pin Housing, one shot 		$19.00 1
