Crownwheel And Pinion - 4 Pinion (130" Wheelbase, 110" Wheelbase) ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Crownwheel And Pinion - 4 Pinion (130" Wheelbase, 110" Wheelbase) ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
STC3894 GEAR AND PINION - DRIVING $407.47 To Order
LR027528 GEAR AND PINION - DRIVING $348.11 To Order
Photo Part No Description Price (each) Stock
TCD100070 SHAFT - DIFFERENTIAL PINION $554.17 To Order
Photo Part No Description Price (each) Stock
RTC3095 BEARING - DIFFERENTIAL $108.27 To Order
Photo Part No Description Price (each) Stock
STC1156 BEARING - ROLLER $175.84 To Order
Photo Part No Description Price (each) Stock
TYS100870 SHIM $28.77 To Order
TYS100900 SHIM $28.77 To Order
TYS100940 SHIM $28.77 To Order
...and 16 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
FTC5150 BOLT $1.56 To Order
Photo Part No Description Price (each) Stock
RTC3254 SEALER $43.56 To Order
Photo Part No Description Price (each) Stock
TBF000170 DIFFERENTIAL AND CARRIER $578.58 To Order
Photo Part No Description Price (each) Stock
FTC3492 GEAR - DIFFERENTIAL SIDE $84.08 To Order
Photo Part No Description Price (each) Stock
TCB000100 GEAR - DIFFERENTIAL SIDE $18.70 To Order
Photo Part No Description Price (each) Stock
TCF000410 WASHER - THRUST $4.25 To Order
Photo Part No Description Price (each) Stock
TCF000400 WASHER - THRUST $13.47 To Order
View All

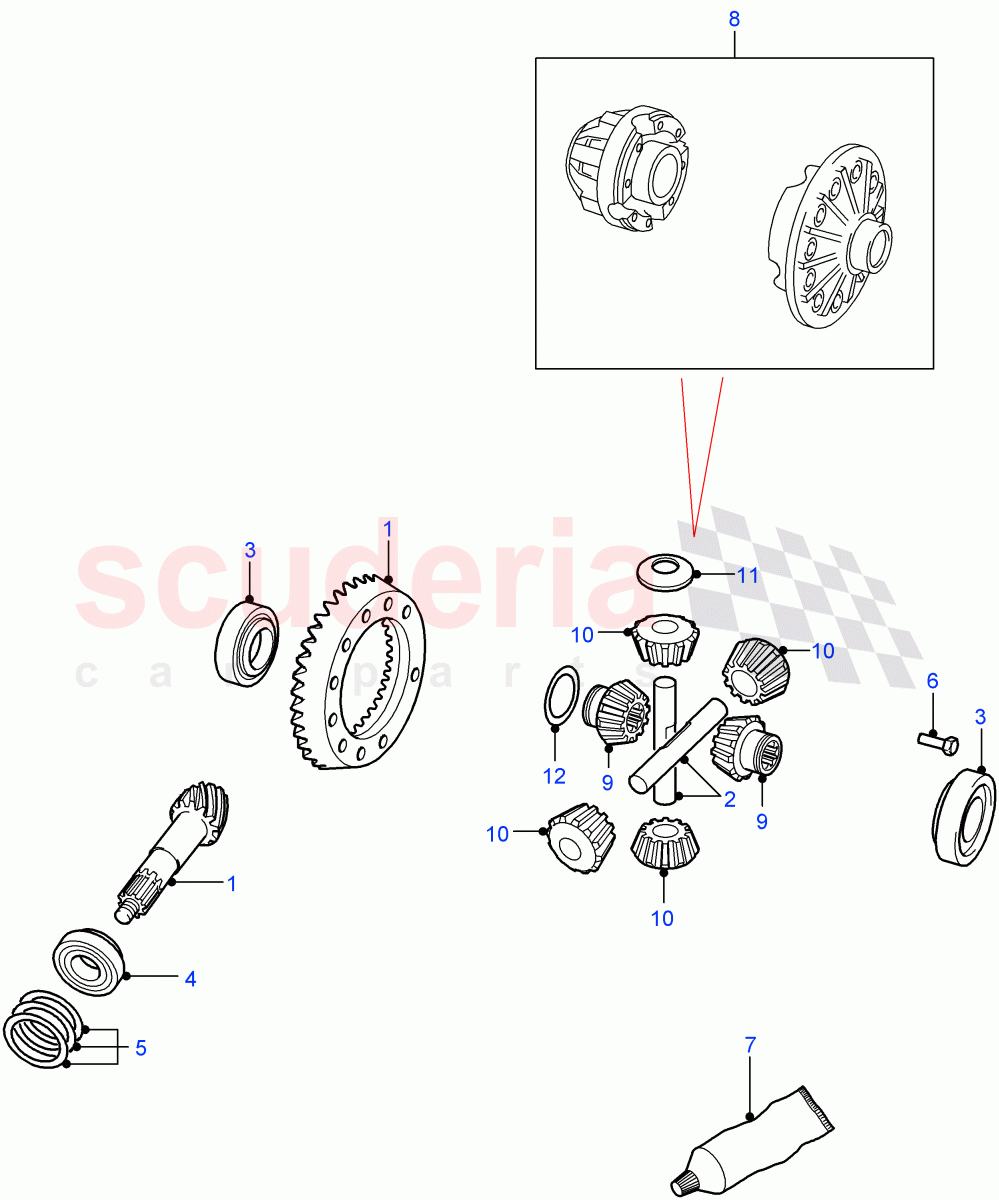

Crownwheel And Pinion - 4 Pinion (130" Wheelbase, 110" Wheelbase) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 STC3894
GEAR AND PINION - DRIVING
To: BA823579 		$407.47 1
1 LR027528
GEAR AND PINION - DRIVING
From: BA823580 		$348.11 1
2 TCD100070
SHAFT - DIFFERENTIAL PINION 		$554.17 2
3 RTC3095
BEARING - DIFFERENTIAL 		$108.27 2
4 STC1156
BEARING - ROLLER 		$175.84 1
5 TYS100870
SHIM
2.255mm, Inner Diameter 64MM, Metric 		$28.77 -
5 TYS100900
SHIM
2.210mm, Inner Diameter 64MM, Metric 		$28.77 -
5 TYS100940
SHIM
2.150mm, Inner Diameter 64MM, Metric 		$28.77 -
5 TYS100970
SHIM
2.105mm, Inner Diameter 64MM, Metric 		$28.77 -
5 TYS101000
SHIM
2.060mm, Inner Diameter 64MM, Metric 		$28.77 -
5 TYS101040
SHIM - DIFFERENTIAL DRIVING GR BRG
2.155MM, Inner Diameter 32.5MM, Metric 		$34.52 -
5 TYS101060
SHIM - DIFFERENTIAL DRIVING GR BRG
2.105mm, Inner Diameter 32.5MM, Metric 		$18.59 -
5 TYS101080
SHIM - DIFFERENTIAL DRIVING GR BRG
2.055mm, Inner Diameter 32.5MM, Metric 		$31.69 -
5 TYS101100
SHIM - DIFFERENTIAL DRIVING GR BRG
2.005mm, Inner Diameter 32.5MM, Metric 		$18.59 -
5 TYS101120
SHIM - DIFFERENTIAL DRIVING GR BRG
1.955mm, Inner Diameter 32.5MM, Metric 		$18.59 -
5 TYS101140
SHIM - DIFFERENTIAL DRIVING GR BRG
1.905mm, Inner Diameter 32.5MM, Metric 		$25.73 -
5 TYS101160
SHIM - DIFFERENTIAL DRIVING GR BRG
1.855mm, Inner Diameter 32.5MM, Metric 		$20.34 -
5 TYS101180
SHIM - DIFFERENTIAL DRIVING GR BRG
1.805mm, Inner Diameter 32.5MM, Metric 		$20.34 -
5 TYS101200
SHIM - DIFFERENTIAL DRIVING GR BRG
1.755mm, Inner Diameter 32.5MM, Metric 		$33.79 -
5 TYS101220
SHIM - DIFFERENTIAL DRIVING GR BRG
1.705mm, Inner Diameter 32.5MM, Metric 		$33.79 -
5 TYS101240
SHIM - DIFFERENTIAL DRIVING GR BRG
1.655mm, Inner Diameter 32.5MM, Metric 		$20.34 -
5 TYS101260
SHIM - DIFFERENTIAL DRIVING GR BRG
1.605mm, Inner Diameter 32.5MM, Metric 		$20.34 -
5 TYS101280
SHIM - DIFFERENTIAL DRIVING GR BRG
1.555mm, Inner Diameter 32.5MM, Metric 		$20.34 -
5 TYS101300
SHIM - DIFFERENTIAL DRIVING GR BRG
1.505mm, Inner Diameter 32.5MM, Metric 		$27.70 -
6 FTC5150
BOLT
3/8UNF 		$1.56 10
7 RTC3254
SEALER 		$43.56 -
8 TBF000170
DIFFERENTIAL AND CARRIER 		$578.58 1
9 FTC3492
GEAR - DIFFERENTIAL SIDE 		$84.08 2
10 TCB000100
GEAR - DIFFERENTIAL SIDE 		$18.70 4
11 TCF000410
WASHER - THRUST 		$4.25 4
12 TCF000400
WASHER - THRUST 		$13.47 2
