Name: Propshaft Rear ((V) FROM7A000001)
Rating: 5.0 (1 reviews)

View All

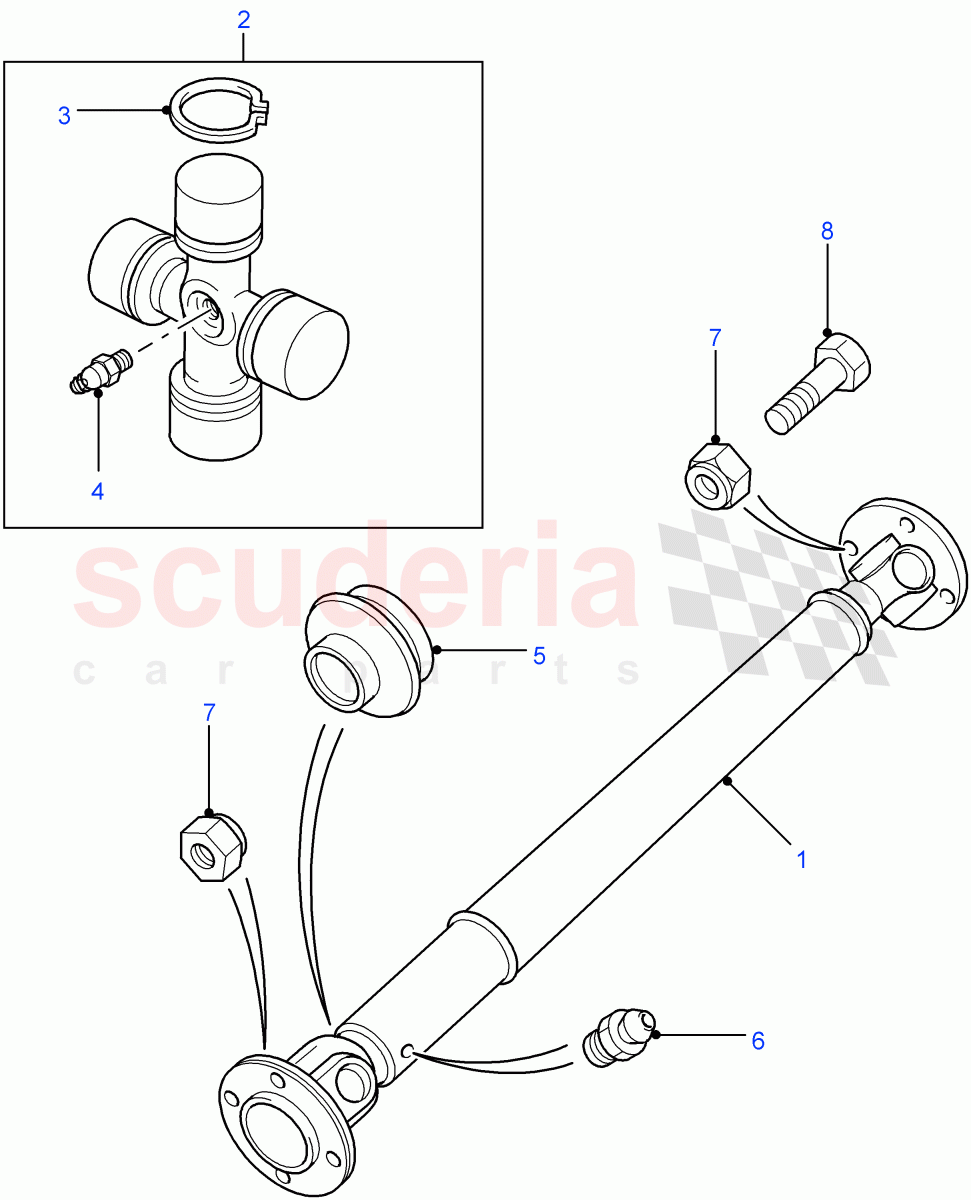

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

...and 4 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	242522	CIRCLIP	$1.41	To Order

Photo	Part No	Description	Price (each)	Stock
	TVK500490	GREASE NIPPLE	$3.97	To Order

Photo	Part No	Description	Price (each)	Stock
	TVE500020	BOOT	$25.33	To Order

Photo	Part No	Description	Price (each)	Stock
	TVK500490	GREASE NIPPLE	$3.97	To Order

Photo	Part No	Description	Price (each)	Stock
	NZ606042	NUT - FLANGED	$0.44	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	TVB500450	SHAFT - MAIN	TVB500450 SHAFT - MAIN 90" Wheelbase / To: 8A761643	$519.52	1
1	TVB500480	SHAFT - DRIVE	TVB500480 SHAFT - DRIVE 110" Wheelbase / To: 8A761643	$488.07	1
1	TVB500490	SHAFT - MAIN	TVB500490 SHAFT - MAIN 130" Wheelbase / To: 8A761643	$528.07	1
1	LR010464	SHAFT - MAIN	LR010464 SHAFT - MAIN 130" Wheelbase / From: 8A761644	$1,352.81	1
1	LR010462	SHAFT - MAIN	LR010462 SHAFT - MAIN 90" Wheelbase / From: 8A761644 / To: CA555554	$576.79	1
1	LR010463	SHAFT - DRIVE	LR010463 SHAFT - DRIVE 110" Wheelbase / From: 8A761644	$899.84	1
1	LR044296	SHAFT - MAIN	LR044296 SHAFT - MAIN 90" Wheelbase / From: CA555555	$1,364.82	1
2	TVC500010	JOINT - UNIVERSAL	TVC500010 JOINT - UNIVERSAL 90" Wheelbase	$122.01	2
2	RTC3458	JOINT - UNIVERSAL	RTC3458 JOINT - UNIVERSAL 110" And 130" Wheelbase	$99.63	2
3	242522	CIRCLIP	242522 CIRCLIP	$1.41	8
4	TVK500490	GREASE NIPPLE	TVK500490 GREASE NIPPLE	$3.97	2
5	TVE500020	BOOT	TVE500020 BOOT	$25.33	1
6	TVK500490	GREASE NIPPLE	TVK500490 GREASE NIPPLE To: 7A732615	$3.97	1
7	NZ606042	NUT - FLANGED	NZ606042 NUT - FLANGED 3/8, UNF	$0.44	8
8	509045P	BOLT	509045P BOLT 3/8, UNF / To: DA427764	$1.95	4
8	LR045409	BOLT	LR045409 BOLT 3/8, UNF / From: DA427765	$2.62	4

Propshaft Rear ((V) From7A000001)

Land Rover Defender (2007-2016)
