Master Cylinder - Brake System

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Master Cylinder - Brake System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR012898 NUT - FLANGED $1.98 To Order
Photo Part No Description Price (each) Stock
LR081598 O-RING $3.23 To Order
LR012972 O-RING $4.19 To Order
LR012972 O-RING $4.19 To Order
Photo Part No Description Price (each) Stock
LR033338 MASTER CYLINDER - BRAKE $333.19 To Order
LR048138 MASTER CYLINDER - BRAKE $333.19 To Order
LR048836 MASTER CYLINDER - BRAKE $367.12 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR033340 CAP - FILLER $54.16 To Order
LR048838 Cap - Filler Enquire To Order
LR091038 CAP - FILLER $47.62 To Order
Photo Part No Description Price (each) Stock
LR038635 FILTER - BRAKE RESERVOIR $11.18 To Order
Photo Part No Description Price (each) Stock
LR146955 SEAL $5.67 To Order
Photo Part No Description Price (each) Stock
LR033628 RESERVOIR - BRAKE FLUID $153.88 To Order
LR048837 RESERVOIR - BRAKE FLUID $97.51 To Order
LR124816 RESERVOIR - BRAKE FLUID $176.53 To Order
View All

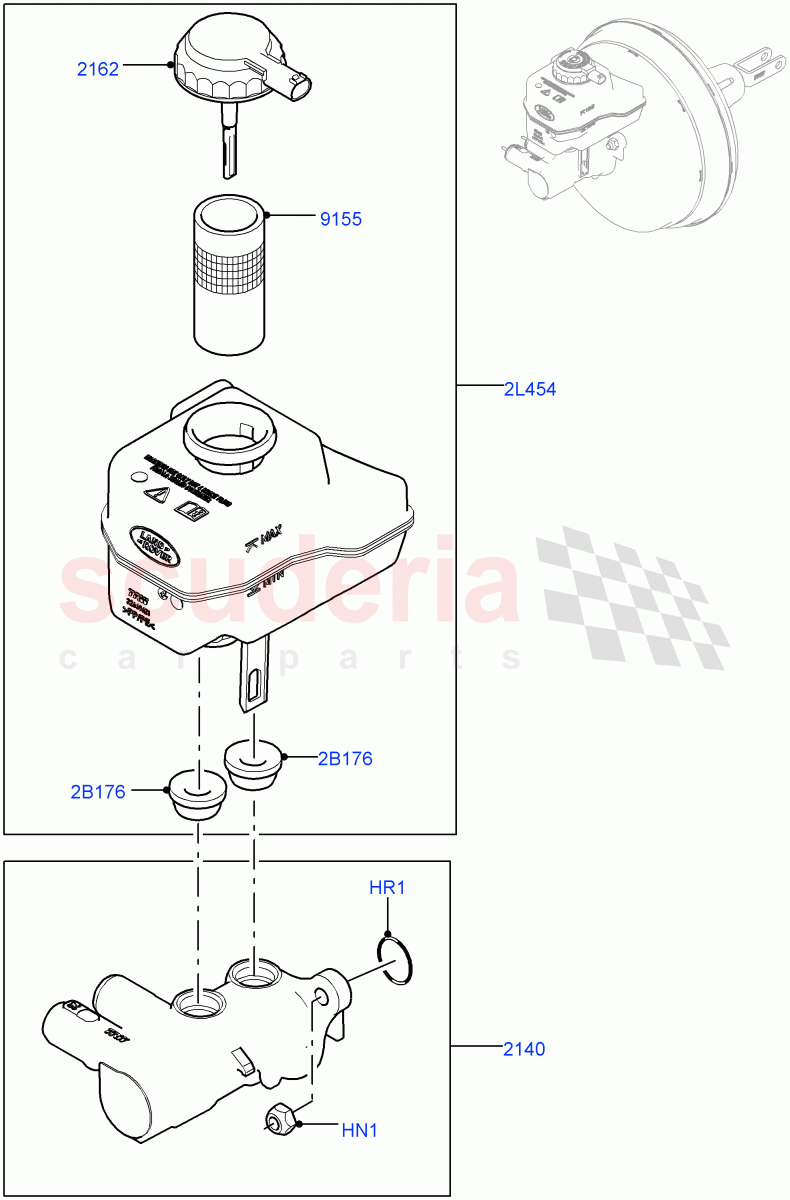

Master Cylinder - Brake System of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 LR012898
NUT - FLANGED
M8 		$1.98 2
HR1 LR081598
O-RING
8 Speed Auto Trans ZF 8HP45 / Brake Master Cylinder / From: HA000001 		$3.23 1
HR1 LR012972
O-RING
Brake Master Cylinder / To: GA999999 		$4.19 1
HR1 LR012972
O-RING
8 Speed Auto Trans ZF 8HP70 HEV 4WD / Brake Master Cylinder / From: HA000001 		$4.19 1
2B176 LR146955
SEAL
8 Speed Auto Trans ZF 8HP76 		$5.67 2
2L454 LR033628
RESERVOIR - BRAKE FLUID
8 Speed Auto Trans ZF 8HP45 / To: KA536805 		$153.88 1
2L454 LR048837
RESERVOIR - BRAKE FLUID
8 Speed Auto Trans ZF 8HP70 HEV 4WD / From: FA000001 		$97.51 1
2L454 LR124816
RESERVOIR - BRAKE FLUID
8 Speed Auto Trans ZF 8HP45 / From: KA536806 		$176.53 1
2140 LR033338
MASTER CYLINDER - BRAKE
8 Speed Auto Trans ZF 8HP45 / Brake / To: DA999999 		$333.19 1
2140 LR048138
MASTER CYLINDER - BRAKE
8 Speed Auto Trans ZF 8HP45 / Brake / From: EA000001 / To: GA999999 		$333.19 1
2140 LR048836
MASTER CYLINDER - BRAKE
8 Speed Auto Trans ZF 8HP70 HEV 4WD / Brake / From: FA000001 		$367.12 1
2140 LR081597
MASTER CYLINDER - BRAKE
8 Speed Auto Trans ZF 8HP70 4WD / Brake / From: HA000001 / To: HA999999 		$312.20 1
2140 LR099178
MASTER CYLINDER - BRAKE
8 Speed Auto Trans ZF 8HP45 / Brake / From: JA000001 		$250.87 1
2162 LR033340
CAP - FILLER
8 Speed Auto Trans ZF 8HP45 / Reservoir / To: GA999999 		$54.16 1
2162 LR048838
Cap - Filler
8 Speed Auto Trans ZF 8HP70 HEV 4WD / Reservoir / From: FA000001 		- 1 Enquire
2162 LR091038
CAP - FILLER
8 Speed Auto Trans ZF 8HP45 / Reservoir / From: HA000001 		$47.62 1
9155 LR038635
FILTER - BRAKE RESERVOIR
Brake Fluid 		$11.18 1
