Name: Brake And Clutch Controls (8 Speed Auto Trans ZF 8HP70 HEV 4WD) ((V) FROMFA000001)
Rating: 5.0 (1 reviews)

View All

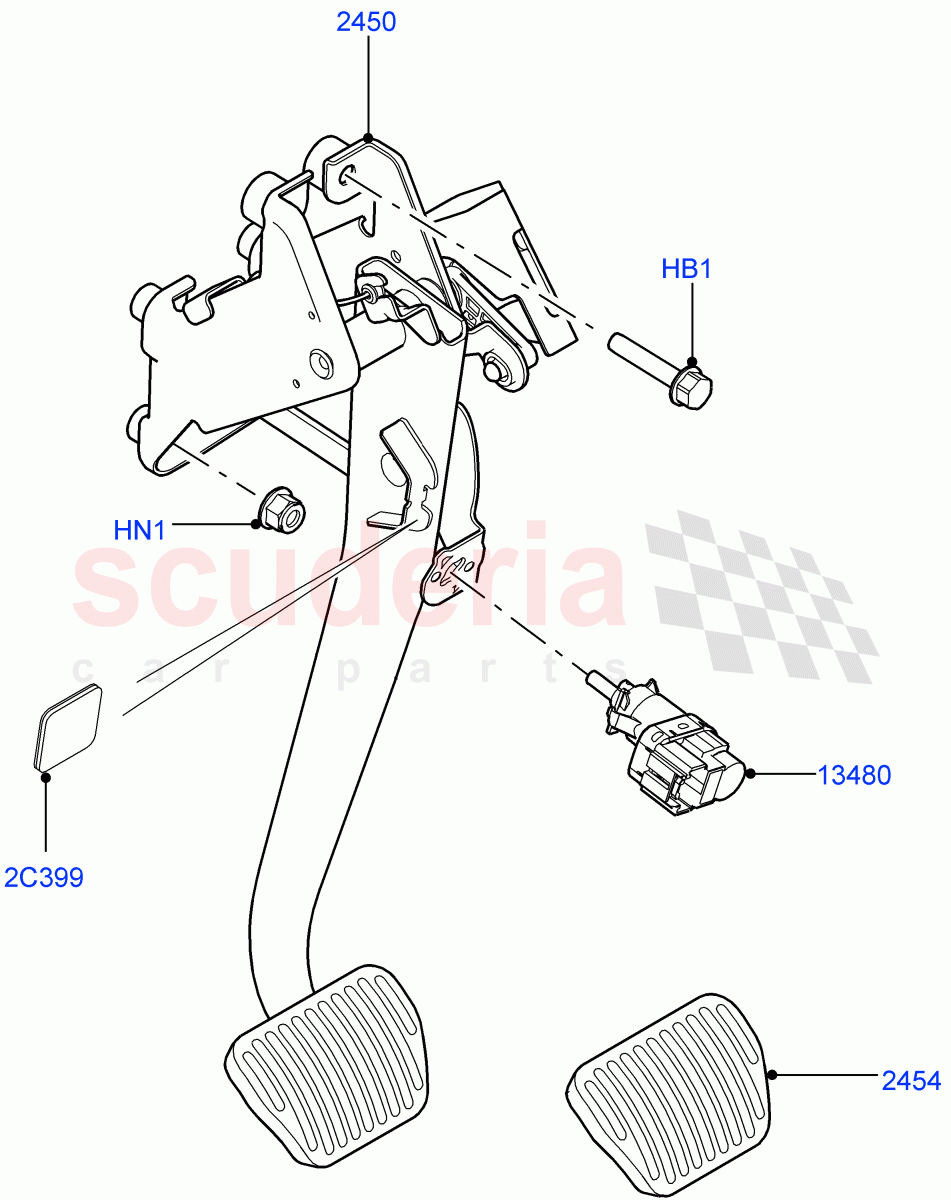

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR037835	BOLT	$1.79	To Order

Photo	Part No	Description	Price (each)	Stock
	FY108046	NUT M8 FLANGED HEX HEAD	$1.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR037836	PAD - PEDAL	$32.09	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR037835	BOLT	LR037835 BOLT Hexagonal Head, M8 x 40MM / From: FA000001	$1.79	2
HN1	FY108046	NUT M8 FLANGED HEX HEAD IN STOCK	FY108046 NUT M8 FLANGED HEX HEAD M8 / From: FA000001 IN STOCK	$1.12	4
2C399	LR068532	SHIM - BRAKE SWITCH	LR068532 SHIM - BRAKE SWITCH Stop Lamp Switch / From: FA205302 / To: GA246856	$2.97	1
2C399	LR079259	SHIM - BRAKE SWITCH	LR079259 SHIM - BRAKE SWITCH Stop Lamp Switch / From: GA246857 / To: GA267154	$4.73	1
2C399	LR061903	SHIM - BRAKE SWITCH	LR061903 SHIM - BRAKE SWITCH Stop Lamp Switch / From: FA000001 / To: FA205301	$6.82	1
2450	LR048820	PEDAL AND BRACKET - BRAKE	LR048820 PEDAL AND BRACKET - BRAKE LHD / Brake / From: FA000001	$451.87	1
2450	LR048821	PEDAL AND BRACKET - BRAKE	LR048821 PEDAL AND BRACKET - BRAKE RHD / Brake / From: FA000001	$471.54	1
2454	LR037836	PAD - PEDAL	LR037836 PAD - PEDAL From: FA000001	$32.09	1
13480	XKB500110	SWITCH - STOP LIGHT	XKB500110 SWITCH - STOP LIGHT From: FA000001 / To: GA267154	$47.04	1
13480	LR072647	SWITCH - STOP LIGHT	LR072647 SWITCH - STOP LIGHT From: GA267155 / To: KA520910	$31.85	1
13480	LR116714	SWITCH - STOP LIGHT	LR116714 SWITCH - STOP LIGHT From: KA520911	$32.06	1

Brake And Clutch Controls (8 Speed Auto Trans Zf 8Hp70 Hev 4Wd) ((V) Fromfa000001)

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]
