Brake Booster

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol]

Find Your Part

Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] - Brake Booster

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR012898 NUT - FLANGED $1.99 To Order
Photo Part No Description Price (each) Stock
FY108046 NUT M8 FLANGED HEX HEAD $1.12 IN STOCK
Photo Part No Description Price (each) Stock
LR012972 O-RING $4.21 To Order
LR081598 O-RING $3.24 To Order
LR012972 O-RING $4.21 To Order
Photo Part No Description Price (each) Stock
LR040113 BOOSTER - BRAKE $467.37 To Order
LR048835 BOOSTER - BRAKE $436.09 To Order
LR081596 BOOSTER - BRAKE $740.12 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR012903 GROMMET - BRAKE BOOSTER $6.30 To Order
Photo Part No Description Price (each) Stock
LR043726 CLEVIS PIN $4.77 To Order
Photo Part No Description Price (each) Stock
LR015517 GASKET - BRAKE BOOSTER $20.63 To Order
LR091041 GASKET - BRAKE BOOSTER $25.24 To Order
View All

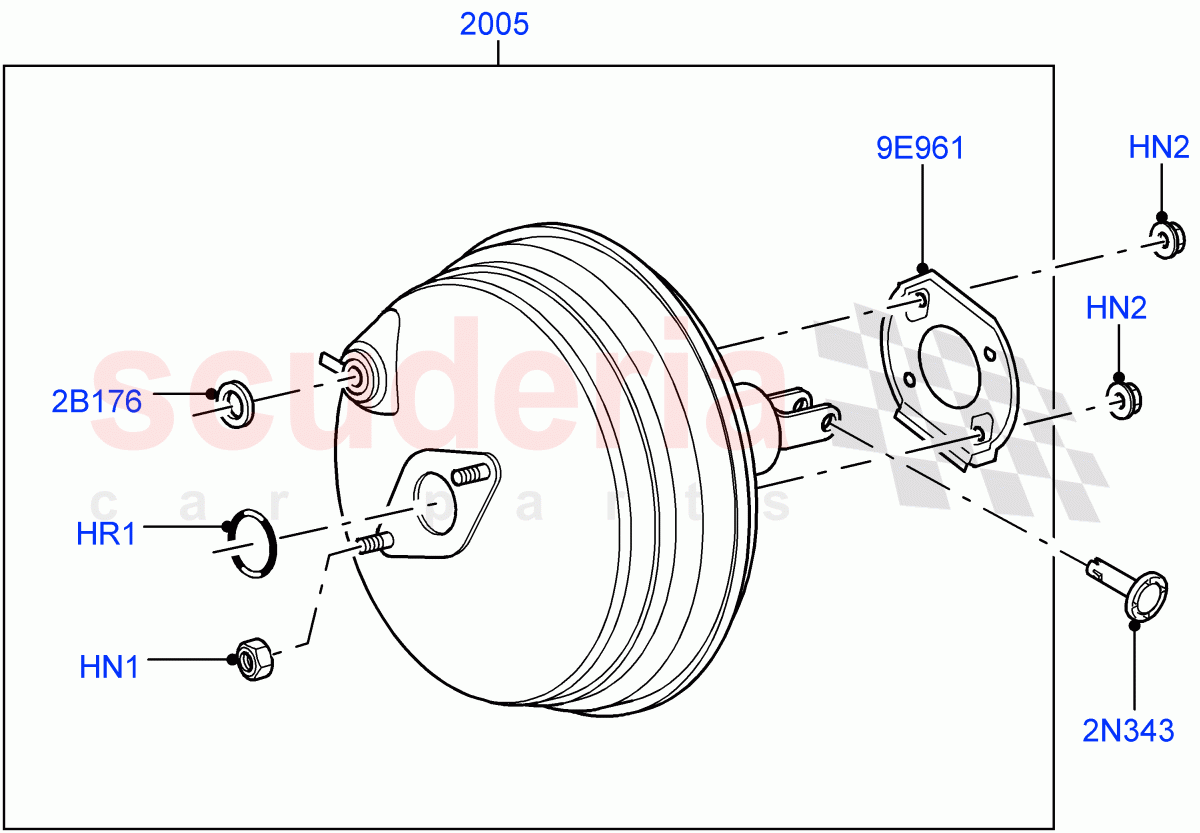

Brake Booster of Land Rover Land Rover Range Rover (2012-2021) [5.0 OHC SGDI SC V8 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 LR012898
NUT - FLANGED
M8 		$1.99 2
HN2 FY108046
NUT M8 FLANGED HEX HEAD
M8
IN STOCK 		$1.12 4
HR1 LR012972
O-RING
Brake Master Cylinder / To: GA999999 		$4.21 1
HR1 LR081598
O-RING
8 Speed Auto Trans ZF 8HP45 / Brake Master Cylinder / From: HA000001 		$3.24 1
HR1 LR012972
O-RING
8 Speed Auto Trans ZF 8HP70 HEV 4WD / Brake Master Cylinder / From: HA000001 		$4.21 1
2B176 LR012903
GROMMET - BRAKE BOOSTER
Brake Vacuum Booster 		$6.30 1
2N343 LR043726
CLEVIS PIN 		$4.77 1
9E961 LR015517
GASKET - BRAKE BOOSTER
Brake Vacuum Booster / To: GA999999 		$20.63 1
9E961 LR091041
GASKET - BRAKE BOOSTER
Brake Vacuum Booster / From: HA000001 		$25.24 1
2005 LR040113
BOOSTER - BRAKE
3.0 V6 D Gen2 Mono Turbo / To: GA999999 		$467.37 1
2005 LR048835
BOOSTER - BRAKE
3.0 V6 D Gen2 Twin Turbo / From: FA000001 / To: GA999999 		$436.09 1
2005 LR081596
BOOSTER - BRAKE
8 Speed Auto Trans ZF 8HP70 4WD / From: HA000001 / To: HA999999 		$740.12 1
2005 LR048835
BOOSTER - BRAKE
8 Speed Auto Trans ZF 8HP70 HEV 4WD / From: HA000001 / To: HA999999 		$436.09 1
2005 LR116564
BOOSTER - BRAKE
From: JA000001 		$652.84 1
