Vacuum Control And Air Injection (3.0L Aj20D6 Diesel High, Rhd) ((V) Fromla000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Vacuum Control And Air Injection (3.0L AJ20D6 Diesel High, RHD) ((V) FROMLA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR049402 CLIP - DOUBLE $2.76 To Order
Photo Part No Description Price (each) Stock
LR049404 CLIP - SPECIAL $1.05 To Order
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. $0.68 IN STOCK
Photo Part No Description Price (each) Stock
LR073666 SCREW $1.43 To Order
Photo Part No Description Price (each) Stock
LR073676 SCREW $2.35 To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR148861 PUMP - OIL & VACUUM $675.09 To Order
LR164063 PUMP - OIL & VACUUM $754.36 To Order
Photo Part No Description Price (each) Stock
LR081604 GROMMET - BRAKE PIPE $5.99 To Order
Photo Part No Description Price (each) Stock
LR125546 HOSE - VACUUM CONTROL HARNESS $185.17 To Order
LR160489 HOSE - VACUUM CONTROL HARNESS $185.17 To Order
Photo Part No Description Price (each) Stock
LR124870 MANIFOLD - VACUUM SUPPLY $160.76 To Order
Photo Part No Description Price (each) Stock
LR125256 RESERVOIR - VACUUM $61.97 To Order
Photo Part No Description Price (each) Stock
LR121354 TUBE - VACUUM $53.33 To Order
View All

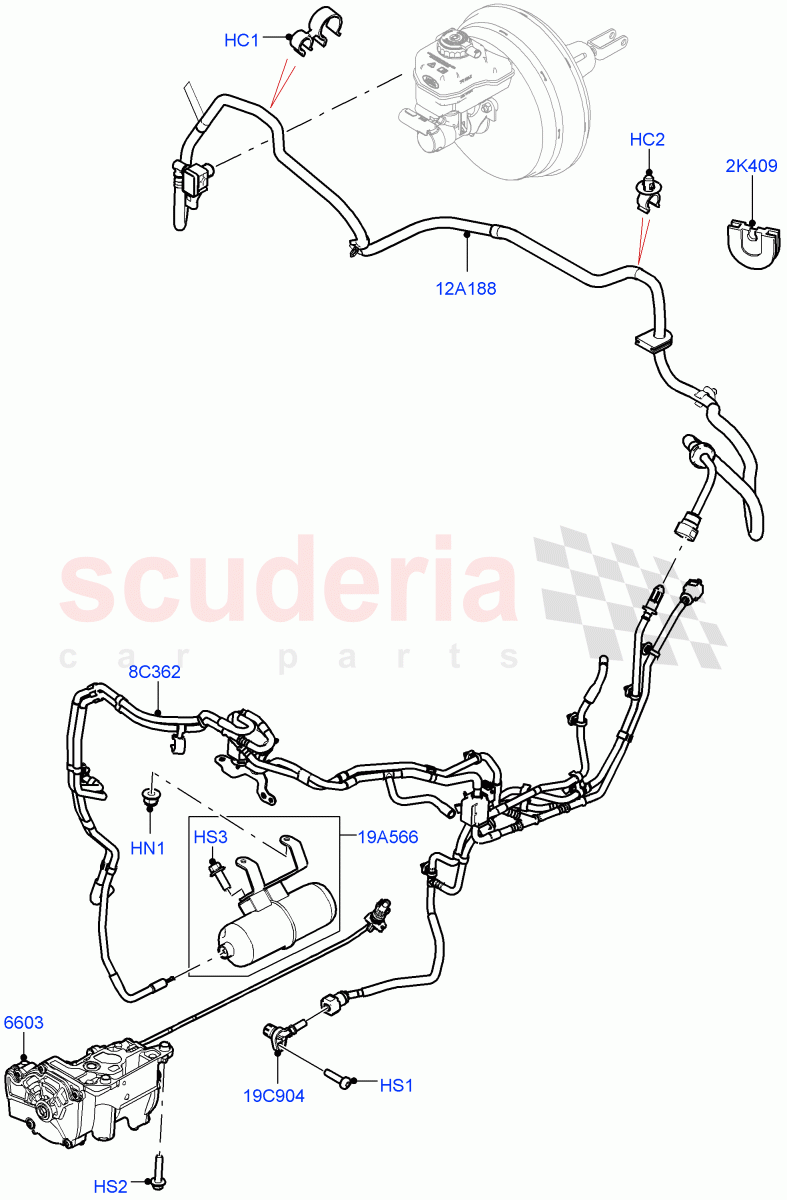

Vacuum Control And Air Injection (3.0L AJ20D6 Diesel High, RHD) ((V) FROMLA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR049402
CLIP - DOUBLE
Double, To Vacuum Hose / From: LA000001 		$2.76 1
HC2 LR049404
CLIP - SPECIAL
Single, To Vacuum Hose / From: LA000001 		$1.05 3
HN1 FY106046
NUT - HEX.
Hexagonal Head, M6, Reservoir / From: LA000001
IN STOCK 		$0.68 2
HS1 LR073666
SCREW
M5 x 20MM, Vacuum Connector / From: LA000001 		$1.43 1
HS2 LR073676
SCREW
M8 x 35mm, To Vacuum Pump / From: LA000001 		$2.35 3
HS3 FS106166
SCREW
Hexagonal Head, M6 X 16MM / From: LA000001
IN STOCK 		$1.24 2
2K409 LR081604
GROMMET - BRAKE PIPE
From: LA000001 		$5.99 1
8C362 LR125546
HOSE - VACUUM CONTROL HARNESS
To Vacuum Pump / From: LA000001 / To: MA450640 		$185.17 1
8C362 LR160489
HOSE - VACUUM CONTROL HARNESS
To Vacuum Pump / From: MA450641 		$185.17 1
12A188 LR124870
MANIFOLD - VACUUM SUPPLY
To Brake Booster / From: LA000001 		$160.76 1
19A566 LR125256
RESERVOIR - VACUUM
From: LA000001 		$61.97 1
19C904 LR121354
TUBE - VACUUM
From: LA000001 		$53.33 1
6603 LR148861
PUMP - OIL & VACUUM
From: LA000001 / To: MA456532 		$675.09 1
6603 LR164063
PUMP - OIL & VACUUM
From: MA456533 		$754.36 1
