Exhaust Fluid Injection System (Tank And Filler) (3.0L Aj20D6 Diesel High, With Diesel Exh Fluid...

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Exhaust Fluid Injection System (Tank And Filler) (3.0L AJ20D6 Diesel High, With Diesel Exh Fluid...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR078393 BOLT AND WASHER - HEX.HEAD $1.55 To Order
Photo Part No Description Price (each) Stock
LR034354 BOLT - PAN - TORX $1.07 To Order
Photo Part No Description Price (each) Stock
RYG500200 BOLT $0.67 To Order
Photo Part No Description Price (each) Stock
LR036382 CLIP $0.59 To Order
Photo Part No Description Price (each) Stock
AYP500110 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
LR101817 GROMMET - WIRING $4.12 To Order
Photo Part No Description Price (each) Stock
LR133194 KIT - FIXING PARTS $49.58 To Order
Photo Part No Description Price (each) Stock
LR104346 BOLT - HEX. HEAD - FLANGED $6.04 To Order
Photo Part No Description Price (each) Stock
LR125257 TANK&SHIELD - DIESEL EXHAUST FLUID $1,145.19 To Order
LR160434 TANK&SHIELD - DIESEL EXHAUST FLUID $1,106.47 To Order
Photo Part No Description Price (each) Stock
109123535 TUBE - DIESEL EXHAUST FLUID FEED $181.61 IN STOCK
Photo Part No Description Price (each) Stock
LR133195 PUMP - DIESEL EXHAUST FLUID $471.33 To Order
Photo Part No Description Price (each) Stock
LR090186 SHIELD - TANK $161.73 To Order
LR090189 SHIELD - TANK $202.02 To Order
Photo Part No Description Price (each) Stock
LR104348 TUBE - FUEL $111.78 To Order
Photo Part No Description Price (each) Stock
LR078768 CAP - FILLER $27.11 To Order
Photo Part No Description Price (each) Stock
LR092720 PIPE - FILLER $143.41 To Order
Photo Part No Description Price (each) Stock
LR062403 HOSE - TANK $37.93 To Order
Photo Part No Description Price (each) Stock
LR125260 TUBE - BREATHER $82.95 To Order
Photo Part No Description Price (each) Stock
LR125259 TUBE - BREATHER $64.47 To Order
Photo Part No Description Price (each) Stock
LR125261 PIPE - TANK VENT $37.06 To Order
Photo Part No Description Price (each) Stock
LR071891 HOSE - TANK $68.68 IN STOCK
Photo Part No Description Price (each) Stock
LR071243 HOSE - TANK $52.79 To Order
View All

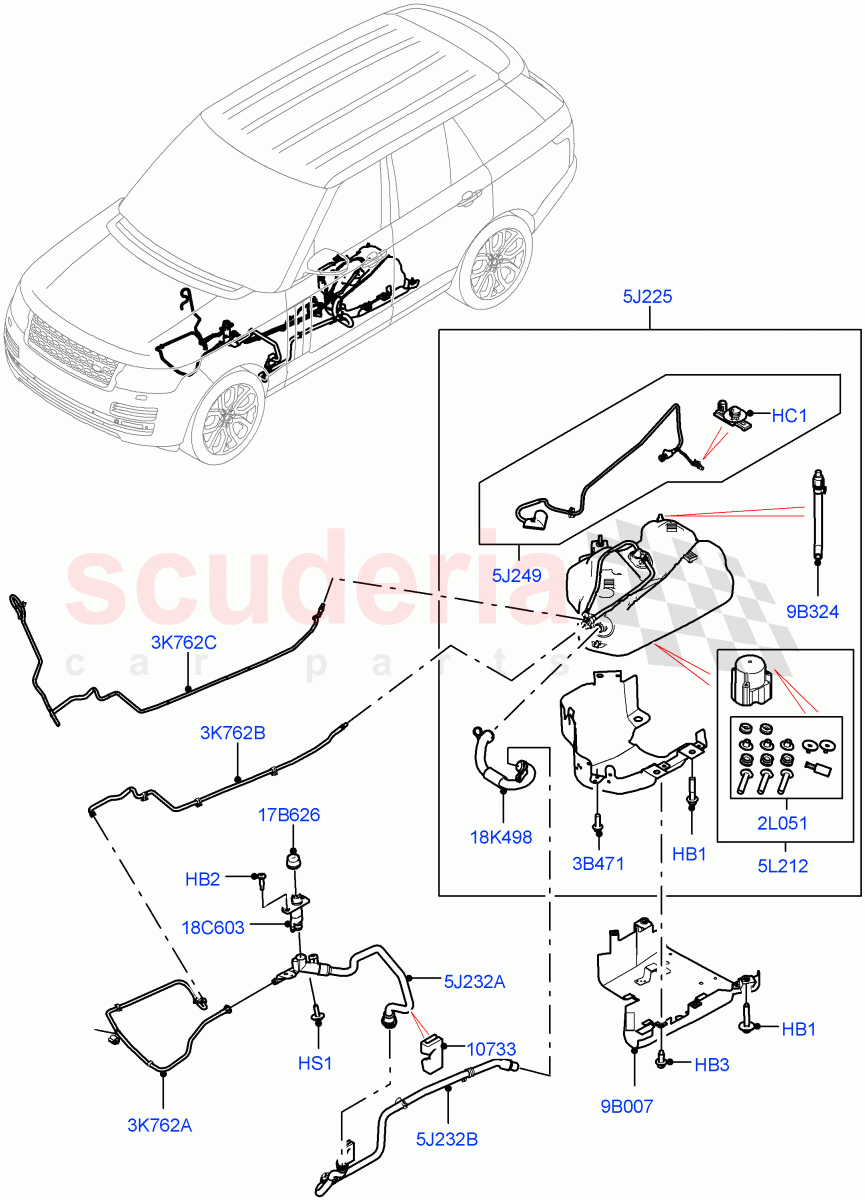

Exhaust Fluid Injection System (Tank And Filler) (3.0L AJ20D6 Diesel High, With Diesel Exh Fluid Emission Tank) ((V) FROMLA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR078393
BOLT AND WASHER - HEX.HEAD
Cradle To Body, M8 x 40MM / From: LA000001 		$1.55 5
HB2 LR034354
BOLT - PAN - TORX
Filler Neck, M6 x 19MM, Torx / From: LA000001 		$1.07 2
HB3 RYG500200
BOLT
Hexagonal Head, M8 X 16MM / From: LA000001 		$0.67 3
HC1 LR036382
CLIP
6.5 x 5MM / From: LA000001 		$0.59 1
HS1 AYP500110
SCREW
Bolt And Washer, Hexagonal Head, M6 X 20MM / From: LA000001
IN STOCK 		$0.96 2
2L051 LR133194
KIT - FIXING PARTS
To Pump / From: LA000001 		$49.58 1
3B471 LR104346
BOLT - HEX. HEAD - FLANGED
From: LA000001 		$6.04 1
3K762A LR125260
TUBE - BREATHER
Front / From: LA000001 		$82.95 1
3K762B LR125259
TUBE - BREATHER
Centre / From: LA000001 		$64.47 1
3K762C LR125261
PIPE - TANK VENT
Vapour Line / From: LA000001 		$37.06 1
5J225 LR125257
TANK&SHIELD - DIESEL EXHAUST FLUID
Complete Assembly / From: LA000001 / To: MA444374 		$1,145.19 1
5J225 LR160434
TANK&SHIELD - DIESEL EXHAUST FLUID
Complete Assembly / From: MA444375 		$1,106.47 1
5J232A LR071891
HOSE - TANK
Front, Pipe / From: LA000001
IN STOCK 		$68.68 1
5J232B LR071243
HOSE - TANK
Centre, Pipe / From: LA000001 		$52.79 1
5J249 109123535
TUBE - DIESEL EXHAUST FLUID FEED
Feed / From: LA000001
IN STOCK 		$181.61 1
5L212 LR133195
PUMP - DIESEL EXHAUST FLUID
Kit Includes Fitting Parts, Service Kit / From: LA000001 		$471.33 1
9B007 LR090186
SHIELD - TANK
Standard Wheelbase / With Fixing Parts / From: LA000001 		$161.73 1
9B007 LR090189
SHIELD - TANK
Long Wheelbase / With Fixing Parts / From: LA000001 		$202.02 1
9B324 LR104348
TUBE - FUEL
From: LA000001 		$111.78 1
17B626 LR078768
CAP - FILLER
Filler Neck / From: LA000001 		$27.11 1
18C603 LR092720
PIPE - FILLER
Filler Neck / From: LA000001 		$143.41 1
18K498 LR062403
HOSE - TANK
To Tank / From: LA000001 		$37.93 1
10733 LR101817
GROMMET - WIRING
From: LA000001 		$4.12 1
