Exhaust Gas Recirculation (Lh Side) (3.0L Aj20D6 Diesel High) ((V) Fromla000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Exhaust Gas Recirculation (LH Side) (3.0L AJ20D6 Diesel High) ((V) FROMLA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR073739 BOLT $1.30 To Order
Photo Part No Description Price (each) Stock
LR095785 O-RING $5.15 IN STOCK
Photo Part No Description Price (each) Stock
LR155610 O-RING $3.47 To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.58 IN STOCK
Photo Part No Description Price (each) Stock
LR071774 SCREW $2.31 To Order
Photo Part No Description Price (each) Stock
LR089197 STUD $3.90 To Order
Photo Part No Description Price (each) Stock
LR155609 GASKET $21.62 To Order
Photo Part No Description Price (each) Stock
LR125548 EGR UNIT $589.78 To Order
Photo Part No Description Price (each) Stock
LR140363 TUBE - EXHAUST GAS RECIRCULATION $261.75 To Order
Photo Part No Description Price (each) Stock
LR075629 SENSOR - TEMPERATURE $47.78 To Order
Photo Part No Description Price (each) Stock
LR125541 TUBE - EXHAUST GAS RECIRCULATION $119.48 To Order
Photo Part No Description Price (each) Stock
LR125543 BRACKET - SUPPORT $21.84 To Order
Photo Part No Description Price (each) Stock
LR155608 GASKET $13.66 To Order
Photo Part No Description Price (each) Stock
LR155607 GASKET $12.07 To Order
Photo Part No Description Price (each) Stock
LR155606 GASKET $12.65 To Order
View All

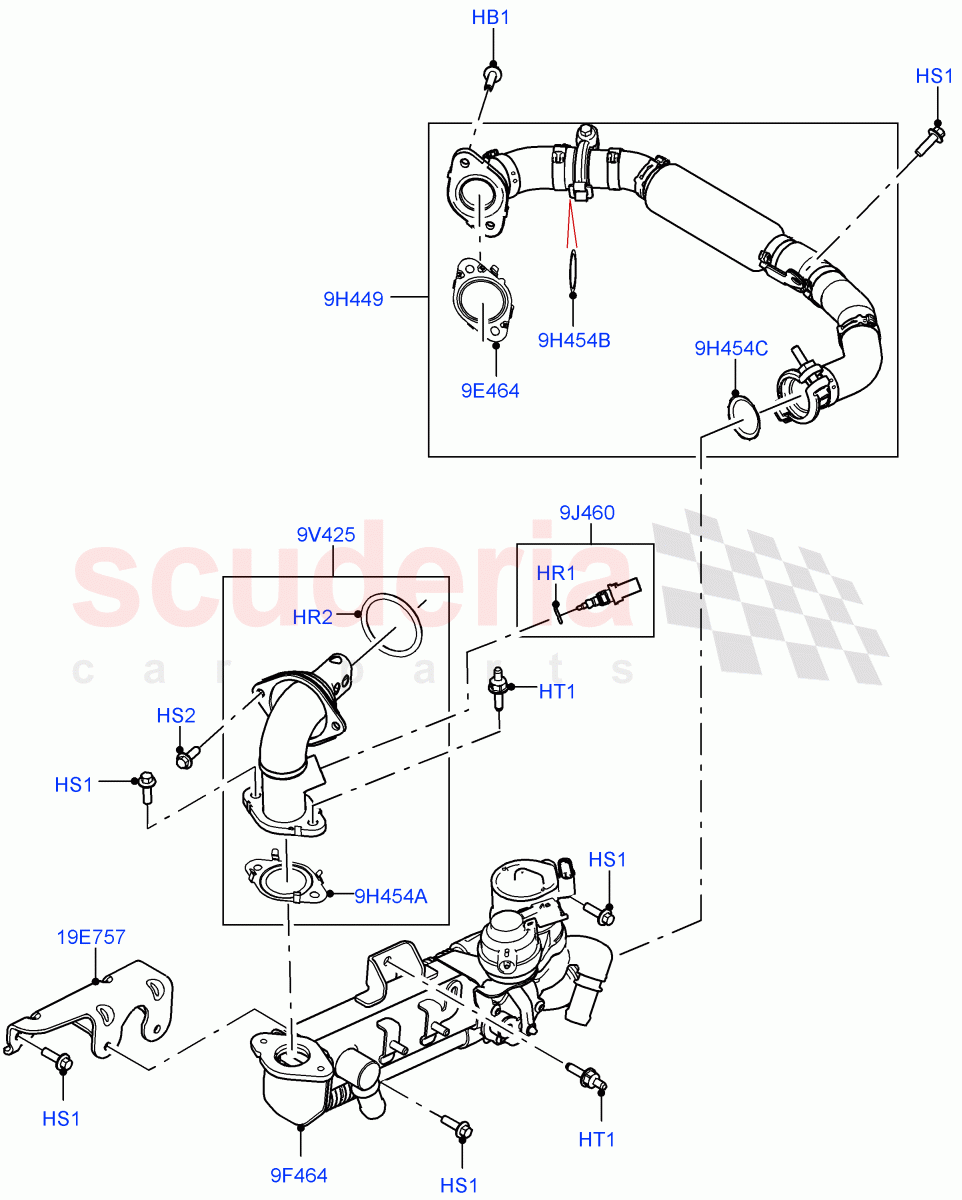

Exhaust Gas Recirculation (LH Side) (3.0L AJ20D6 Diesel High) ((V) FROMLA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR073739
BOLT
M6 X 25MM / From: LA000001 		$1.30 2
HR1 LR095785
O-RING
11.3 x 2.5MM / From: LA000001
IN STOCK 		$5.15 1
HR2 LR155610
O-RING
From EGR Cooler To Inlet Manifold, Tube / From: LA000001 		$3.47 1
HS1 LR073655
SCREW
Hexagonal Head, M6 X 20MM / From: LA000001
IN STOCK 		$1.58 7
HS2 LR071774
SCREW
Hexagonal Head, M6 X 20MM / From: LA000001 		$2.31 2
HT1 LR089197
STUD
M6 x 22 mm + M6 x 12 mm / From: LA000001 		$3.90 3
9E464 LR155609
GASKET
From: LA000001 		$21.62 1
9F464 LR125548
EGR UNIT
From: LA000001 		$589.78 1
9H449 LR140363
TUBE - EXHAUST GAS RECIRCULATION
From: LA000001 		$261.75 1
9H454A LR155608
GASKET
From EGR Cooler To Inlet Manifold, Tube / From: LA000001 		$13.66 1
9H454B LR155607
GASKET
From: LA000001 		$12.07 1
9H454C LR155606
GASKET
From: LA000001 		$12.65 1
9J460 LR075629
SENSOR - TEMPERATURE
Temperature / From: LA000001 		$47.78 1
9V425 LR125541
TUBE - EXHAUST GAS RECIRCULATION
From EGR Cooler To Inlet Manifold / From: LA000001 		$119.48 1
19E757 LR125543
BRACKET - SUPPORT
From: LA000001 		$21.84 1
