Name: Vacuum Control And Air Injection (3.0L AJ20D6 Diesel High, LHD) ((V) FROMLA000001)
Rating: 5.0 (1 reviews)

View All

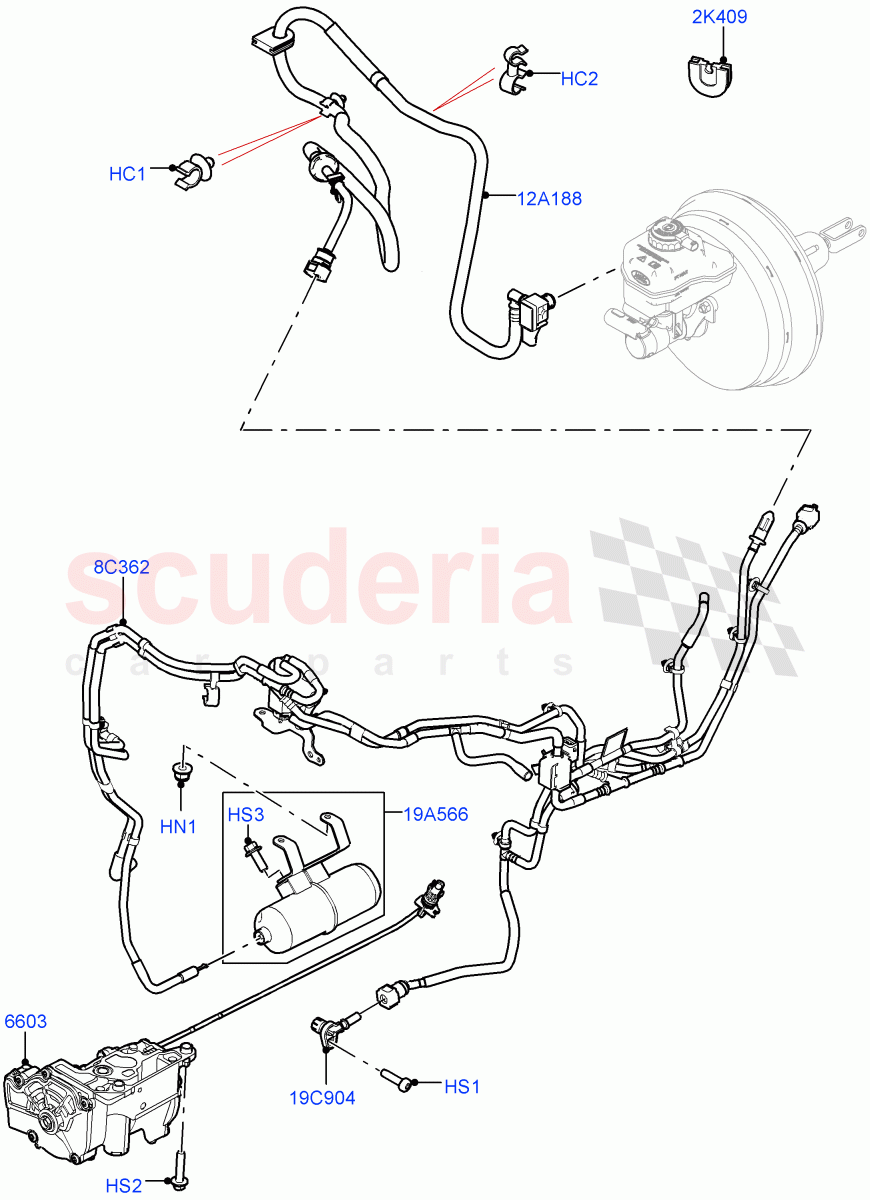

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR087667	CLIP - SPECIAL	$8.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049401	CLIP - DOUBLE	$2.36	To Order

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	$0.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073666	SCREW	$1.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073676	SCREW	$2.35	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	$1.24	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR081604	GROMMET - BRAKE PIPE	$5.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR124871	HOSE - VACUUM	$154.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125256	RESERVOIR - VACUUM	$61.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121354	TUBE - VACUUM	$53.35	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR087667	CLIP - SPECIAL	LR087667 CLIP - SPECIAL Single / From: LA000001	$8.12	1
HC2	LR049401	CLIP - DOUBLE	LR049401 CLIP - DOUBLE Double, To Vacuum Hose / From: LA000001	$2.36	1
HN1	FY106046	NUT - HEX. IN STOCK	FY106046 NUT - HEX. Hexagonal Head, M6, Reservoir / From: LA000001 IN STOCK	$0.68	2
HS1	LR073666	SCREW	LR073666 SCREW M5 x 20MM, Vacuum Connector / From: LA000001	$1.43	1
HS2	LR073676	SCREW	LR073676 SCREW M8 x 35mm, To Vacuum Pump / From: LA000001	$2.35	3
HS3	FS106166	SCREW IN STOCK	FS106166 SCREW Hexagonal Head, M6 X 16MM / From: LA000001 IN STOCK	$1.24	2
2K409	LR081604	GROMMET - BRAKE PIPE	LR081604 GROMMET - BRAKE PIPE From: LA000001	$5.99	1
8C362	LR125546	HOSE - VACUUM CONTROL HARNESS	LR125546 HOSE - VACUUM CONTROL HARNESS To Vacuum Pump / From: LA000001 / To: MA450640	$185.24	1
8C362	LR160489	HOSE - VACUUM CONTROL HARNESS	LR160489 HOSE - VACUUM CONTROL HARNESS To Vacuum Pump / From: MA450641	$185.24	1
12A188	LR124871	HOSE - VACUUM	LR124871 HOSE - VACUUM To Brake Booster / From: LA000001	$154.91	1
19A566	LR125256	RESERVOIR - VACUUM	LR125256 RESERVOIR - VACUUM From: LA000001	$61.99	1
19C904	LR121354	TUBE - VACUUM	LR121354 TUBE - VACUUM From: LA000001	$53.35	1
6603	LR148861	PUMP - OIL & VACUUM	LR148861 PUMP - OIL & VACUUM From: LA000001 / To: MA456532	$675.34	1
6603	LR164063	PUMP - OIL & VACUUM	LR164063 PUMP - OIL & VACUUM From: MA456533	$754.64	1

Vacuum Control And Air Injection (3.0L Aj20D6 Diesel High, Lhd) ((V) Fromla000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]
