Thermostat/Housing & Related Parts (3.0L Aj20D6 Diesel High) ((V) Fromla000001)

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Thermostat/Housing & Related Parts (3.0L AJ20D6 Diesel High) ((V) FROMLA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR087242 NUT - HEX. $1.46 To Order
Photo Part No Description Price (each) Stock
LR166310 O-RING $4.40 To Order
Photo Part No Description Price (each) Stock
LR165911 O-RING $63.34 To Order
Photo Part No Description Price (each) Stock
LR073648 SCREW $2.66 IN STOCK
Photo Part No Description Price (each) Stock
LR071774 SCREW $2.30 To Order
Photo Part No Description Price (each) Stock
LR128486 SCREW $1.04 To Order
Photo Part No Description Price (each) Stock
LR125475 HOSE - COOLING SYSTEM $143.85 To Order
Photo Part No Description Price (each) Stock
LR125484 THERMOSTAT AND HOUSING $109.15 To Order
Photo Part No Description Price (each) Stock
LR139417 HOSE - COOLANT BLEED $55.33 To Order
Photo Part No Description Price (each) Stock
LR125473 HOSE - COOLANT BLEED $49.08 To Order
Photo Part No Description Price (each) Stock
LR105595 SENSOR - ENGINE COOLANT TEMPERATURE $36.18 To Order
Photo Part No Description Price (each) Stock
LR105610 RETAINER - SENSOR CLIP $4.69 To Order
Photo Part No Description Price (each) Stock
LR125486 TUBE - BY-PASS $234.12 To Order
Photo Part No Description Price (each) Stock
LR125485 TUBE - BY-PASS $226.15 To Order
LR169156 TUBE - BY-PASS $264.00 To Order
View All

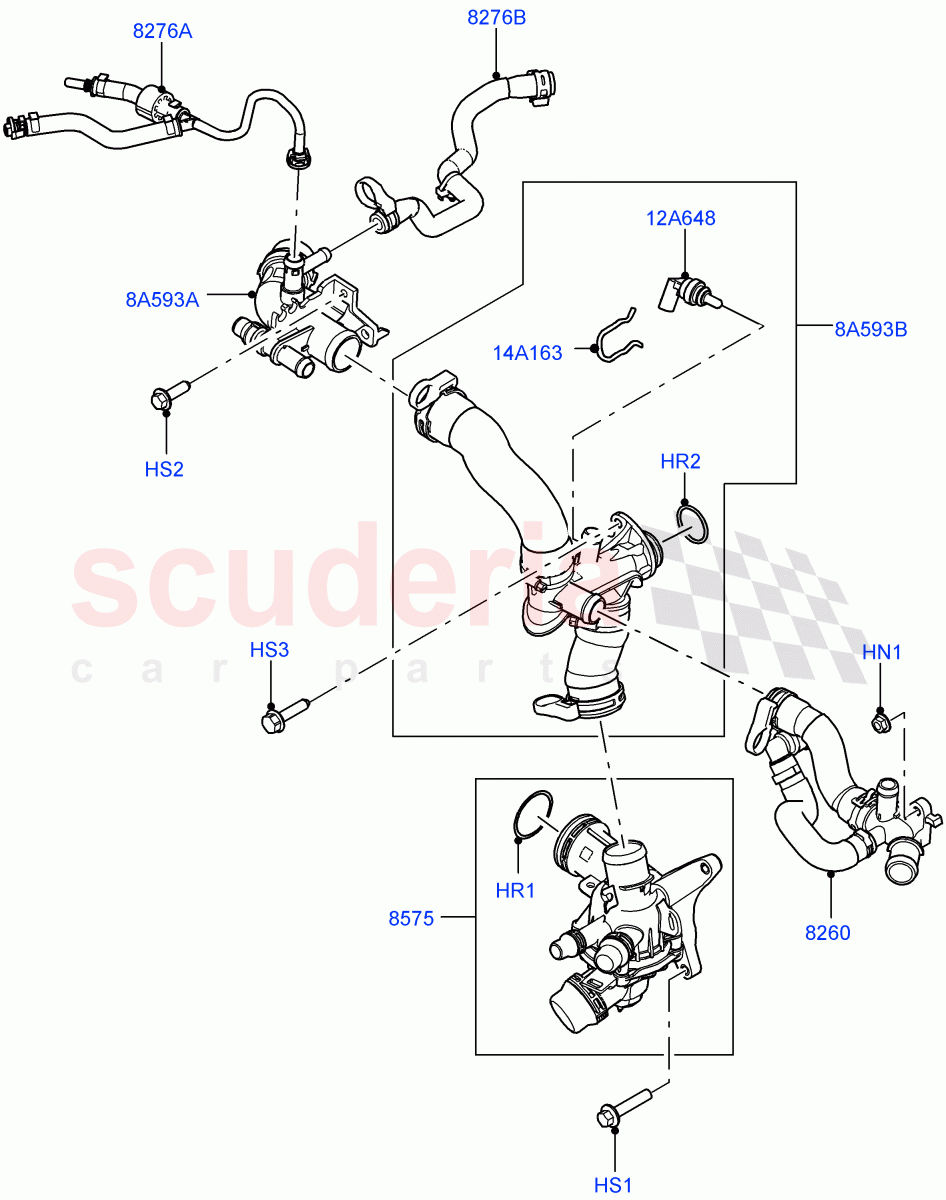

Thermostat/Housing & Related Parts (3.0L AJ20D6 Diesel High) ((V) FROMLA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 LR087242
NUT - HEX.
M6 / From: LA000001 		$1.46 1
HR1 LR166310
O-RING
To Thermostat / From: LA000001 		$4.40 1
HR2 LR165911
O-RING
Hose / From: LA000001 		$63.34 1
HS1 LR073648
SCREW
Hexagonal Head, M6 x 30MM / From: LA000001
IN STOCK 		$2.66 2
HS2 LR071774
SCREW
Hexagonal Head, M6 X 20MM / From: LA000001 		$2.30 2
HS3 LR128486
SCREW
M6 x 25MM / From: LA000001 		$1.04 2
8A593A LR125486
TUBE - BY-PASS
Top / From: LA000001 		$234.12 1
8A593B LR125485
TUBE - BY-PASS
Transfer Rail / From: LA000001 / To: NA467571 		$226.15 1
8A593B LR169156
TUBE - BY-PASS
Transfer Rail / From: NA467572 		$264.00 1
12A648 LR105595
SENSOR - ENGINE COOLANT TEMPERATURE
From: LA000001 		$36.18 1
14A163 LR105610
RETAINER - SENSOR CLIP
From: LA000001 		$4.69 1
8260 LR125475
HOSE - COOLING SYSTEM
Tube Water By-Pass / From: LA000001 		$143.85 1
8276A LR139417
HOSE - COOLANT BLEED
To Expansion Tank / From: LA000001 		$55.33 1
8276B LR125473
HOSE - COOLANT BLEED
To Engine / From: LA000001 		$49.08 1
8575 LR125484
THERMOSTAT AND HOUSING
From: LA000001 		$109.15 1
