Radiator/Coolant Overflow Container (Intercooler Radiator, Water Charge Air Cooler) (3.0L Aj20D6...

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Radiator/Coolant Overflow Container (Intercooler Radiator, Water Charge Air Cooler) (3.0L AJ20D6...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR106644 RADIATOR $549.42 To Order
Photo Part No Description Price (each) Stock
LR063167 CONNECTION - WATER $63.52 To Order
Photo Part No Description Price (each) Stock
LR063055 PLUG - RADIATOR DRAIN $15.93 To Order
Photo Part No Description Price (each) Stock
LR140906 HOSE - FUEL COOLER $117.38 To Order
Photo Part No Description Price (each) Stock
LR062105 HOSE - WATER $61.32 To Order
Photo Part No Description Price (each) Stock
LR137010 HOSE - WATER $141.81 To Order
Photo Part No Description Price (each) Stock
LR139405 HOSE - WATER $235.60 To Order
Photo Part No Description Price (each) Stock
LR139404 PUMP - WATER $234.46 To Order
Photo Part No Description Price (each) Stock
LR125297 PUMP - WATER $234.46 To Order
Photo Part No Description Price (each) Stock
LR062108 PIPE - FILLER $54.62 To Order
Photo Part No Description Price (each) Stock
LR137511 HOSE - WATER $209.97 To Order
LR154595 HOSE $208.29 To Order
Photo Part No Description Price (each) Stock
LR128198 BRACKET - PUMP SUPPORT $12.90 To Order
Photo Part No Description Price (each) Stock
LR041442 SENSOR - ENGINE COOLANT TEMPERATURE $49.01 To Order
Photo Part No Description Price (each) Stock
LR062427 BRACKET - RADIATOR $7.62 To Order
Photo Part No Description Price (each) Stock
LR062429 BRACKET - RADIATOR UPPER $10.54 To Order
View All

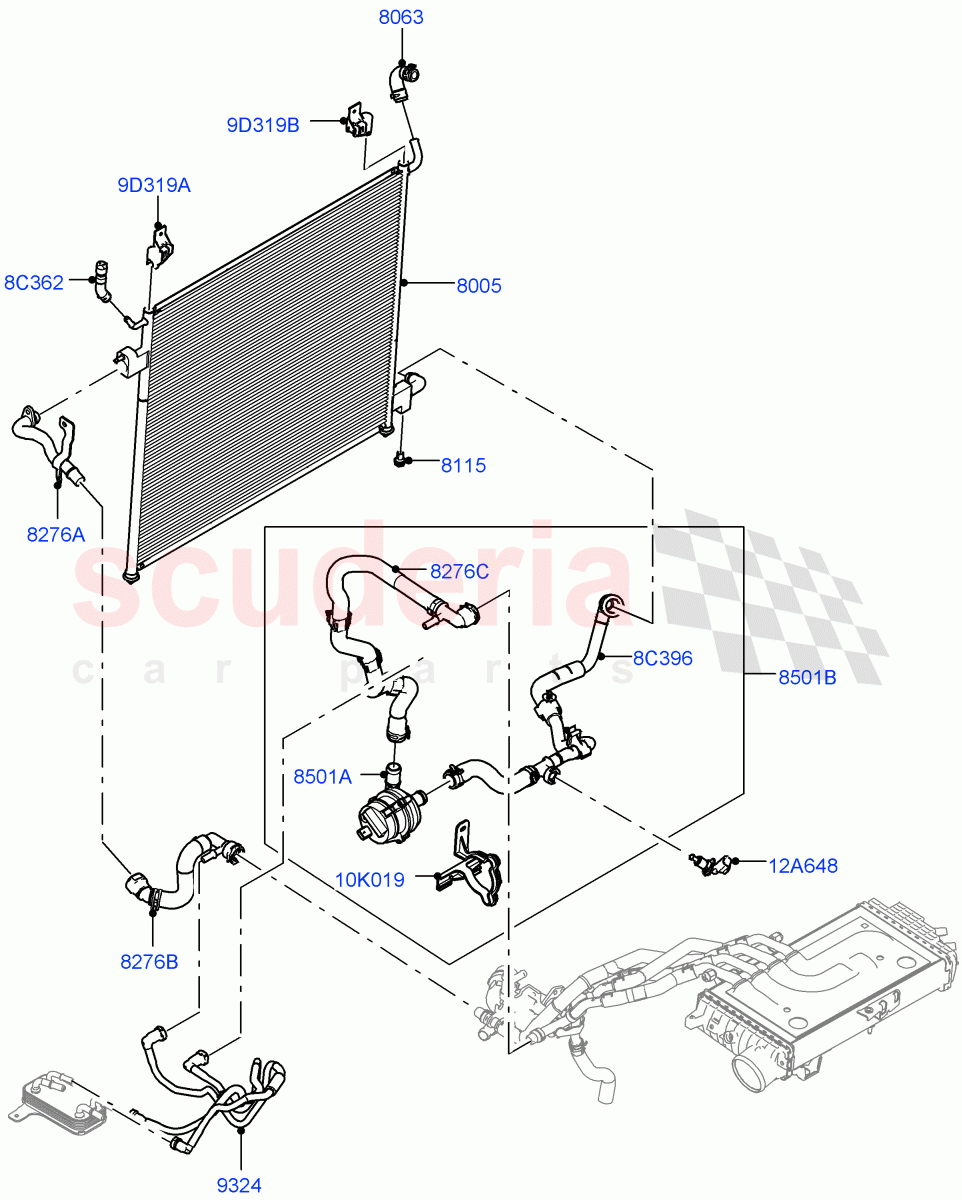

Radiator/Coolant Overflow Container (Intercooler Radiator, Water Charge Air Cooler) (3.0L AJ20D6 Diesel High, 8 Speed Auto Trans ZF 8HP76) ((V) FROMLA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
8C362 LR062108
PIPE - FILLER
Fill, Tube / From: LA000001 		$54.62 1
8C396 LR137511
HOSE - WATER
From: LA000001 / To: MA444008 		$209.97 1
8C396 LR154595
HOSE
From: MA444009 		$208.29 1
9D319A LR062427
BRACKET - RADIATOR
LH Upper / From: LA000001 		$7.62 1
9D319B LR062429
BRACKET - RADIATOR UPPER
RH Upper / From: LA000001 		$10.54 1
10K019 LR128198
BRACKET - PUMP SUPPORT
From: LA000001 		$12.90 1
12A648 LR041442
SENSOR - ENGINE COOLANT TEMPERATURE
From: LA000001 		$49.01 1
8005 LR106644
RADIATOR
From: LA000001 		$549.42 1
8063 LR063167
CONNECTION - WATER
Radiator Hose / From: LA000001 		$63.52 1
8115 LR063055
PLUG - RADIATOR DRAIN
From: LA000001 		$15.93 1
8276A LR062105
HOSE - WATER
Inlet, Radiator / From: LA000001 		$61.32 1
8276B LR137010
HOSE - WATER
To Thermostat / From: LA000001 		$141.81 1
8276C LR139405
HOSE - WATER
Water Pump / From: LA000001 		$235.60 1
8501A LR139404
PUMP - WATER
From: LA000001 		$234.46 1
8501B LR125297
PUMP - WATER
Complete Assembly / From: LA000001 		$234.46 1
9324 LR140906
HOSE - FUEL COOLER
From: LA000001 		$117.38 1
