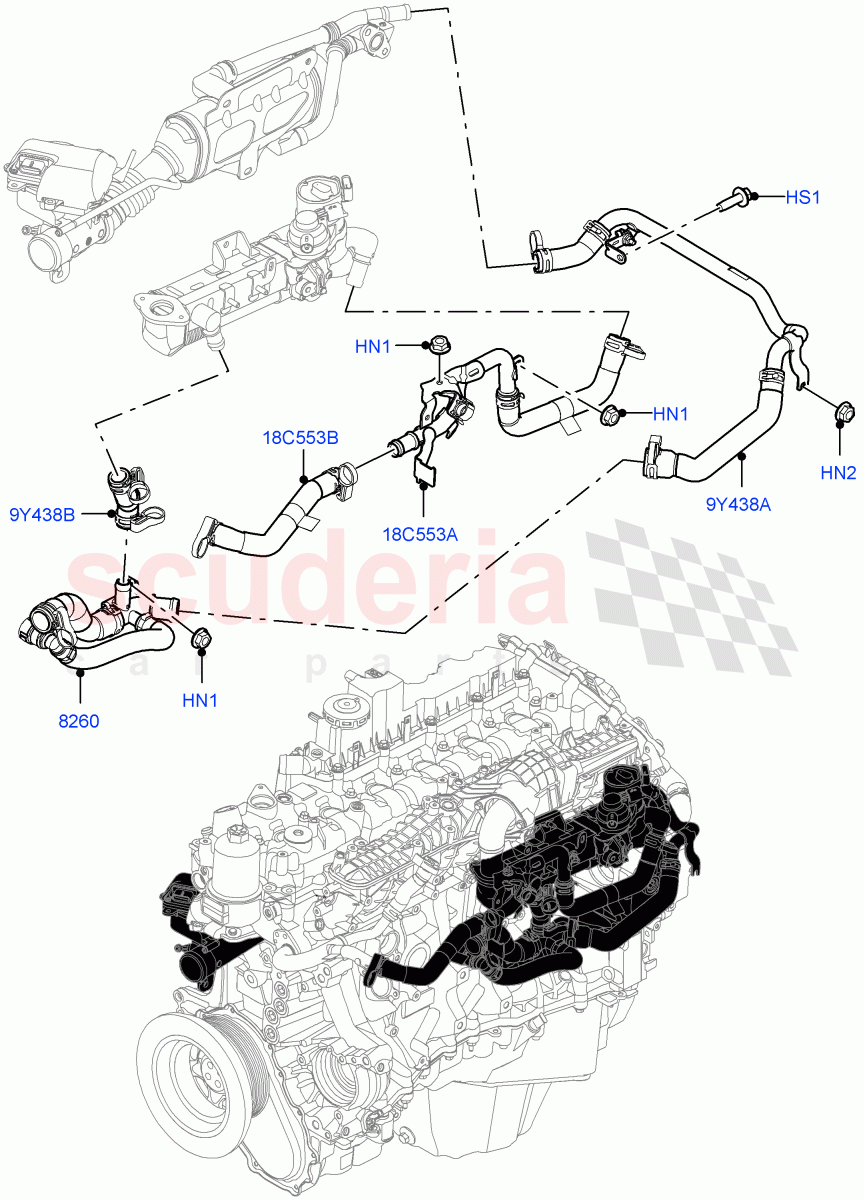

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR087242	NUT - HEX.	$1.47	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYP500200	SCREW	$0.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125475	HOSE - COOLING SYSTEM	$144.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125254	HOSE - EGR COOLER	$127.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125616	HOSE - EGR COOLER	$127.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125493	HOSE - EGR COOLER	$118.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125494	HOSE - EGR COOLER	$61.12	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	LR087242	NUT - HEX.	LR087242 NUT - HEX. M6 / From: LA000001	$1.47	3
HN2	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. Hexagonal Head, M6 / From: LA000001 IN STOCK	$1.47	1
HS1	RYP500200	SCREW	RYP500200 SCREW Hexagonal Head, M6 X 20MM / From: LA000001	$0.95	1
9Y438A	LR125254	HOSE - EGR COOLER	LR125254 HOSE - EGR COOLER Return, RH Side / From: LA000001	$127.43	1
9Y438B	LR125616	HOSE - EGR COOLER	LR125616 HOSE - EGR COOLER LH Side, Return / From: LA000001	$127.67	1
18C553A	LR125493	HOSE - EGR COOLER	LR125493 HOSE - EGR COOLER Rear, With Bracket / From: LA000001	$118.29	1
18C553B	LR125494	HOSE - EGR COOLER	LR125494 HOSE - EGR COOLER Front / From: LA000001	$61.12	1
8260	LR125475	HOSE - COOLING SYSTEM	LR125475 HOSE - COOLING SYSTEM 4 Way Connection, Return / From: LA000001	$144.20	1
