Cooling System Pipes And Hoses (Intercooler) (3.0L Aj20D6 Diesel High, 8 Speed Auto Trans Zf 8Hp76)...

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] - Cooling System Pipes And Hoses (Intercooler) (3.0L AJ20D6 Diesel High, 8 Speed Auto Trans ZF 8HP76)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR165691 RING - SEALING $5.98 To Order
Photo Part No Description Price (each) Stock
LR071774 SCREW $2.30 To Order
Photo Part No Description Price (each) Stock
LR125477 HOSE - WATER INLET $49.49 To Order
Photo Part No Description Price (each) Stock
LR125476 HOSE - WATER INLET $67.51 To Order
Photo Part No Description Price (each) Stock
LR125617 HOSE - WATER $123.09 To Order
Photo Part No Description Price (each) Stock
LR125618 HOSE - WATER $45.37 To Order
Photo Part No Description Price (each) Stock
LR125486 TUBE - BY-PASS $234.12 To Order
Photo Part No Description Price (each) Stock
LR125490 TUBE - WATER OUTLET $53.94 To Order
Photo Part No Description Price (each) Stock
LR125491 TUBE - WATER OUTLET $24.43 To Order
View All

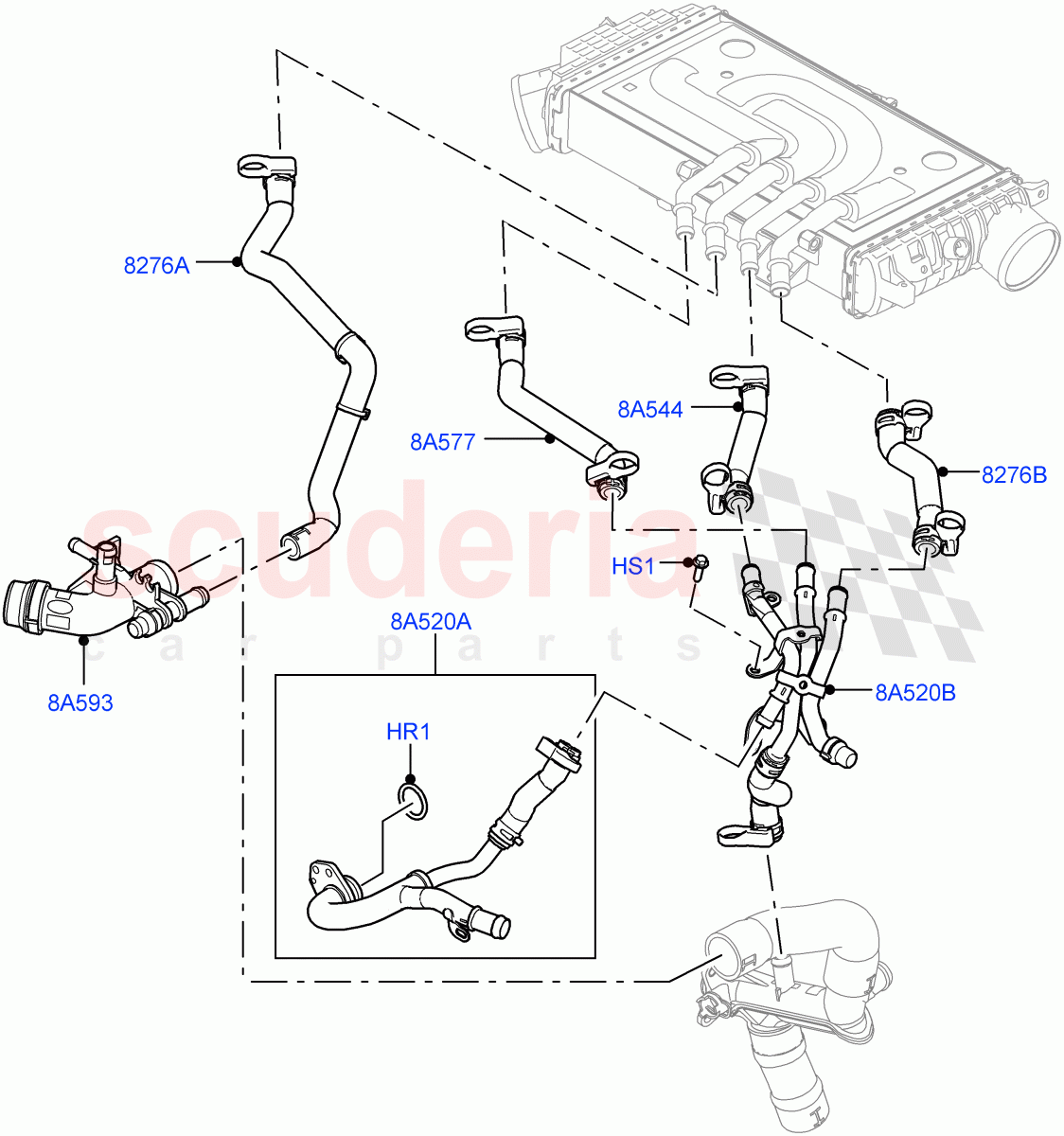

Cooling System Pipes And Hoses (Intercooler) (3.0L AJ20D6 Diesel High, 8 Speed Auto Trans ZF 8HP76) ((V) FROMLA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 I6 Turbo Diesel AJ20D6] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HR1 LR165691
RING - SEALING 		$5.98 1
HS1 LR071774
SCREW
Hexagonal Head, M6 X 20MM / From: LA000001 		$2.30 5
8A520A LR125490
TUBE - WATER OUTLET
To Cylinder Head / From: LA000001 		$53.94 1
8A520B LR125491
TUBE - WATER OUTLET
From: LA000001 		$24.43 1
8A544 LR125617
HOSE - WATER
Inlet, Water Charge Air Cooler / From: LA000001 		$123.09 1
8A577 LR125618
HOSE - WATER
Outlet, Water Charge Air Cooler / From: LA000001 		$45.37 1
8A593 LR125486
TUBE - BY-PASS
From: LA000001 		$234.12 1
8276A LR125477
HOSE - WATER INLET
Intercooler Outlet / From: LA000001 		$49.49 1
8276B LR125476
HOSE - WATER INLET
Intercooler Inlet / From: LA000001 		$67.51 1
