Name: Rear Exhaust System (3.0L 24V DOHC V6 TC Diesel, Euro Stage 4 Emissions, 3.0 V6 Diesel Electric Hybrid Eng, Proconve L6 Emissions, 3.0L 24V V6 Turbo Diesel Std Flow, Stage V Plus DPF) ((V) TOHA999999)
Rating: 5.0 (1 reviews)

Rear Exhaust System (3.0L 24V DOHC V6 TC Diesel, Euro Stage 4 Emissions, 3.0 V6 Diesel Electric Hybrid Eng, Proconve L6 Emissions, 3.0L 24V V6 Turbo Diesel Std Flow, Stage V Plus DPF) ((V) TOHA999999) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Rear Exhaust System (3.0L 24V DOHC V6 TC Diesel, Euro Stage 4 Emissions, 3.0 V6 Diesel Electric...

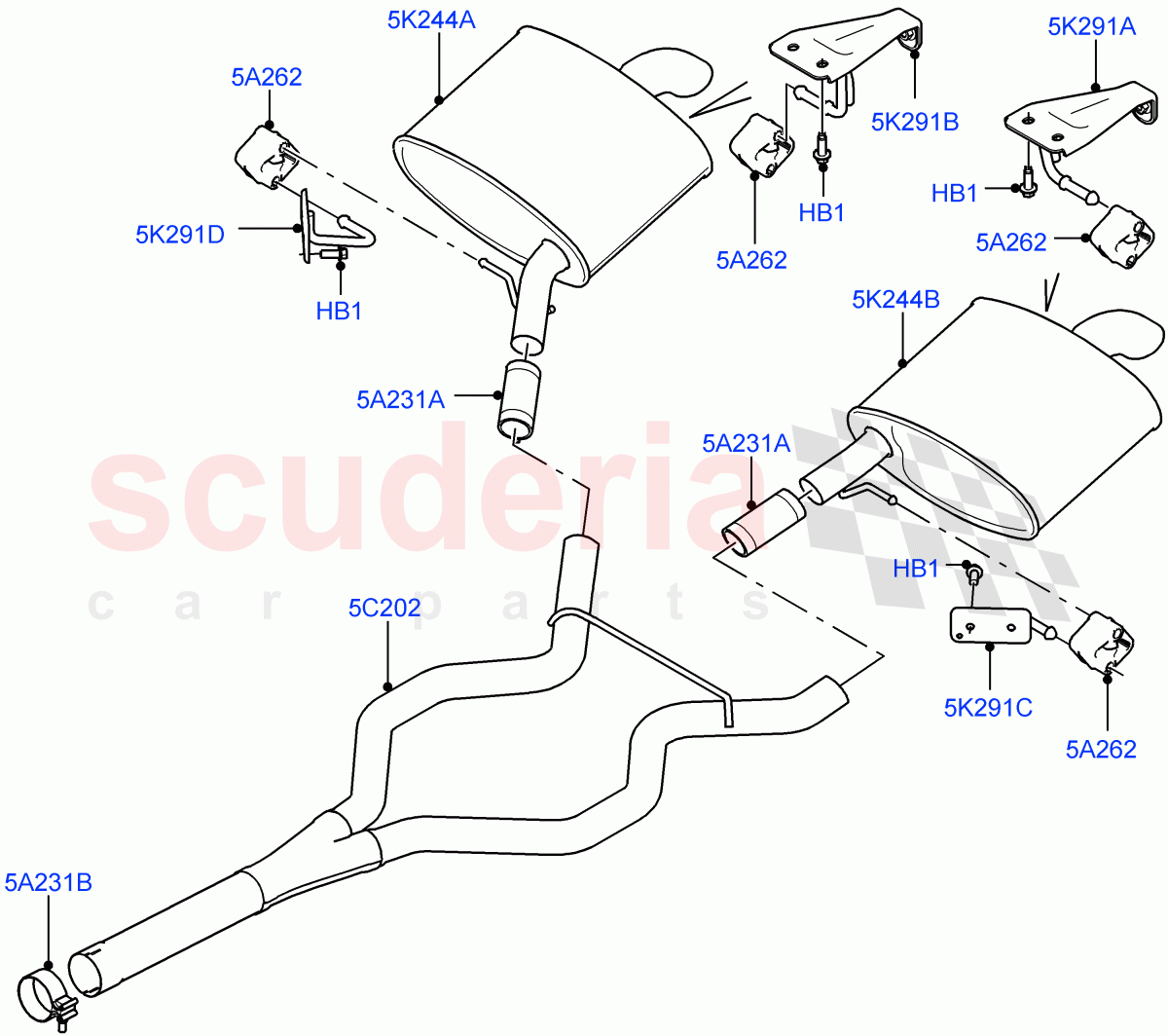

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR025064	INSULATOR - RUBBER	$29.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR040136	PIPE - EXHAUST	$733.21	To Order
	LR044562	MUFFLER - CENTRE	$460.59	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500030	CLAMP - EXHAUST	$83.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036441	CLAMP - EXHAUST	$31.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038234	MUFFLER - REAR	$828.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038230	MUFFLER - REAR	$828.52	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035781	BRACKET - REAR MUFFLER	$41.85	To Order
	LR044965	BRACKET - REAR MUFFLER	$46.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035777	BRACKET - REAR MUFFLER	$41.85	To Order
	LR044964	BRACKET - REAR MUFFLER	$46.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035772	BRACKET - EXHAUST PIPE MOUNTING	$32.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035769	BRACKET - EXHAUST PIPE MOUNTING	$32.89	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM IN STOCK	$2.29	6
5A231A	WCL500030	CLAMP - EXHAUST	WCL500030 CLAMP - EXHAUST 55MM, Muffler	$83.94	2
5A231B	LR036441	CLAMP - EXHAUST	LR036441 CLAMP - EXHAUST 70MM, Middle	$31.00	1
5A262	LR025064	INSULATOR - RUBBER	LR025064 INSULATOR - RUBBER	$29.69	4
5C202	LR040136	PIPE - EXHAUST	LR040136 PIPE - EXHAUST Standard Wheelbase / Middle	$733.21	1
5C202	LR044562	MUFFLER - CENTRE	LR044562 MUFFLER - CENTRE Long Wheelbase / Middle / From: EA000001	$460.59	1
5K244A	LR038234	MUFFLER - REAR	LR038234 MUFFLER - REAR RH	$828.52	1
5K244B	LR038230	MUFFLER - REAR	LR038230 MUFFLER - REAR LH	$828.52	1
5K291A	LR035781	BRACKET - REAR MUFFLER	LR035781 BRACKET - REAR MUFFLER LH, Rear / To: DA105107	$41.85	1
5K291A	LR044965	BRACKET - REAR MUFFLER	LR044965 BRACKET - REAR MUFFLER LH, Rear / From: DA105108	$46.98	1
5K291B	LR035777	BRACKET - REAR MUFFLER	LR035777 BRACKET - REAR MUFFLER RH, Rear / To: DA105107	$41.85	1
5K291B	LR044964	BRACKET - REAR MUFFLER	LR044964 BRACKET - REAR MUFFLER RH, Rear / From: DA105108	$46.98	1
5K291C	LR035772	BRACKET - EXHAUST PIPE MOUNTING	LR035772 BRACKET - EXHAUST PIPE MOUNTING LH, Middle	$32.89	1
5K291D	LR035769	BRACKET - EXHAUST PIPE MOUNTING	LR035769 BRACKET - EXHAUST PIPE MOUNTING RH, Middle	$32.89	1

Rear Exhaust System (3.0L 24V Dohc V6 Tc Diesel, Euro Stage 4 Emissions, 3.0 V6 Diesel Electric...

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Rear Exhaust System (3.0L 24V DOHC V6 TC Diesel, Euro Stage 4 Emissions, 3.0 V6 Diesel Electric...
