Front Exhaust System (3.0 V6 D Gen2 Twin Turbo, Stage V Plus Dpf, Proconve L6 Emissions) ((V)...

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Front Exhaust System (3.0 V6 D Gen2 Twin Turbo, Stage V Plus DPF, Proconve L6 Emissions) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
WYG500060 BOLT $2.64 To Order
Photo Part No Description Price (each) Stock
FS108206 BOLT $2.29 IN STOCK
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.47 IN STOCK
Photo Part No Description Price (each) Stock
WYP000025 SCREW $2.96 To Order
Photo Part No Description Price (each) Stock
RYG501590 SCREW $1.00 IN STOCK
Photo Part No Description Price (each) Stock
LR078958 GASKET $18.59 To Order
Photo Part No Description Price (each) Stock
LR085985 PIPE - EXHAUST $354.46 To Order
Photo Part No Description Price (each) Stock
LR110402 PIPE - EGR $311.38 To Order
Photo Part No Description Price (each) Stock
LR025064 INSULATOR - RUBBER $29.69 To Order
Photo Part No Description Price (each) Stock
LR042469 DAMPER - DAMPING MASS $59.11 To Order
Photo Part No Description Price (each) Stock
LR075621 FILTER - DIESEL PARTICLE $3,241.30 To Order
Photo Part No Description Price (each) Stock
LR079273 CLAMP $26.86 To Order
Photo Part No Description Price (each) Stock
WCL500020 CLAMP - EXHAUST $80.06 To Order
Photo Part No Description Price (each) Stock
LR016619 GASKET - EXHAUST PIPE $22.03 IN STOCK
Photo Part No Description Price (each) Stock
LR016621 GASKET - EXHAUST PIPE $20.67 To Order
Photo Part No Description Price (each) Stock
LR070298 BRACKET - EXHAUST $32.89 To Order
Photo Part No Description Price (each) Stock
LR067328 BRACKET - EXHAUST BRAKE SUPPORT $55.10 To Order
View All

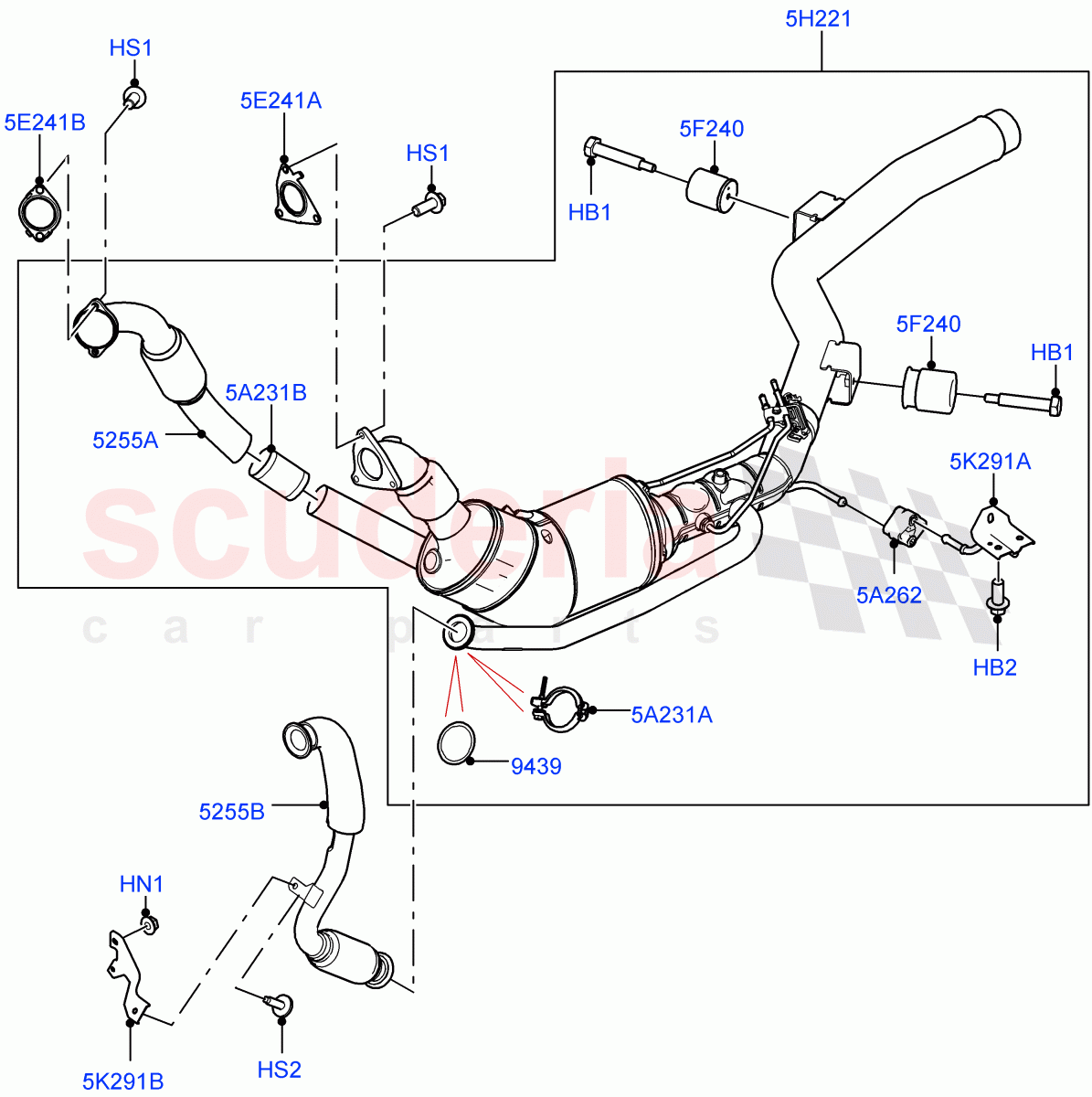

Front Exhaust System (3.0 V6 D Gen2 Twin Turbo, Stage V Plus DPF, Proconve L6 Emissions) ((V) FROMFA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 WYG500060
BOLT
M8 X 70 - 8.8, Self Locking / From: FA000001 		$2.64 2
HB2 FS108206
BOLT
Hexagonal Head, M8 X 20MM / From: EA000001
IN STOCK 		$2.29 3
HN1 FN106046
NUT - HEX.
Hexagonal Head, M6 / From: FA000001
IN STOCK 		$1.47 2
HS1 WYP000025
SCREW
Hexagonal Head, M8 X 20MM / From: FA000001 		$2.96 5
HS2 RYG501590
SCREW
Hexagonal Head, M6 X 20MM / From: FA000001
IN STOCK 		$1.00 1
5A231A LR079273
CLAMP
58MM / From: FA000001 		$26.86 1
5A231B WCL500020
CLAMP - EXHAUST
50MM / From: FA000001 		$80.06 1
5A262 LR025064
INSULATOR - RUBBER
From: FA000001 		$29.69 1
5E241A LR016619
GASKET - EXHAUST PIPE
Downpipe / From: FA000001
IN STOCK 		$22.03 1
5E241B LR016621
GASKET - EXHAUST PIPE
From: FA000001 		$20.67 1
5F240 LR042469
DAMPER - DAMPING MASS
Front / From: FA000001 		$59.11 2
5H221 LR075621
FILTER - DIESEL PARTICLE
Downpipe / From: GA000001 		$3,241.30 1
5K291A LR070298
BRACKET - EXHAUST
From: FA000001 		$32.89 1
5K291B LR067328
BRACKET - EXHAUST BRAKE SUPPORT
From: FA000001 		$55.10 1
5255A LR085985
PIPE - EXHAUST
RH Side / From: FA000001 		$354.46 1
5255B LR110402
PIPE - EGR
EGR Outlet / From: FA000001 		$311.38 1
9439 LR078958
GASKET
EGR Inlet / From: FA000001 		$18.59 1
