Name: Exhaust Sensors And Modules (3.0 V6 D Gen2 Twin Turbo, EU6D Diesel + DPF Emissions) ((V) FROMKA000001)
Rating: 4.5 (1 reviews)

Exhaust Sensors And Modules (3.0 V6 D Gen2 Twin Turbo, EU6D Diesel + DPF Emissions) ((V) FROMKA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Exhaust Sensors And Modules (3.0 V6 D Gen2 Twin Turbo, EU6D Diesel + DPF Emissions) ((V)...

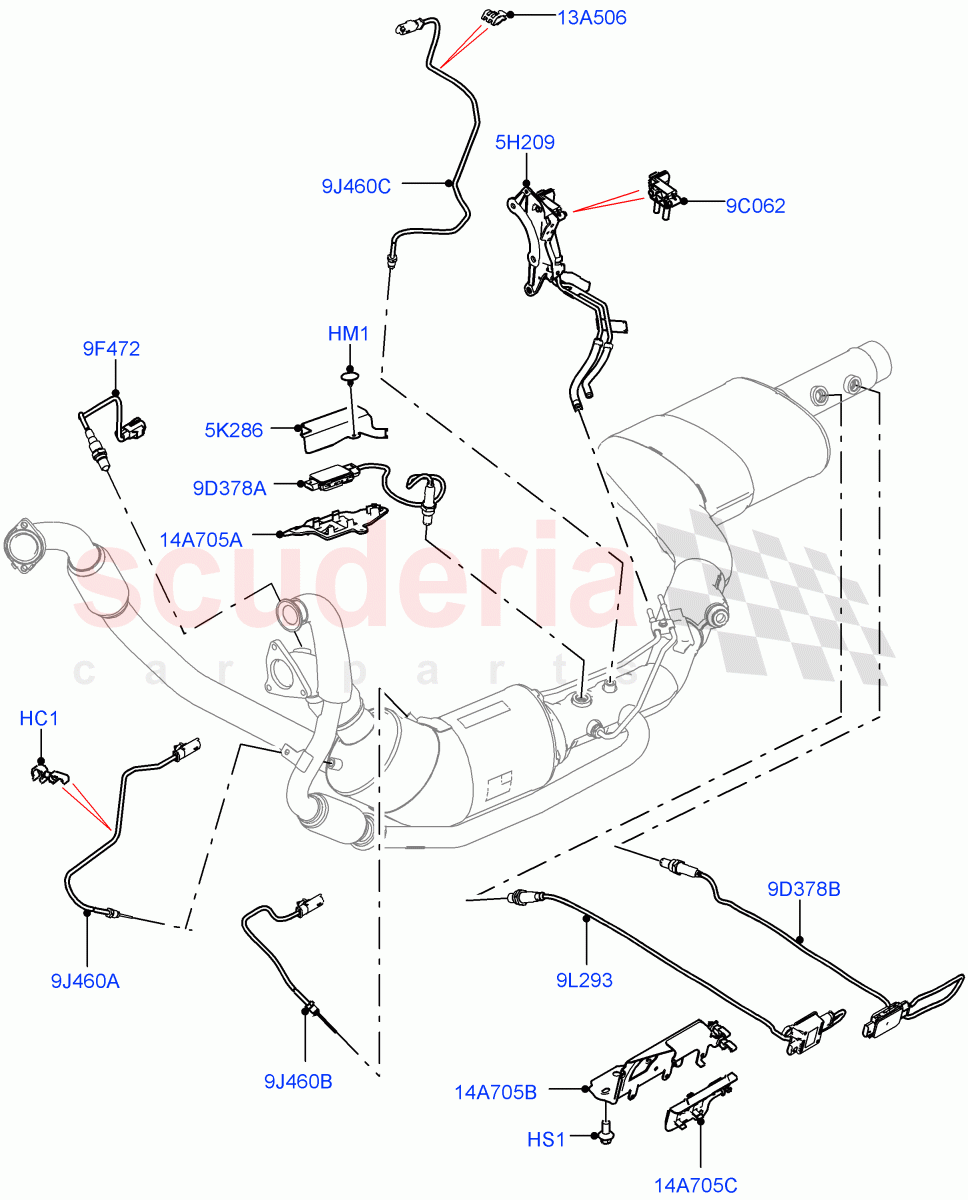

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR016623	CLIP	$1.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078426	FASTENER - COVER	$1.45	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108186	SCREW - SOCKET HEAD CAP	$2.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR081634	SENSOR - EXHAUST GAS PRESSURE	$177.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100467	HEAT SHIELD - SENSOR	$18.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122713	SENSOR	$159.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110458	SENSOR	$267.01	To Order
	LR137404	SENSOR - HEGO	$319.13	To Order
	LR137404	SENSOR - HEGO	$319.13	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR146853	SENSOR - PARTICULATE MATTER DETECT.	$371.44	To Order
	LR146853	SENSOR - PARTICULATE MATTER DETECT.	$371.44	To Order

Photo	Part No	Description	Price (each)	Stock
	YQR000050	CLIP - WIRING	$0.79	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR113639	SENSOR - NOX TRAP TEMPERATURE	$735.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112139	SENSOR - NOX TRAP TEMPERATURE	$628.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062036	SENSOR - EXHAUST GAS - TEMPERATURE	$158.64	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR062037	SENSOR - EXHAUST GAS - TEMPERATURE	$159.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR062038	SENSOR - EXHAUST GAS - TEMPERATURE	$159.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100464	BRACKET - SENSOR MOUNTING	$10.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR104010	BRACKET - WIRING	$38.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR099961	BRACKET - WIRING	$12.57	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR016623	CLIP	LR016623 CLIP Double / From: KA000001	$1.72	2
HM1	LR078426	FASTENER - COVER	LR078426 FASTENER - COVER 4.75 x 0.76 - 7.9, Front, NOX - Sensor, Push Pin / From: KA000001	$1.45	2
HS1	FS108186	SCREW - SOCKET HEAD CAP	FS108186 SCREW - SOCKET HEAD CAP Bracket To Floor, M8 x 18MM / From: KA000001	$2.25	2
5H209	LR081634	SENSOR - EXHAUST GAS PRESSURE	LR081634 SENSOR - EXHAUST GAS PRESSURE Exhaust Gas Pressure, Includes Bracket / From: KA000001	$177.58	1
5K286	LR100467	HEAT SHIELD - SENSOR	LR100467 HEAT SHIELD - SENSOR Front, NOX - Sensor / From: KA000001	$18.09	1
9C062	LR122713	SENSOR	LR122713 SENSOR Exhaust Gas Pressure / From: KA000001	$159.58	1
9D378A	LR113639	SENSOR - NOX TRAP TEMPERATURE	LR113639 SENSOR - NOX TRAP TEMPERATURE Front / From: KA000001	$735.77	1
9D378B	LR112139	SENSOR - NOX TRAP TEMPERATURE	LR112139 SENSOR - NOX TRAP TEMPERATURE Rear / From: KA000001	$628.47	1
9F472	LR110458	SENSOR	LR110458 SENSOR Hego Sensor / From: KA000001 / To: KA999999	$267.01	1
9F472	LR137404	SENSOR - HEGO	LR137404 SENSOR - HEGO Hego Sensor / From: LA575428 / To: LA599999	$319.13	1
9F472	LR137404	SENSOR - HEGO	LR137404 SENSOR - HEGO Hego Sensor / From: LA400000 / To: LA567000	$319.13	1
9F472	LR110458	SENSOR	LR110458 SENSOR Hego Sensor / From: LA567000 / To: LA575427	$267.01	1
9J460A	LR062036	SENSOR - EXHAUST GAS - TEMPERATURE IN STOCK	LR062036 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature, Front / From: KA000001 IN STOCK	$158.64	1
9J460B	LR062037	SENSOR - EXHAUST GAS - TEMPERATURE IN STOCK	LR062037 SENSOR - EXHAUST GAS - TEMPERATURE Centre, Exhaust Gas Temperature / From: KA000001 IN STOCK	$159.71	1
9J460C	LR062038	SENSOR - EXHAUST GAS - TEMPERATURE	LR062038 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature, Rear / From: KA000001	$159.71	1
9L293	LR146853	SENSOR - PARTICULATE MATTER DETECT.	LR146853 SENSOR - PARTICULATE MATTER DETECT. From: KA000001 / To: LA412484	$371.44	1
9L293	LR146853	SENSOR - PARTICULATE MATTER DETECT.	LR146853 SENSOR - PARTICULATE MATTER DETECT. From: LA412485	$371.44	1
13A506	YQR000050	CLIP - WIRING IN STOCK	YQR000050 CLIP - WIRING From: KA000001 IN STOCK	$0.79	5
14A705A	LR100464	BRACKET - SENSOR MOUNTING	LR100464 BRACKET - SENSOR MOUNTING Front, NOX - Sensor / From: KA000001	$10.69	1
14A705B	LR104010	BRACKET - WIRING	LR104010 BRACKET - WIRING Rear / From: KA000001	$38.65	1
14A705C	LR099961	BRACKET - WIRING	LR099961 BRACKET - WIRING NOX - Sensor, Rear / From: KA000001	$12.57	1

Exhaust Sensors And Modules (3.0 V6 D Gen2 Twin Turbo, Eu6D Diesel + Dpf Emissions) ((V)...

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Exhaust Sensors And Modules (3.0 V6 D Gen2 Twin Turbo, EU6D Diesel + DPF Emissions) ((V)...
