Exhaust Sensors And Modules (3.0 V6 D Gen2 Mono Turbo, Eu6 + Dpf Emissions, Lev 160, Japanese...

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] - Exhaust Sensors And Modules (3.0 V6 D Gen2 Mono Turbo, EU6 + DPF Emissions, LEV 160, Japanese...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
YYC500240 CLAMP - HOSE $2.08 To Order
Photo Part No Description Price (each) Stock
LR078426 FASTENER - COVER $1.45 To Order
Photo Part No Description Price (each) Stock
RYH500350 NUT - SPECIAL $0.52 To Order
Photo Part No Description Price (each) Stock
FA108202 SCREW $1.36 To Order
Photo Part No Description Price (each) Stock
FS108186 SCREW - SOCKET HEAD CAP $2.25 To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW $1.24 IN STOCK
Photo Part No Description Price (each) Stock
LR062829 STUD $2.97 To Order
Photo Part No Description Price (each) Stock
LR087161 BRACKET - WIRING $13.37 To Order
Photo Part No Description Price (each) Stock
LR069684 SENSOR - DIFFERENTIAL PRESSURE $197.55 To Order
LR081634 SENSOR - EXHAUST GAS PRESSURE $177.26 To Order
Photo Part No Description Price (each) Stock
LR082467 HEAT SHIELD - TRANSMISSION $28.98 To Order
Photo Part No Description Price (each) Stock
LR122713 SENSOR $159.28 To Order
Photo Part No Description Price (each) Stock
LR062045 SENSOR - HEGO $266.53 To Order
LR098299 SENSOR - HEGO $240.10 To Order
LR110458 SENSOR $266.53 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR071752 SENSOR - PARTICULATE MATTER DETECT. $370.76 To Order
Photo Part No Description Price (each) Stock
YQR000050 CLIP - WIRING $0.78 IN STOCK
Photo Part No Description Price (each) Stock
LR063032 SENSOR - NOX TRAP TEMPERATURE $817.36 To Order
LR078814 SENSOR - NOX TRAP TEMPERATURE $817.36 To Order
LR104388 SENSOR - NOX TRAP TEMPERATURE $584.44 IN STOCK
Photo Part No Description Price (each) Stock
LR062828 SENSOR - NOX TRAP TEMPERATURE $817.36 To Order
LR078810 SENSOR - NOX TRAP TEMPERATURE $693.79 To Order
LR104387 SENSOR - NOX TRAP TEMPERATURE $785.17 To Order
Photo Part No Description Price (each) Stock
LR062037 SENSOR - EXHAUST GAS - TEMPERATURE $159.42 IN STOCK
Photo Part No Description Price (each) Stock
LR062038 SENSOR - EXHAUST GAS - TEMPERATURE $159.42 To Order
Photo Part No Description Price (each) Stock
LR062036 SENSOR - EXHAUST GAS - TEMPERATURE $158.35 IN STOCK
Photo Part No Description Price (each) Stock
LR062053 SENSOR - EXHAUST GAS - TEMPERATURE $154.93 To Order
Photo Part No Description Price (each) Stock
LR063178 BRACKET - WIRING $22.26 To Order
LR071906 BRACKET - WIRING $38.58 To Order
LR104010 BRACKET - WIRING $38.58 To Order
Photo Part No Description Price (each) Stock
LR063179 BRACKET - WIRING $38.30 To Order
LR084674 BRACKET - WIRING $49.89 To Order
Photo Part No Description Price (each) Stock
LR099961 BRACKET - WIRING $12.55 To Order
View All

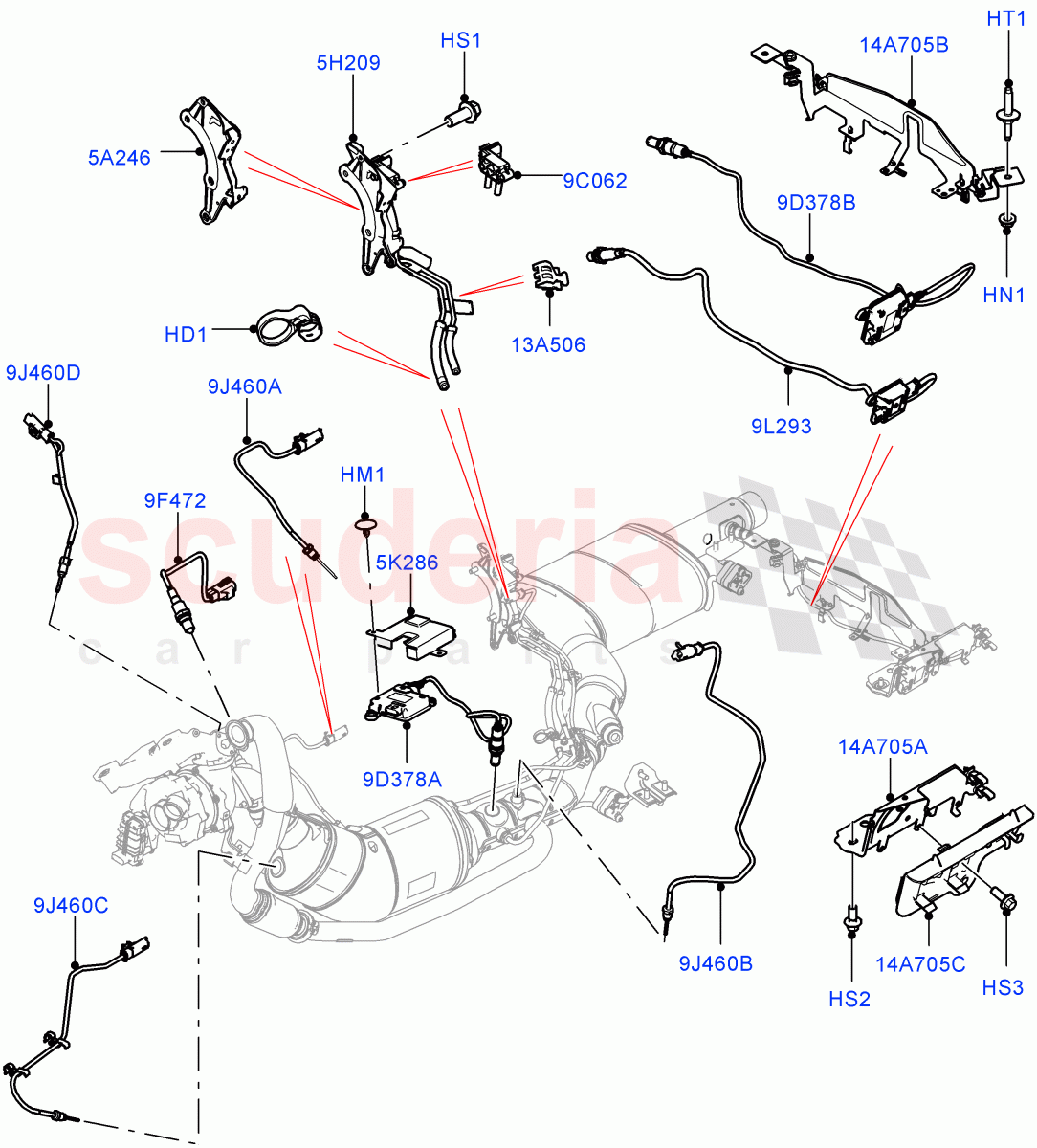

Exhaust Sensors And Modules (3.0 V6 D Gen2 Mono Turbo, EU6 + DPF Emissions, LEV 160, Japanese Emission + DPF) ((V) FROMFA000001) of Land Rover Land Rover Range Rover (2012-2021) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HD1 YYC500240
CLAMP - HOSE
Exhaust Gas Pressure / From: FA000001 		$2.08 1
HM1 LR078426
FASTENER - COVER
LEV 160 / 4.75 x 0.76 - 7.9, Push Pin / From: GA000001 		$1.45 3
HN1 RYH500350
NUT - SPECIAL
M8 / From: FA000001 		$0.52 2
HS1 FA108202
SCREW
Hexagonal Head, M8 X 20MM, Taptite / From: FA000001 		$1.36 2
HS2 FS108186
SCREW - SOCKET HEAD CAP
M8 x 18MM / From: FA000001 		$2.25 2
HS3 FS106166
SCREW
Hexagonal Head, M6 X 16MM / From: FA000001
IN STOCK 		$1.24 2
HT1 LR062829
STUD
M10 x 36 + M8 x 22, Secures Sensor Fly Lead Bracket To Body / From: FA000001 		$2.97 2
5A246 LR087161
BRACKET - WIRING
With 2 Spd Trans Case With Ctl Trac / From: HA000001 		$13.37 1
5H209 LR069684
SENSOR - DIFFERENTIAL PRESSURE
With 2 Spd Trans Case With Ctl Trac / Exhaust Gas Pressure, Includes Bracket / From: FA000001 / To: GA999999 		$197.55 1
5H209 LR081634
SENSOR - EXHAUST GAS PRESSURE
With 2 Spd Trans Case With Ctl Trac / Exhaust Gas Pressure, Includes Bracket / From: HA000001 		$177.26 1
5K286 LR082467
HEAT SHIELD - TRANSMISSION
LEV 160 / From: GA000001 		$28.98 1
9C062 LR122713
SENSOR
Exhaust Gas Pressure / From: FA000001 		$159.28 1
9D378A LR063032
SENSOR - NOX TRAP TEMPERATURE
Front / From: FA000001 / To: FA999999 		$817.36 1
9D378A LR078814
SENSOR - NOX TRAP TEMPERATURE
LEV 160 / Front / From: GA000001 / To: HA349252 		$817.36 1
9D378A LR104388
SENSOR - NOX TRAP TEMPERATURE
LEV 160 / Front / From: HA349253
IN STOCK 		$584.44 1
9D378B LR062828
SENSOR - NOX TRAP TEMPERATURE
Rear / From: FA000001 / To: FA999999 		$817.36 1
9D378B LR078810
SENSOR - NOX TRAP TEMPERATURE
Rear / From: GA000001 / To: HA348180 		$693.79 1
9D378B LR104387
SENSOR - NOX TRAP TEMPERATURE
Rear / From: HA348181 		$785.17 1
9F472 LR062045
SENSOR - HEGO
Hego Sensor / From: FA000001 / To: HA343695 		$266.53 1
9F472 LR098299
SENSOR - HEGO
Hego Sensor / From: HA343696 / To: JA383741 		$240.10 1
9F472 LR110458
SENSOR
Hego Sensor / From: JA383742 / To: KA999999 		$266.53 1
9F472 LR137404
SENSOR - HEGO
Hego Sensor / From: LA575428 / To: LA599999 		$318.54 1
9F472 LR137404
SENSOR - HEGO
Hego Sensor / From: LA400000 / To: LA567000 		$318.54 1
9F472 LR110458
SENSOR
Hego Sensor / From: LA567000 / To: LA575427 		$266.53 1
9F472 LR137404
SENSOR - HEGO
Hego Sensor / From: MA000001 		$318.54 1
9J460A LR062037
SENSOR - EXHAUST GAS - TEMPERATURE
Exhaust Gas Temperature, Filter Diesel Particle, Middle / From: FA000001
IN STOCK 		$159.42 1
9J460B LR062038
SENSOR - EXHAUST GAS - TEMPERATURE
Exhaust Gas Temperature, Filter Diesel Particle, Rear / From: FA000001 		$159.42 1
9J460C LR062036
SENSOR - EXHAUST GAS - TEMPERATURE
Exhaust Gas Temperature / From: FA000001
IN STOCK 		$158.35 1
9J460D LR062053
SENSOR - EXHAUST GAS - TEMPERATURE
Exhaust Gas Temperature 		$154.93 1
9L293 LR071752
SENSOR - PARTICULATE MATTER DETECT.
LEV 160 / From: FA000001 		$370.76 1
13A506 YQR000050
CLIP - WIRING
Exhaust Gas Temperature Sensor / From: FA000001
IN STOCK 		$0.78 1
14A705A LR063178
BRACKET - WIRING
Module, NOX - Sensor / From: FA000001 / To: FA999999 		$22.26 1
14A705A LR071906
BRACKET - WIRING
Module, NOX - Sensor / From: GA000001 / To: HA359753 		$38.58 1
14A705A LR104010
BRACKET - WIRING
Module, NOX - Sensor / From: HA359754 		$38.58 1
14A705B LR063179
BRACKET - WIRING
NOX - Sensor, Wire / From: FA000001 / To: GA271137 		$38.30 1
14A705B LR084674
BRACKET - WIRING
Module, NOX - Sensor / From: GA271138 		$49.89 1
14A705C LR099961
BRACKET - WIRING
EU6D Diesel + DPF Emissions / NOX - Sensor / From: JA000001 		$12.55 1
