Air Vents, Louvres And Ducts (Internal Components, Floor)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Air Vents, Louvres And Ducts (Internal Components, Floor)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR005541 RIVET - PLASTIC $0.83 IN STOCK
Photo Part No Description Price (each) Stock
LR033052 SCREW AND WASHER - SELF-TAPPING $2.25 To Order
Photo Part No Description Price (each) Stock
LR008793 SCREW $0.99 To Order
Photo Part No Description Price (each) Stock
LR041044 SENSOR - HEATER TEMPERATURE CONTROL $19.55 To Order
Photo Part No Description Price (each) Stock
LR035933 DUCT - AIR VENT $32.25 To Order
LR047604 DUCT - AIR VENT $47.21 To Order
LR099181 DUCT - AIR VENT $43.83 To Order
Photo Part No Description Price (each) Stock
LR035935 DUCT - AIR VENT $32.25 To Order
LR047605 DUCT - AIR VENT $46.91 To Order
LR099180 DUCT - AIR VENT $42.52 To Order
Photo Part No Description Price (each) Stock
LR099179 DUCT - AIR VENT $42.98 To Order
Photo Part No Description Price (each) Stock
LR035931 DEFLECTOR - HEATER AIR - UNDERFLOOR $22.51 To Order
Photo Part No Description Price (each) Stock
LR035932 DEFLECTOR - HEATER AIR - UNDERFLOOR $22.51 To Order
Photo Part No Description Price (each) Stock
LR099182 DEFLECTOR - HEATER AIR - UNDERFLOOR $92.62 To Order
Photo Part No Description Price (each) Stock
LR038633 DUCT - HEATER OUTLET $133.53 To Order
LR053648 DUCT - HEATER OUTLET $116.01 To Order
LR053648 DUCT - HEATER OUTLET $116.01 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR100441 DUCT - HEATER OUTLET $197.80 To Order
LR148084 DUCT - HEATER OUTLET $207.26 To Order
View All

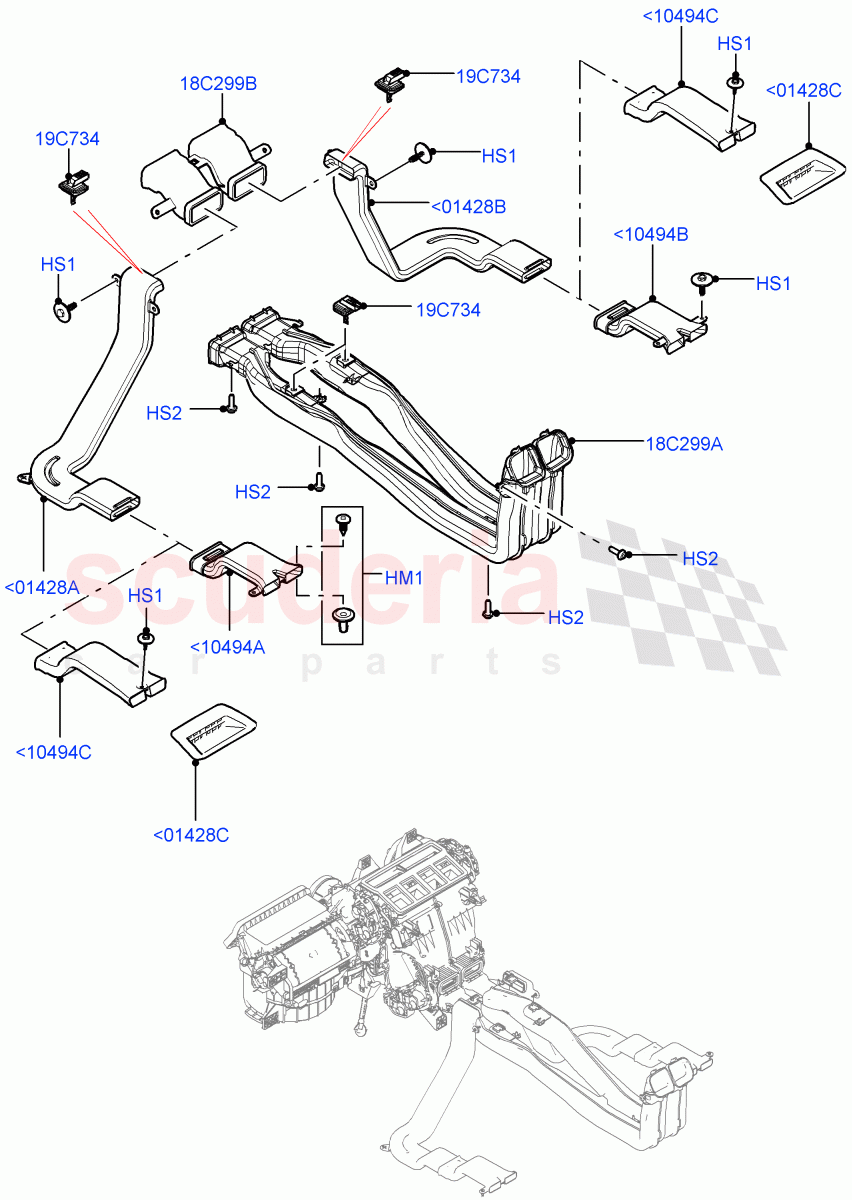

Air Vents, Louvres And Ducts (Internal Components, Floor) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<01428A LR035933
DUCT - AIR VENT
LH, Under Front Seat / To: DA113260 		$32.25 1
<01428A LR047604
DUCT - AIR VENT
LH, Under Front Seat / From: DA113261 / To: HA999999 		$47.21 1
<01428A LR099181
DUCT - AIR VENT
LH, Under Front Seat / From: JA000001 		$43.83 1
<01428B LR035935
DUCT - AIR VENT
RH, Under Front Seat / To: DA113260 		$32.25 1
<01428B LR047605
DUCT - AIR VENT
RH, Under Front Seat / From: DA113261 / To: HA999999 		$46.91 1
<01428B LR099180
DUCT - AIR VENT
RH, Under Front Seat / From: JA000001 		$42.52 1
<01428C LR099179
DUCT - AIR VENT
Finisher, RH/LH, Under Front Seat / From: JA000001 		$42.98 2
<10494A LR035931
DEFLECTOR - HEATER AIR - UNDERFLOOR
LH, Under Front Seat / To: HA999999 		$22.51 1
<10494B LR035932
DEFLECTOR - HEATER AIR - UNDERFLOOR
RH, Under Front Seat / To: HA999999 		$22.51 1
<10494C LR099182
DEFLECTOR - HEATER AIR - UNDERFLOOR
RH/LH, Under Front Seat / From: JA000001 		$92.62 2
HM1 LR005541
RIVET - PLASTIC
Rivet Push Pin 7 X 3-4.5
IN STOCK 		$0.83 2
HS1 LR033052
SCREW AND WASHER - SELF-TAPPING
5 x 20MM, Screw And Washer 		$2.25 6
HS2 LR008793
SCREW
M5 X 16MM, Torx 		$0.99 7
18C299A LR038633
DUCT - HEATER OUTLET
Standard Wheelbase / Centre Console, Lower / To: EA154254 		$133.53 1
18C299A LR053648
DUCT - HEATER OUTLET
Long Wheelbase / Centre Console, Lower / From: EA154255 / To: GA999999 		$116.01 1
18C299A LR053648
DUCT - HEATER OUTLET
Long Wheelbase / Centre Console, Lower / From: HA000001 / To: HA999999 		$116.01 1
18C299A LR053275
DUCT - HEATER OUTLET
Standard Wheelbase / Centre Console, Lower / From: EA154255 / To: GA999999 		$237.79 1
18C299A LR053275
DUCT - HEATER OUTLET
Standard Wheelbase / Centre Console, Lower / From: HA000001 / To: HA999999 		$237.79 1
18C299A LR100439
DUCT - HEATER OUTLET
Standard Wheelbase / Centre Console, Lower / From: JA000001 		$179.61 1
18C299A LR100440
DUCT - HEATER OUTLET
Long Wheelbase, With 60/40 Manual Fold Thru Rr Seat / Lower / From: JA000001 		$168.62 1
18C299B LR100441
DUCT - HEATER OUTLET
Centre Console, Upper / From: JA000001 / To: MA418558 		$197.80 1
18C299B LR148084
DUCT - HEATER OUTLET
Centre Console, Upper / From: MA418559 		$207.26 1
19C734 LR041044
SENSOR - HEATER TEMPERATURE CONTROL 		$19.55 4
