Name: Heater Hoses (Front) (3.0L DOHC GDI SC V6 PETROL, Park Heating With Remote Control, With Park Heating) ((V) FROMJA000001, (V) TOJA999999)
Rating: 5.0 (1 reviews)

Heater Hoses (Front) (3.0L DOHC GDI SC V6 PETROL, Park Heating With Remote Control, With Park Heating) ((V) FROMJA000001, (V) TOJA999999) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Heater Hoses (Front) (3.0L DOHC GDI SC V6 PETROL, Park Heating With Remote Control, With Park...

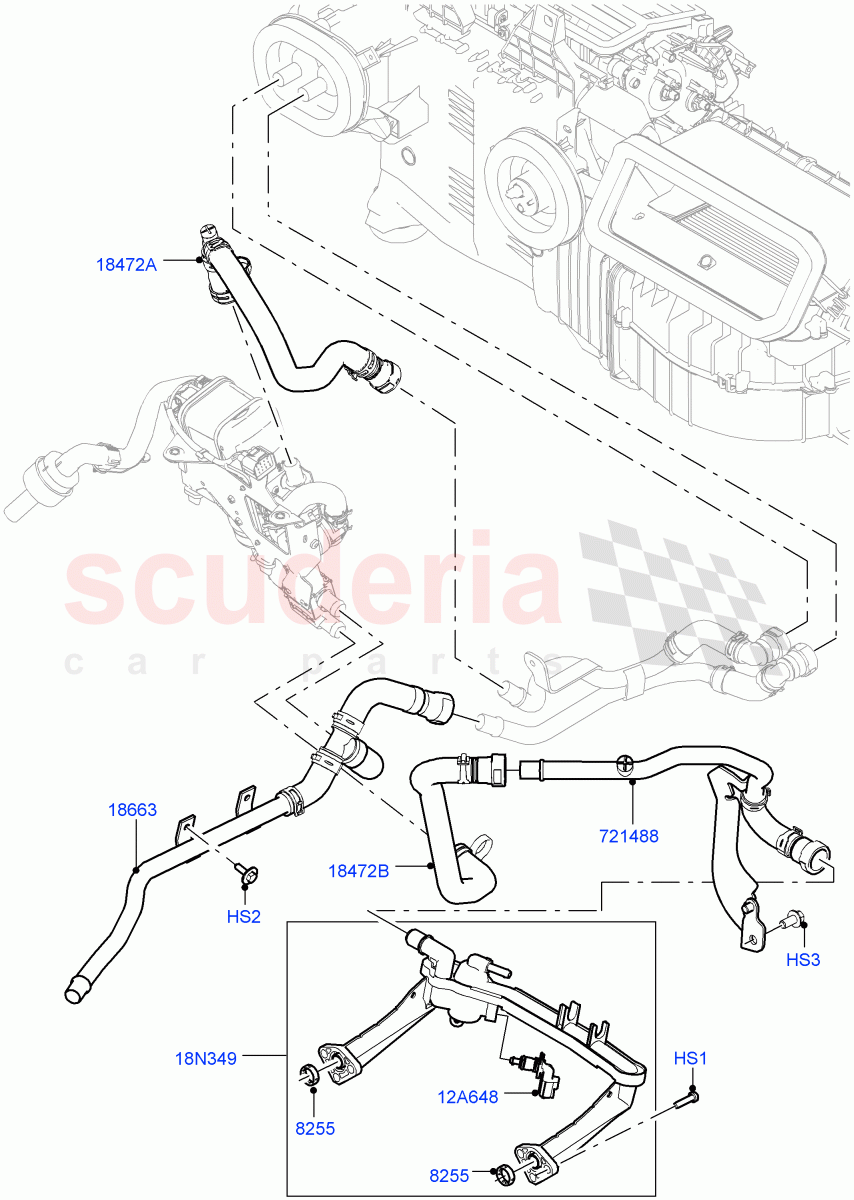

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR011270	SCREW	$1.23	To Order

Photo	Part No	Description	Price (each)	Stock
	KYG500380	SCREW AND WASHER - HEX HEAD	$0.36	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR061621	BOLT	$1.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR010793	GASKET - WATER MANIFOLD	$9.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034598	TUBE - HEATER WATER	$384.27	To Order

Photo	Part No	Description	Price (each)	Stock
	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	$59.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100017	HOSE - HEATER WATER	$57.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133648	HOSE - HEATER WATER	$48.56	To Order
	LR093434	HOSE - HEATER WATER	$67.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR109401	MANIFOLD - HEATER	$123.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034624	HOSE AND BRACKET - HEATING	$102.16	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	LR011270	SCREW	LR011270 SCREW M6 x 25MM, Torx / From: JA000001	$1.23	4
HS2	KYG500380	SCREW AND WASHER - HEX HEAD IN STOCK	KYG500380 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 X 13.5MM / From: JA000001 IN STOCK	$0.36	2
HS3	LR061621	BOLT	LR061621 BOLT M10 x 16MM / From: JA000001	$1.75	1
12A648	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	4346360 SENSOR - ENGINE COOLANT TEMPERATURE From: JA000001	$59.63	1
18N349	LR109401	MANIFOLD - HEATER	LR109401 MANIFOLD - HEATER Heater, Tube From Engine Block To Heater Inlet Hose, With Sensor / From: JA000001	$123.63	1
8255	LR010793	GASKET - WATER MANIFOLD	LR010793 GASKET - WATER MANIFOLD From: JA000001	$9.60	2
18472A	LR100017	HOSE - HEATER WATER	LR100017 HOSE - HEATER WATER Upper / From: JA000001	$57.77	1
18472B	LR133648	HOSE - HEATER WATER	LR133648 HOSE - HEATER WATER Less Head Impact Crash Criteria / (+) ROW, From Engine To Fuel Fired Heater / From: JA000001	$48.56	1
18472B	LR093434	HOSE - HEATER WATER	LR093434 HOSE - HEATER WATER Electric Auxiliary Coolant Pump, With Head Impact Crash Criteria / (+)"NAS", From Engine To Fuel Fired Heater, Lower / From: JA000001	$67.47	1
18663	LR034598	TUBE - HEATER WATER	LR034598 TUBE - HEATER WATER From: JA000001	$384.27	1
721488	LR034624	HOSE AND BRACKET - HEATING	LR034624 HOSE AND BRACKET - HEATING From Engine Block To Heater Inlet Hose / From: JA000001	$102.16	1

Heater Hoses (Front) (3.0L Dohc Gdi Sc V6 Petrol, Park Heating With Remote Control, With Park...
