Name: Water Pump (Auxiliary Unit) (2.0L AJ200P Hi PHEV) ((V) FROMJA000001)
Rating: 4.4 (1 reviews)

View All

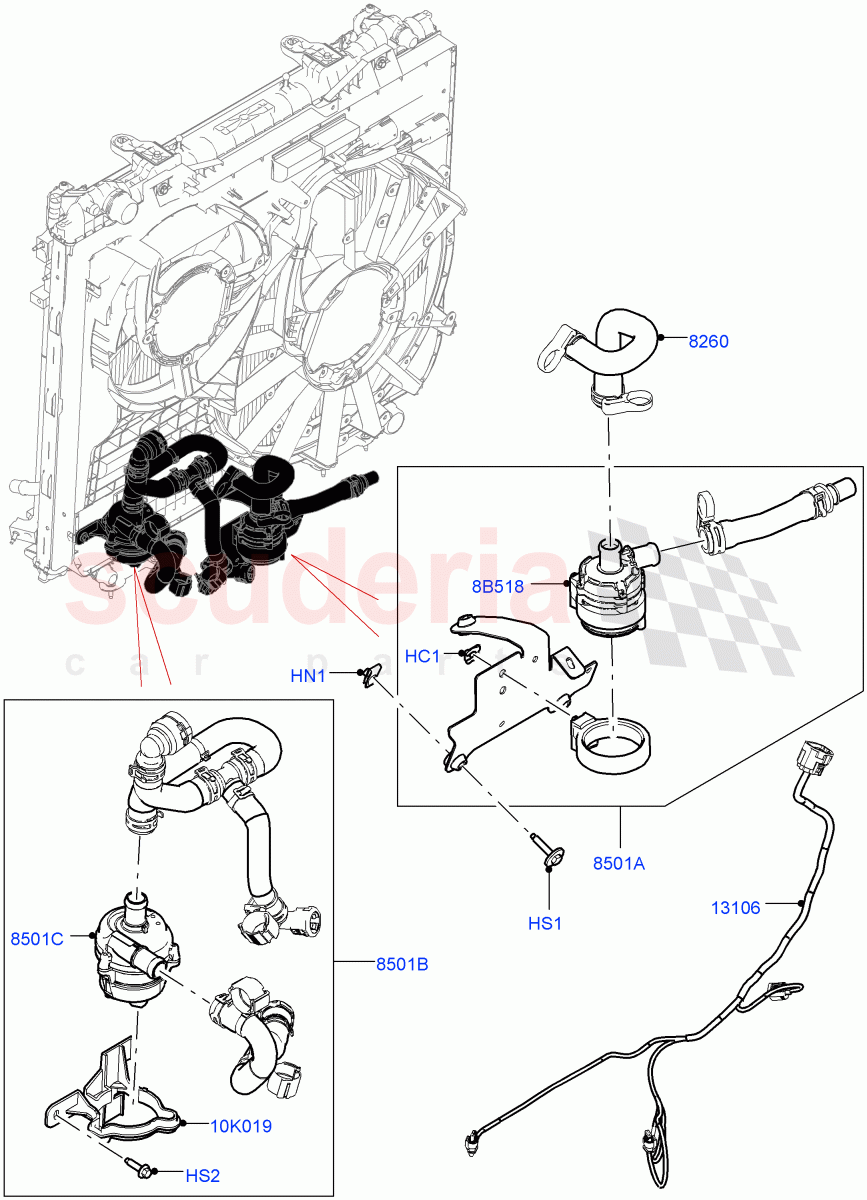

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR050932	CLIP - RETAINING	$1.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000053	NUT - FLANGED	$1.62	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.20	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500220	SCREW	$3.46	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR100982	PUMP - WATER	$276.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100915	PUMP - WATER	$234.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095160	PUMP - WATER	$284.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049317	PUMP - WATER	$249.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082251	CLAMP - WATER PUMP MOUNTING	$8.31	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR050932	CLIP - RETAINING	LR050932 CLIP - RETAINING 8 X 1.2 / From: JA000001	$1.76	2
HN1	LR000053	NUT - FLANGED IN STOCK	LR000053 NUT - FLANGED M6 / From: JA000001 IN STOCK	$1.62	2
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30 / From: JA000001	$4.20	3
HS2	RYG500220	SCREW IN STOCK	RYG500220 SCREW Hexagonal Head, M6 X 20MM / From: JA000001 IN STOCK	$3.46	1
8B518	LR049317	PUMP - WATER	LR049317 PUMP - WATER RH, Electric / From: JA000001	$249.48	1
10K019	LR082251	CLAMP - WATER PUMP MOUNTING	LR082251 CLAMP - WATER PUMP MOUNTING From: JA000001	$8.31	1
8260	LR100983	HOSE - WATER	LR100983 HOSE - WATER Pump To Transmission Oil Cooler / From: JA000001 / To: KA540575	$62.83	1
8260	LR125202	HOSE - WATER	LR125202 HOSE - WATER Pump To Transmission Oil Cooler / From: KA540576	$57.75	1
8501A	LR100982	PUMP - WATER	LR100982 PUMP - WATER RH, Auxiliary Water Pump Assembly / From: JA000001	$276.71	1
8501B	LR100915	PUMP - WATER	LR100915 PUMP - WATER LH, Auxiliary Water Pump Assembly / From: JA000001	$234.10	1
8501C	LR095160	PUMP - WATER	LR095160 PUMP - WATER LH, Electric / From: JA000001	$284.39	1
13106	LR102673	WIRING - WATER PUMP	LR102673 WIRING - WATER PUMP From: JA000001 / To: KA550752	$78.06	1
13106	LR128787	WIRING - WATER PUMP	LR128787 WIRING - WATER PUMP From: KA550753	$99.11	1

Water Pump (Auxiliary Unit) (2.0L Aj200P Hi Phev) ((V) Fromja000001)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]
