Name: Cooling System Pipes And Hoses (Electric Motor Cooling Systems) (2.0L AJ200P Hi PHEV) ((V) FROMJA000001)
Rating: 4.5 (1 reviews)

Cooling System Pipes And Hoses (Electric Motor Cooling Systems) (2.0L AJ200P Hi PHEV) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Cooling System Pipes And Hoses (Electric Motor Cooling Systems) (2.0L AJ200P Hi PHEV) ((V)...

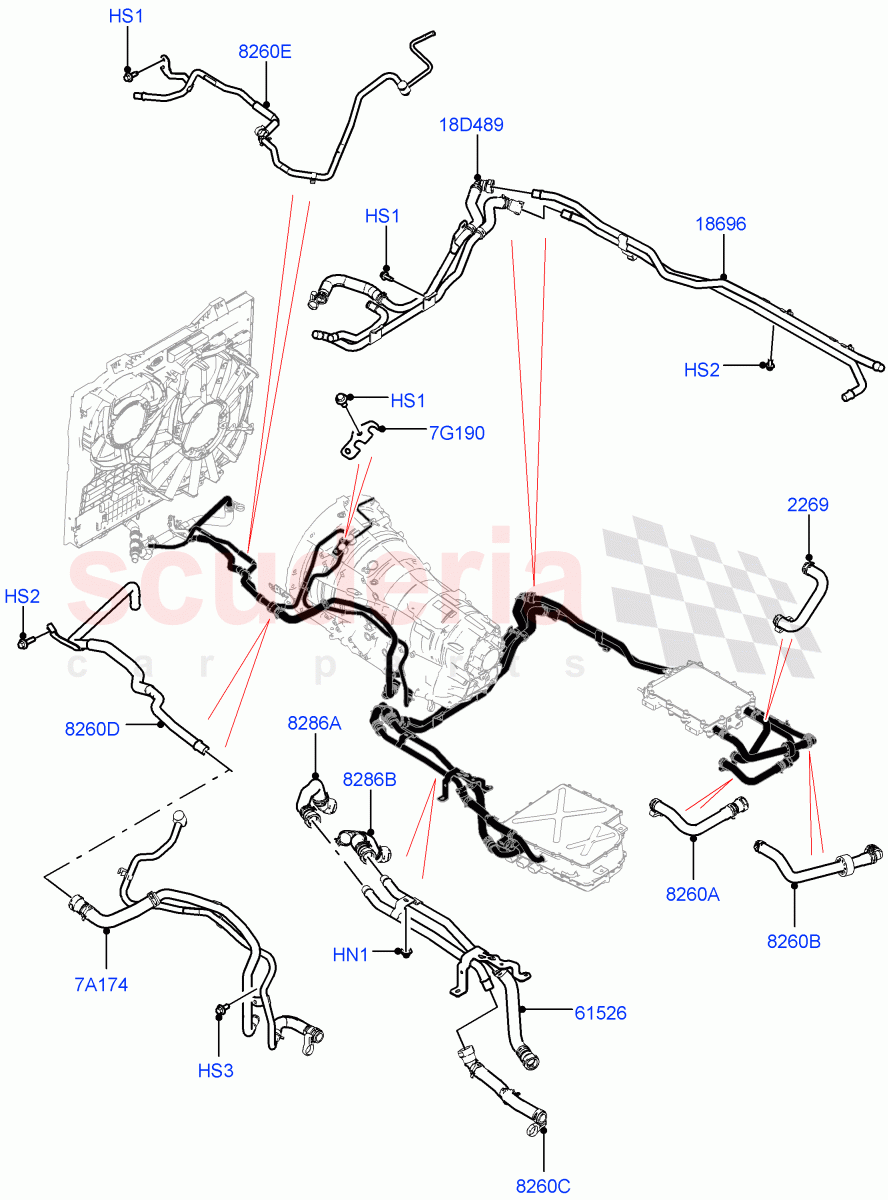

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR038544	NUT	$2.10	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106146	SCREW	$0.47	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500200	SCREW	$0.94	To Order

Photo	Part No	Description	Price (each)	Stock
	FA106126	SCREW	$0.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR100946	TUBE - INVERTER COOLING	$46.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100938	TUBE - INVERTER COOLING	$107.02	To Order
	LR124803	TUBE - INVERTER COOLING	$503.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100960	TUBE ASSEMBLY - CHARGER	$440.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100750	PIPE - MOTOR/GENERATOR COOLING	$149.68	To Order
	LR118347	PIPE - MOTOR/GENERATOR COOLING	$135.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100985	PLATE - MOUNTING	$8.98	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100964	TUBE - INVERTER COOLING	$52.48	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100961	TUBE - INVERTER COOLING	$50.45	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100937	HOSE - WATER INLET	$56.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100978	TUBE - INVERTER COOLING	$249.42	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100939	PIPE - MOTOR/GENERATOR COOLING	$189.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100950	HOSE - WATER	$58.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100951	HOSE - WATER	$55.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100977	HOSE - WATER	$861.11	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	LR038544	NUT	LR038544 NUT 6 X 1.6MM / From: JA000001	$2.10	2
HS1	FS106146	SCREW	FS106146 SCREW Hex Head, Hexagonal Head, M6 X 14MM / From: JA000001	$0.47	5
HS2	RYP500200	SCREW	RYP500200 SCREW Hexagonal Head, M6 X 20MM / From: JA000001	$0.94	3
HS3	FA106126	SCREW IN STOCK	FA106126 SCREW Hexagonal Head, M6 x 12MM / From: JA000001 IN STOCK	$0.47	2
7A174	LR100750	PIPE - MOTOR/GENERATOR COOLING	LR100750 PIPE - MOTOR/GENERATOR COOLING Feed / From: JA000001 / To: JA399340	$149.68	1
7A174	LR118347	PIPE - MOTOR/GENERATOR COOLING	LR118347 PIPE - MOTOR/GENERATOR COOLING Feed / From: JA399341	$135.93	1
7G190	LR100985	PLATE - MOUNTING	LR100985 PLATE - MOUNTING From: JA000001	$8.98	1
18D489	LR100977	HOSE - WATER	LR100977 HOSE - WATER From: JA000001	$861.11	1
2269	LR100946	TUBE - INVERTER COOLING	LR100946 TUBE - INVERTER COOLING Converter To Inverter / From: JA000001	$46.54	1
8260A	LR100964	TUBE - INVERTER COOLING	LR100964 TUBE - INVERTER COOLING Inverter, Outlet / From: JA000001	$52.48	1
8260B	LR100961	TUBE - INVERTER COOLING	LR100961 TUBE - INVERTER COOLING Inlet, Inverter / From: JA000001	$50.45	1
8260C	LR100937	HOSE - WATER INLET	LR100937 HOSE - WATER INLET Battery Charger Inlet / From: JA000001	$56.36	1
8260D	LR100978	TUBE - INVERTER COOLING	LR100978 TUBE - INVERTER COOLING Auxiliary Radiator To Inverter / From: JA000001	$249.42	1
8260E	LR100939	PIPE - MOTOR/GENERATOR COOLING	LR100939 PIPE - MOTOR/GENERATOR COOLING Crank Integrated Motor Generator, Return / From: JA000001	$189.37	1
8286A	LR100950	HOSE - WATER	LR100950 HOSE - WATER Inverter To Battery Charger / From: JA000001	$58.92	1
8286B	LR100951	HOSE - WATER	LR100951 HOSE - WATER Battery Charger to Crankshaft Integrated Motor Generator / From: JA000001	$55.90	1
18696	LR100938	TUBE - INVERTER COOLING	LR100938 TUBE - INVERTER COOLING From: JA000001 / To: KA560609	$107.02	1
18696	LR124803	TUBE - INVERTER COOLING	LR124803 TUBE - INVERTER COOLING From: KA560610	$503.60	1
61526	LR100960	TUBE ASSEMBLY - CHARGER	LR100960 TUBE ASSEMBLY - CHARGER From: JA000001	$440.63	1
