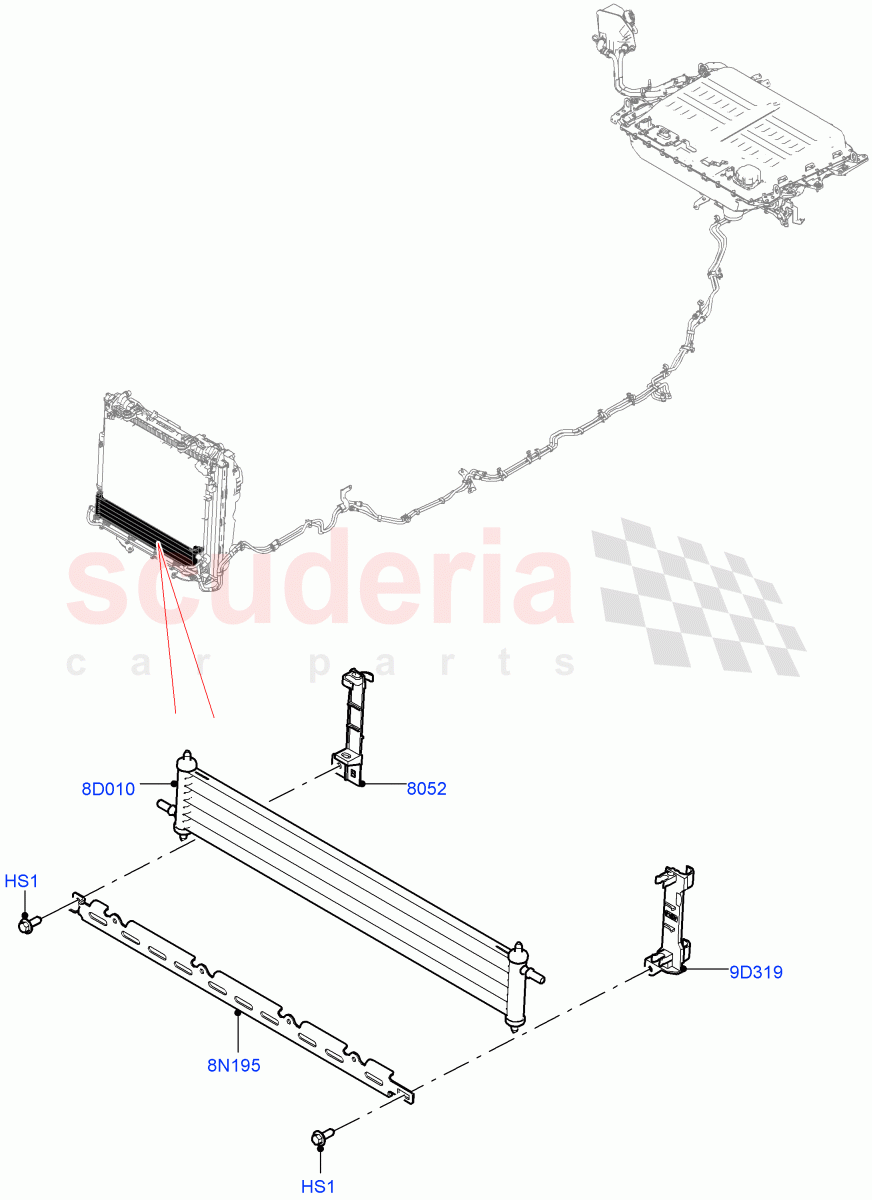

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	PYP500070	SCREW	$0.80	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071016	BRACKET - RADIATOR	$10.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034575	RADIATOR - AUXILIARY	$174.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR143230	BRACKET - RADIATOR	$59.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100830	BRACKET - RADIATOR	$11.08	To Order

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HS1	PYP500070	SCREW	PYP500070 SCREW 6 x 16MM, Hexagonal Head / From: JA000001	$0.80	2
8D010	LR034575	RADIATOR - AUXILIARY	LR034575 RADIATOR - AUXILIARY Traction Battery / From: JA000001	$174.65	1
8N195	LR143230	BRACKET - RADIATOR	LR143230 BRACKET - RADIATOR Front, Radiator Mounting / From: JA000001	$59.06	1
9D319	LR100830	BRACKET - RADIATOR	LR100830 BRACKET - RADIATOR LH, Radiator Mounting / From: JA000001	$11.08	1
8052	LR071016	BRACKET - RADIATOR	LR071016 BRACKET - RADIATOR RH, Radiator Mounting / From: JA000001	$10.75	1
