Cooling System Pipes And Hoses (Engine Cooling System) (2.0L Aj200P Hi Phev) ((V) Fromja000001)

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] - Cooling System Pipes And Hoses (Engine Cooling System) (2.0L AJ200P Hi PHEV) ((V) FROMJA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR100794 HOSE - WATER $112.18 To Order
LR125200 HOSE - WATER $112.18 To Order
LR143443 HOSE - WATER $242.28 To Order
Photo Part No Description Price (each) Stock
LR100817 HOSE - RADIATOR $145.73 To Order
Photo Part No Description Price (each) Stock
LR100834 HOSE - WATER $70.15 To Order
Photo Part No Description Price (each) Stock
LR108588 HOSE - OIL COOLER $54.62 To Order
Photo Part No Description Price (each) Stock
LR106823 HOSE - RADIATOR $52.37 To Order
Photo Part No Description Price (each) Stock
LR100081 HOSE - RADIATOR $72.88 To Order
Photo Part No Description Price (each) Stock
LR108580 HOSE - WATER $40.64 To Order
Photo Part No Description Price (each) Stock
LR100824 HOSE - WATER $58.87 To Order
LR143442 HOSE - WATER $70.15 To Order
Photo Part No Description Price (each) Stock
LR100826 HOSE - WATER $62.83 To Order
Photo Part No Description Price (each) Stock
LR100553 HOSE - WATER $79.66 To Order
Photo Part No Description Price (each) Stock
LR110245 HOSE - WATER $56.35 To Order
Photo Part No Description Price (each) Stock
LR100552 HOSE - COOLANT BLEED $61.16 To Order
LR138370 HOSE - COOLANT BLEED $76.65 To Order
Photo Part No Description Price (each) Stock
LR100554 HOSE - COOLANT BLEED $53.97 To Order
Photo Part No Description Price (each) Stock
LR100829 HOSE - WATER $254.63 To Order
View All

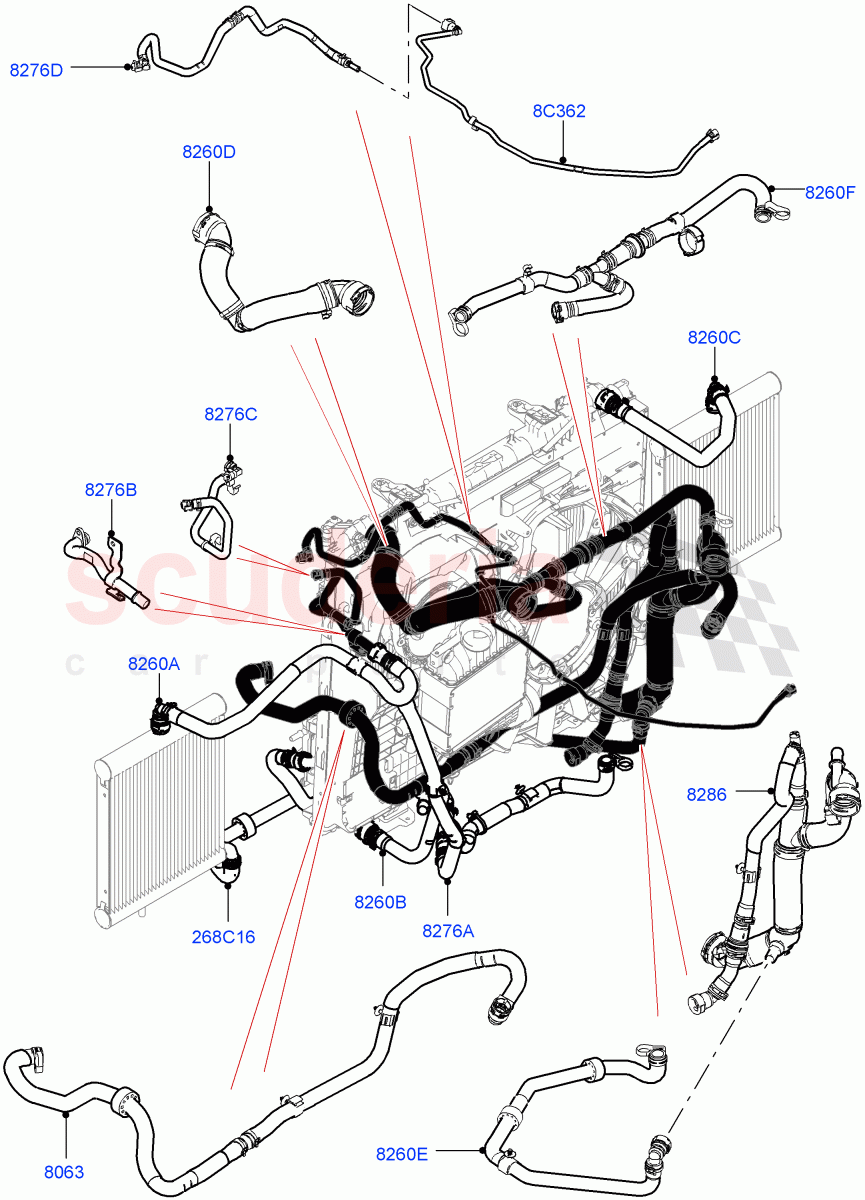

Cooling System Pipes And Hoses (Engine Cooling System) (2.0L AJ200P Hi PHEV) ((V) FROMJA000001) of Land Rover Land Rover Range Rover (2012-2021) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
8C362 LR100554
HOSE - COOLANT BLEED
From Engine To Expansion Tank / From: JA000001 		$53.97 1
268C16 LR100829
HOSE - WATER
LH, Auxiliary Radiator / From: JA000001 		$254.63 1
8063 LR100794
HOSE - WATER
From Engine To Expansion Tank / From: JA000001 / To: KA540575 		$112.18 1
8063 LR125200
HOSE - WATER
From Engine To Expansion Tank / From: KA540576 / To: MA416603 		$112.18 1
8063 LR143443
HOSE - WATER
From Engine To Expansion Tank / From: MA416604 		$242.28 1
8260A LR100834
HOSE - WATER
LH, Auxiliary Radiator, Feed / From: JA000001 		$70.15 1
8260B LR108588
HOSE - OIL COOLER
From Transmission Oil Cooler To Radiator / From: JA000001 		$54.62 1
8260C LR106823
HOSE - RADIATOR
RH, Auxiliary Radiator, Feed / From: JA000001 		$52.37 1
8260D LR100081
HOSE - RADIATOR
Radiator, Top / From: JA000001 		$72.88 1
8260E LR108580
HOSE - WATER
RH, Auxiliary Radiator, Outlet / From: JA000001 		$40.64 1
8260F LR100824
HOSE - WATER
Intercooler Outlet / From: JA000001 / To: MA416927 		$58.87 1
8260F LR143442
HOSE - WATER
Intercooler Outlet / From: MA416928 		$70.15 1
8276A LR100826
HOSE - WATER
Intercooler Inlet / From: JA000001 		$62.83 1
8276B LR100553
HOSE - WATER
Water Charge Air Cooler / From: JA000001 		$79.66 1
8276C LR110245
HOSE - WATER
Radiator Degas Line / From: JA000001 		$56.35 1
8276D LR100552
HOSE - COOLANT BLEED
To Expansion Tank / From: JA000001 / To: LA586392 		$61.16 1
8276D LR138370
HOSE - COOLANT BLEED
To Expansion Tank / From: LA586393 		$76.65 1
8286 LR100817
HOSE - RADIATOR
Lower / From: JA000001 		$145.73 1
