Engine Harness (2.0L I4 Dsl Mid Dohc Aj200, 2.0L I4 Dsl High Dohc Aj200)

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] - Engine Harness (2.0L I4 DSL MID DOHC AJ200, 2.0L I4 DSL HIGH DOHC AJ200)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
1305834 BOLT $2.28 To Order
LR138938 BOLT $1.01 To Order
Photo Part No Description Price (each) Stock
LR083620 CLIP - RETAINING $3.53 To Order
Photo Part No Description Price (each) Stock
LR000048 NUT - HEX. - FLANGED $0.52 To Order
Photo Part No Description Price (each) Stock
RYH500340 NUT AND WASHER - HEX. $1.07 To Order
Photo Part No Description Price (each) Stock
RYG500190 SCREW $0.73 IN STOCK
Photo Part No Description Price (each) Stock
FA108202 SCREW $1.36 To Order
LR124564 SCREW $2.24 To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW $1.60 IN STOCK
Photo Part No Description Price (each) Stock
LR089197 STUD $4.00 To Order
Photo Part No Description Price (each) Stock
LR094851 WIRING - STARTER CABLE $210.35 To Order
Photo Part No Description Price (each) Stock
LR093623 BRACKET - WIRING $13.92 To Order
Photo Part No Description Price (each) Stock
LR086133 WIRE - GLOW PLUG $75.04 To Order
LR110286 WIRE - GLOW PLUG $79.04 To Order
Photo Part No Description Price (each) Stock
LR092882 WIRING - ENGINE $1,196.96 To Order
LR113217 WIRING - ENGINE $1,545.54 To Order
LR092877 WIRING - ENGINE $1,062.26 To Order
...and 11 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR091266 GROMMET - WIRING $4.79 To Order
Photo Part No Description Price (each) Stock
LR091267 GROMMET - WIRING $5.15 To Order
Photo Part No Description Price (each) Stock
LR125686 BRACKET - ENGINE WIRING $14.98 To Order
Photo Part No Description Price (each) Stock
LR094772 WIRE - ENGINE EARTH $44.00 To Order
Photo Part No Description Price (each) Stock
LR070822 WIRING - STARTER MOTOR $76.21 To Order
Photo Part No Description Price (each) Stock
LR083964 WIRING - STARTER MOTOR $55.27 To Order
LR110287 WIRING - STARTER MOTOR $54.44 To Order
Photo Part No Description Price (each) Stock
LR083960 WIRING - STARTER MOTOR $49.64 To Order
LR101578 WIRING $83.47 To Order
Photo Part No Description Price (each) Stock
LR123783 PLUG - BLANKING $4.07 To Order
Photo Part No Description Price (each) Stock
LR123784 PLUG - BLANKING $6.24 To Order
Photo Part No Description Price (each) Stock
LR123785 PLUG - BLANKING $5.96 To Order
Photo Part No Description Price (each) Stock
LR123786 PLUG - BLANKING $4.13 To Order
Photo Part No Description Price (each) Stock
LR123787 PLUG - BLANKING $6.31 To Order
View All

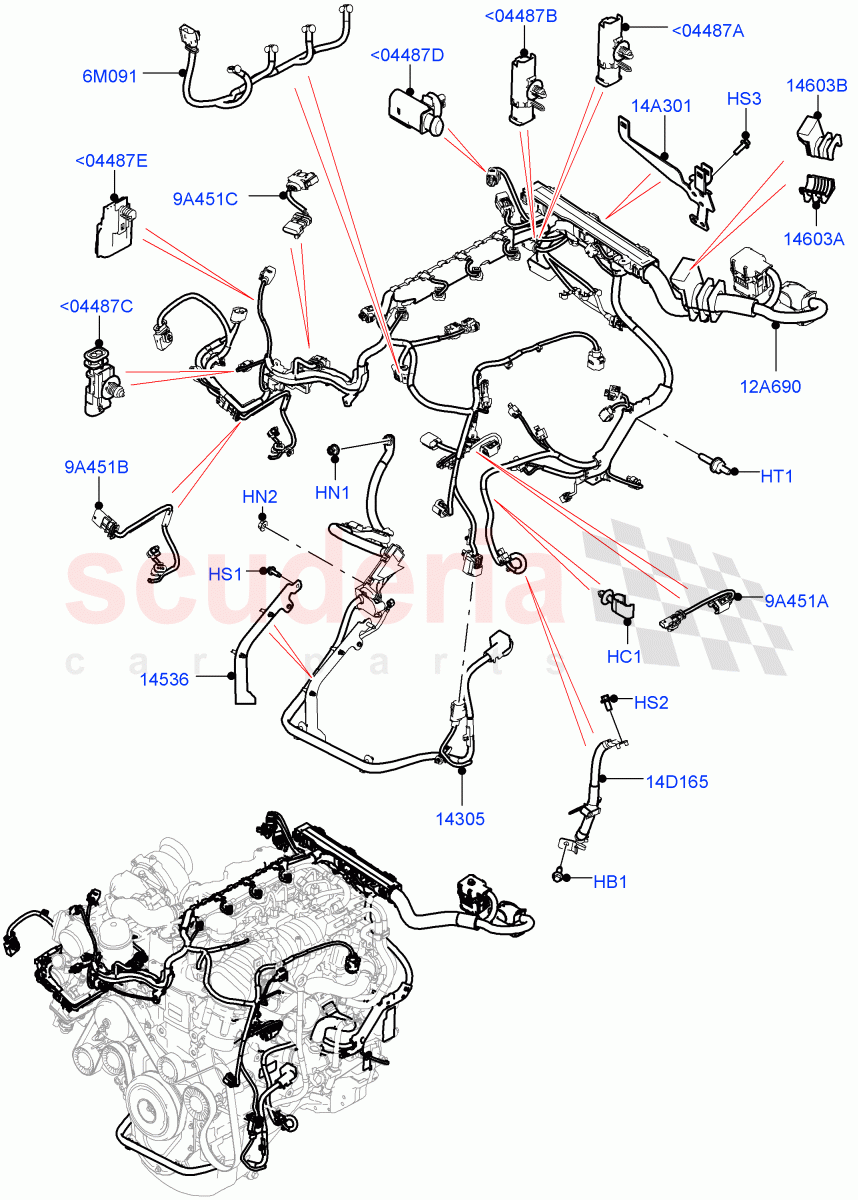

Engine Harness (2.0L I4 DSL MID DOHC AJ200, 2.0L I4 DSL HIGH DOHC AJ200) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<04487A LR123783
PLUG - BLANKING
Euro Stage 4 Emissions / DPF Outlet 		$4.07 1
<04487B LR123784
PLUG - BLANKING
Euro Stage 4 Emissions / DPF Inlet 		$6.24 1
<04487C LR123785
PLUG - BLANKING
Euro Stage 4 Emissions / High Pressure EGR 		$5.96 1
<04487D LR123786
PLUG - BLANKING
Euro Stage 4 Emissions / Low Pressure EGR 		$4.13 1
<04487E LR123787
PLUG - BLANKING
Euro Stage 4 Emissions / Low Pressure EGR, Throttle 		$6.31 1
HB1 1305834
BOLT
Engine Earth, M8 X 20MM / To: LA271169 		$2.28 1
HB1 LR138938
BOLT
Engine Earth, M8 X 20MM / From: LA271170 		$1.01 1
HC1 LR083620
CLIP - RETAINING
Engine Harness 		$3.53 1
HN1 LR000048
NUT - HEX. - FLANGED
M8 		$0.52 1
HN2 RYH500340
NUT AND WASHER - HEX.
M8, Nut And Washer 		$1.07 4
HS1 RYG500190
SCREW
Bracket, Front, Hexagonal Head, M6 X 16MM
IN STOCK 		$0.73 2
HS2 FA108202
SCREW
Engine Earth, Hexagonal Head, M8 X 20MM, Taptite / To: LA271169 		$1.36 1
HS2 LR124564
SCREW
Engine Earth, Hexagonal Head, M8 X 20MM, Taptite / From: LA271170 		$2.24 1
HS3 LR073655
SCREW
Bracket, Hexagonal Head, M6 X 20MM, Rear
IN STOCK 		$1.60 2
HT1 LR089197
STUD
M6 x 22 mm + M6 x 12 mm 		$4.00 2
6M091 LR086133
WIRE - GLOW PLUG
To: JA744848 		$75.04 1
6M091 LR110286
WIRE - GLOW PLUG
From: JA744849 		$79.04 1
9A451A LR070822
WIRING - STARTER MOTOR
Alternator 		$76.21 1
9A451B LR083964
WIRING - STARTER MOTOR
Coolant Temperature Sensor / To: JA731825 		$55.27 1
9A451B LR110287
WIRING - STARTER MOTOR
Coolant Temperature Sensor / From: JA731826 		$54.44 1
9A451C LR083960
WIRING - STARTER MOTOR
Service Repair Link - Turbocharger / To: JA999999 		$49.64 1
9A451C LR101578
WIRING
Service Repair Link - Turbocharger / From: KA000001 		$83.47 1
12A690 LR092882
WIRING - ENGINE
2.0L I4 DSL MID DOHC AJ200, Stage V Plus DPF / Engine / To: JA749063 		$1,196.96 1
12A690 LR113217
WIRING - ENGINE
2.0L I4 DSL HIGH DOHC AJ200 / Engine, For Engine Serial Number Later Than ESN 180130W0734204DTA / To: JA999999 		$1,545.54 1
12A690 LR092877
WIRING - ENGINE
2.0L I4 DSL MID DOHC AJ200, LEV 160 / Engine / To: JA756444 		$1,062.26 1
12A690 LR113863
WIRING - ENGINE
2.0L I4 DSL MID DOHC AJ200, EU6 + DPF Emissions / Engine / From: JA749064 / To: JA771905 		$1,114.58 1
12A690 LR113006
WIRING - ENGINE
2.0L I4 DSL HIGH DOHC AJ200 / Engine / From: KA000001 / To: KA211971 		$1,139.02 1
12A690 LR118837
WIRING - ENGINE
2.0L I4 DSL MID DOHC AJ200, Euro Stage 4 Emissions / Engine / From: KA000001 / To: KA210335 		$578.55 1
12A690 LR123812
WIRING - ENGINE
2.0L I4 DSL MID DOHC AJ200, L6 Diesel Emissions / Engine / From: KA210336 / To: MA300161 		$625.42 1
12A690 LR128717
WIRING - ENGINE
2.0L I4 DSL MID DOHC AJ200, LEV 160 / From: JA756445 / To: JA999999 		$1,652.23 1
12A690 LR128694
WIRING - ENGINE
2.0L I4 DSL HIGH DOHC AJ200 / Engine / From: KA211972 / To: MA300161 		$1,036.36 1
12A690 LR092884
WIRING - ENGINE
2.0L I4 DSL HIGH DOHC AJ200 / Engine, For Engine Serial Number Earlier Than ESN 180130W0734204DTA / To: JA999999 		$1,481.97 1
12A690 LR128717
WIRING - ENGINE
2.0L I4 DSL MID DOHC AJ200, LEV 160 / From: KA000001 		$1,652.23 1
12A690 LR144578
WIRING - ENGINE
2.0L I4 DSL MID DOHC AJ200, EU6 + DPF Emissions / Engine / From: JA771906 / To: JA999999 		$2,503.06 1
12A690 LR154598
WIRING - ENGINE
2.0L I4 DSL MID DOHC AJ200, L6 Diesel Emissions / Engine / From: MA300162 		$1,704.02 1
12A690 LR154599
WIRING - ENGINE
2.0L I4 DSL HIGH DOHC AJ200 / Engine / From: MA300162 		$2,545.43 1
14A301 LR125686
BRACKET - ENGINE WIRING
Rear 		$14.98 1
14D165 LR094772
WIRE - ENGINE EARTH
Engine Earth 		$44.00 1
14305 LR094851
WIRING - STARTER CABLE 		$210.35 1
14536 LR093623
BRACKET - WIRING
Wiring Assy 		$13.92 1
14603A LR091266
GROMMET - WIRING
Lower 		$4.79 1
14603B LR091267
GROMMET - WIRING
Upper 		$5.15 1
