Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] - Audio Equipment - Original Fit ((V) FROMMA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYP500930 SCREW $0.52 To Order
Photo Part No Description Price (each) Stock
LR129198 SCREW $0.97 To Order
Photo Part No Description Price (each) Stock
LR143119 AMPLIFIER - AUDIO SYSTEM $1,512.61 To Order
LR143120 AMPLIFIER - AUDIO SYSTEM $1,509.06 To Order
LR143121 AMPLIFIER - AUDIO SYSTEM $1,368.11 To Order
...and 8 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR141205 BRACKET - AMPLIFIER $13.46 To Order
Photo Part No Description Price (each) Stock
LR139095 CONTROL - AUDIO/VISUAL UNIT $1,554.78 To Order
LR156769 CONTROL - AUDIO/VISUAL UNIT $1,697.68 To Order
Photo Part No Description Price (each) Stock
LR156770 CONTROL - AUDIO/VISUAL UNIT $834.19 IN STOCK
LR156770 CONTROL - AUDIO/VISUAL UNIT $834.19 IN STOCK
Photo Part No Description Price (each) Stock
LR141129 BRACKET - AMPLIFIER $24.21 To Order
Photo Part No Description Price (each) Stock
LR141131 BRACKET - AMPLIFIER $23.81 To Order
Photo Part No Description Price (each) Stock
LR141234 BRACKET - AMPLIFIER $13.68 To Order
Photo Part No Description Price (each) Stock
LR061047 MICROPHONE - HANDS FREE SET $64.14 To Order
Photo Part No Description Price (each) Stock
LR129342 MICROPHONE - HANDS FREE SET $101.30 To Order
LR129342 MICROPHONE - HANDS FREE SET $101.30 To Order
View All

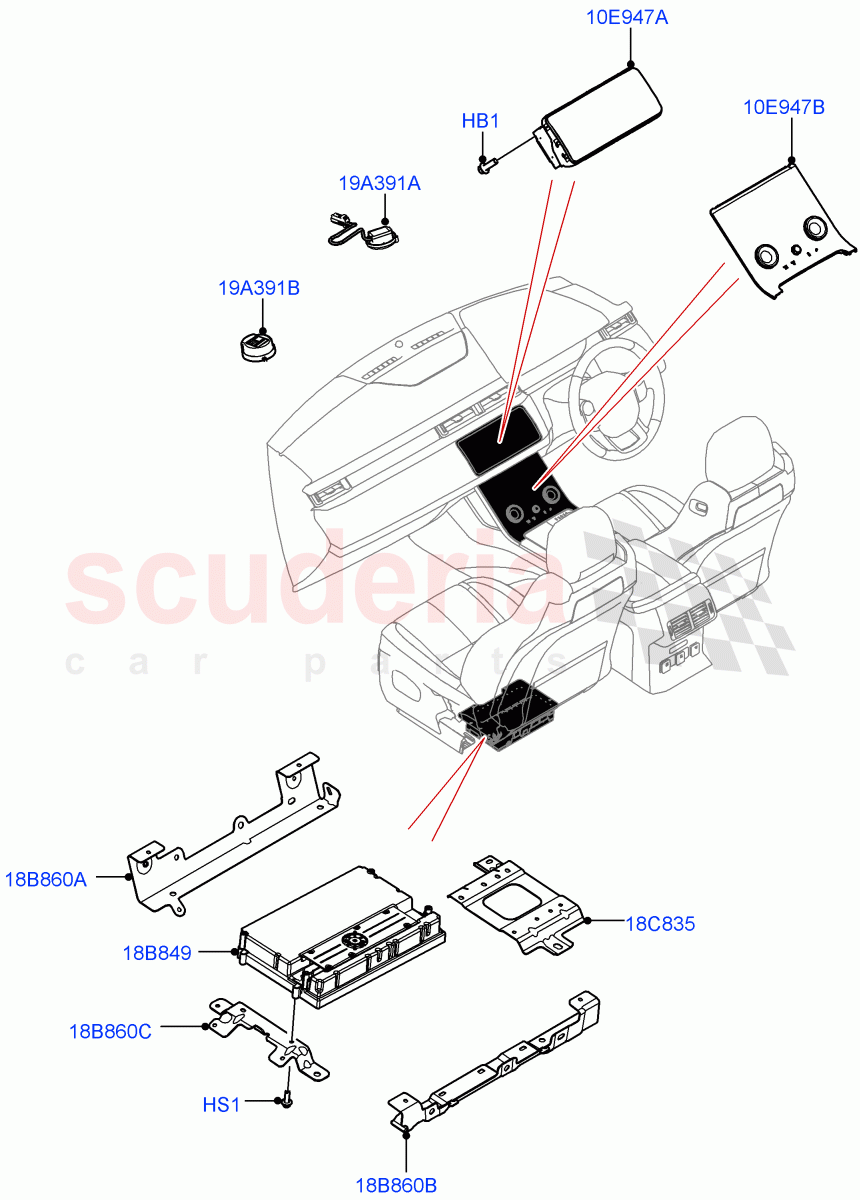

Audio Equipment - Original Fit ((V) FROMMA000001) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYP500930
SCREW
M5 X 16MM / From: MA000001 		$0.52 6
HS1 LR129198
SCREW
Hexagonal Head, M5 x 16mm / From: MA000001 		$0.97 4
10E947A LR139095
CONTROL - AUDIO/VISUAL UNIT
Upper / From: MA000001 / To: MA308395 		$1,554.78 1
10E947A LR156769
CONTROL - AUDIO/VISUAL UNIT
Upper / From: MA308396 		$1,697.68 1
10E947B LR156770
CONTROL - AUDIO/VISUAL UNIT
Version - R-Dynamic / Lower / From: MA000001 / To: MA308395
IN STOCK 		$834.19 1
10E947B LR156770
CONTROL - AUDIO/VISUAL UNIT
Version - R-Dynamic / Lower / From: MA308396
IN STOCK 		$834.19 1
18B849 LR143119
AMPLIFIER - AUDIO SYSTEM
Super Premium Audio 2500 W / From: MA000001 / To: MA999999 		$1,512.61 1
18B849 LR143120
AMPLIFIER - AUDIO SYSTEM
Standard Audio (Base) / From: MA000001 / To: MA328470 		$1,509.06 1
18B849 LR143121
AMPLIFIER - AUDIO SYSTEM
Hi Line Audio System - 600 W / From: MA000001 / To: MA328470 		$1,368.11 1
18B849 LR143122
AMPLIFIER - AUDIO SYSTEM
Meridian 3D Surround Sound System / From: MA000001 / To: MA999999 		$1,368.11 1
18B849 LR171445
AMPLIFIER - AUDIO SYSTEM
Hi Line Audio System - 600 W / From: NA000001 		$1,287.85 1
18B849 LR171450
AMPLIFIER - AUDIO SYSTEM
Meridian 3D Surround Sound System / From: NA000001 		$2,814.07 1
18B849 LR171451
AMPLIFIER - AUDIO SYSTEM
Super Premium Audio 2500 W / From: NA000001 		$2,972.05 1
18B849 LR171454
AMPLIFIER - AUDIO SYSTEM
Less Engine Order Cancellation, Standard Audio (Base) / From: NA000001 		$911.76 1
18B849 LR171455
AMPLIFIER - AUDIO SYSTEM
Engine Order Cancellation Gen 1, Standard Audio (Base) / From: NA000001 		$880.92 1
18B849 LR163217
AMPLIFIER - AUDIO SYSTEM
Standard Audio (Base) / From: MA328471 / To: MA999999 		$934.18 1
18B849 LR163218
AMPLIFIER - AUDIO SYSTEM
Hi Line Audio System - 600 W / From: MA328471 / To: MA999999 		$1,362.36 1
18B860A LR141129
BRACKET - AMPLIFIER
Front / From: MA000001 		$24.21 1
18B860B LR141131
BRACKET - AMPLIFIER
Rear / From: MA000001 		$23.81 1
18B860C LR141234
BRACKET - AMPLIFIER
LH / From: MA000001 		$13.68 1
18C835 LR141205
BRACKET - AMPLIFIER
RH / From: MA000001 		$13.46 1
19A391A LR061047
MICROPHONE - HANDS FREE SET
SOS / Assistance Call / Located In The Headliner / From: MA000001 		$64.14 1
19A391B LR129342
MICROPHONE - HANDS FREE SET
Less Active Road Noise Cancellation, Less Engine Order Cancellation / Front, Located In The Headliner, RH/LH / From: MA000001 		$101.30 2
19A391B LR129342
MICROPHONE - HANDS FREE SET
Engine Order Cancellation Gen 1, Less Active Road Noise Cancellation / Front / Rear, Located In The Headliner, RH/LH / From: MA000001 		$101.30 4
