Vehicle Modules And Sensors

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

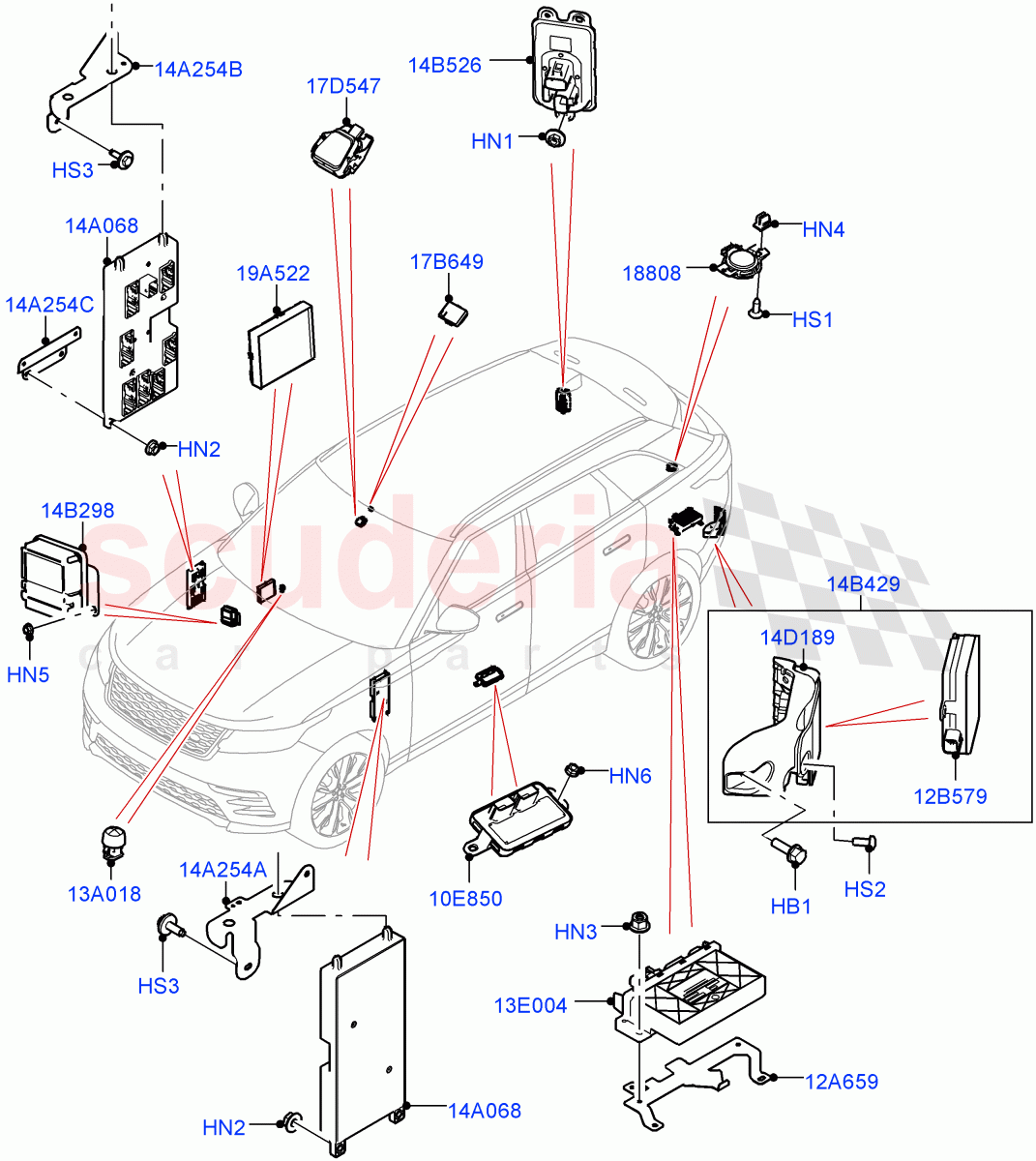

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] - Vehicle Modules And Sensors

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR093829 BOLT $1.22 To Order
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. $3.09 IN STOCK
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.46 IN STOCK
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. $0.68 IN STOCK
Photo Part No Description Price (each) Stock
RYH500900 NUT - PLASTIC - SPECIAL $1.05 To Order
Photo Part No Description Price (each) Stock
RYH500420 NUT AND WASHER - HEX. $0.44 IN STOCK
Photo Part No Description Price (each) Stock
FN106042 NUT $1.02 IN STOCK
Photo Part No Description Price (each) Stock
PYP500140 SCREW $0.77 IN STOCK
Photo Part No Description Price (each) Stock
LR018508 SCREW $0.96 To Order
Photo Part No Description Price (each) Stock
KYP500400 SCREW AND WASHER $0.61 To Order
KYP500400 SCREW AND WASHER $0.61 To Order
Photo Part No Description Price (each) Stock
LR049976 SPEAKER $136.94 To Order
Photo Part No Description Price (each) Stock
LR142058 AUDIO SENSOR INPUT MODULE $91.86 To Order
Photo Part No Description Price (each) Stock
LR091259 BRACKET - MODULE $19.62 To Order
Photo Part No Description Price (each) Stock
LR117395 SENSOR $808.47 To Order
LR140947 SENSOR - BLIND SPOT MONITORING $845.02 To Order
Photo Part No Description Price (each) Stock
LR086370 SENSOR - AIR CONDITIONER SUN LOAD $71.76 To Order
Photo Part No Description Price (each) Stock
LR091257 MODULE - BODY CONTROL $146.74 To Order
LR115624 MODULE - BODY CONTROL $336.38 To Order
LR129345 MODULE - BODY CONTROL $293.00 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR081506 BOX - FUSE $679.18 To Order
475123464 BOX - FUSE $663.75 To Order
LR110263 MODULE - BODY CONTROL $689.39 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR140943 MODULE-CONTROL $628.97 To Order
LR162090 MODULE-CONTROL $547.83 To Order
LR169859 MODULE-CONTROL $573.64 To Order
Photo Part No Description Price (each) Stock
LR091245 SENSOR - BLIND SPOT MONITORING $957.79 To Order
LR091246 SENSOR - BLIND SPOT MONITORING $957.79 To Order
LR110725 SENSOR - BLIND SPOT MONITORING $957.79 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR079623 MODULE - BATTERY $315.19 To Order
Photo Part No Description Price (each) Stock
LR142322 BRACKET $50.65 To Order
LR142321 BRACKET $50.65 To Order
LR143175 BRACKET $19.44 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR058011 SENSOR - CLIMATE CONTROL SYSTEM $143.78 To Order
Photo Part No Description Price (each) Stock
LR083315 MODULE - WINDSHIELD RAIN SENSOR $211.48 To Order
LR083313 MODULE - WINDSHIELD RAIN SENSOR $203.14 To Order
LR112879 MODULE - WINDSHIELD RAIN SENSOR $226.23 To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR090993 HEATER CONTROL $387.26 To Order
LR126759 HEATER CONTROL $384.19 To Order
LR141779 HEATER CONTROL $578.18 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR092787 BRACKET - JUNCTION BOX MOUNTING $19.72 To Order
Photo Part No Description Price (each) Stock
LR092786 BRACKET - JUNCTION BOX MOUNTING $18.59 To Order
Photo Part No Description Price (each) Stock
LR092788 BRACKET - JUNCTION BOX MOUNTING $19.72 To Order
View All
Vehicle Modules And Sensors of Land Rover Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR093829
BOLT
Lane Change Merge Aid / Hexagonal Head, M6 X 20MM 		$1.22 2
HN1 RYH500310
NUT AND WASHER - HEX.
Starter - Stop/Start System / Hexagonal Head, M6, Nut And Washer
IN STOCK 		$3.09 3
HN2 FN106046
NUT - HEX.
Hexagonal Head, M6
IN STOCK 		$1.46 3
HN3 FY106046
NUT - HEX.
Tow Hitch Man Detachable Swan Neck / Hexagonal Head, M6
IN STOCK 		$0.68 4
HN4 RYH500900
NUT - PLASTIC - SPECIAL
4.2 X 6.4 X 8.4 X 0.8 - 3.2 Plastic, To Speaker 		$1.05 2
HN5 RYH500420
NUT AND WASHER - HEX.
Driver Assistance Domain Controller, Hexagonal Head, M6, Nut And Washer / From: MA000001
IN STOCK 		$0.44 3
HN6 FN106042
NUT
ARNC GEN 1 / Audio Sensor Input Module, Hexagonal Head, M6, RH/LH / From: MA000001
IN STOCK 		$1.02 4
HS1 PYP500140
SCREW
4.2 x 13MM, Control Module, Torx
IN STOCK 		$0.77 2
HS2 LR018508
SCREW
Lane Change Merge Aid / M5 X 12MM, Torx 		$0.96 2
HS3 KYP500400
SCREW AND WASHER
RHD / Hexagonal Head, M6 X 16MM 		$0.61 1
HS3 KYP500400
SCREW AND WASHER
LHD / Hexagonal Head, M6 X 16MM 		$0.61 3
10E850 LR142058
AUDIO SENSOR INPUT MODULE
ARNC GEN 1 / Audio Sensor Input Module, RH/LH / From: MA000001 		$91.86 2
12A659 LR091259
BRACKET - MODULE
Tow Hitch Man Detachable Swan Neck 		$19.62 1
12B579 LR117395
SENSOR
Blind Spot Assist, Less Reverse Traffic Detection / From: JA000001 / To: JA740647 		$808.47 1
12B579 LR140947
SENSOR - BLIND SPOT MONITORING
Less Blind Spot Information System, Less Reverse Traffic Detection / From: MA000001 		$845.02 1
13A018 LR086370
SENSOR - AIR CONDITIONER SUN LOAD
Premium Air Conditioning-Front/Rear 		$71.76 1
13E004 LR091257
MODULE - BODY CONTROL
Tow Hitch Receiver 12 Pin Elec / Towbar / To: KA783881 		$146.74 1
13E004 LR115624
MODULE - BODY CONTROL
Tow Hitch Elec Deployable Swan Neck / Towbar / From: KA783882 / To: LA999999 		$336.38 1
13E004 LR129345
MODULE - BODY CONTROL
Tow Hitch Elec Deployable Swan Neck / Towbar / From: MA000001 		$293.00 1
13E004 VPLYT0295
MODULE - BODY CONTROL
Tow Hitch Receiver 12 Pin Elec / Towbar / From: MA000001
IN STOCK 		$141.11 1
14A068 LR081506
BOX - FUSE
To: JA738445 		$679.18 1
14A068 475123464
BOX - FUSE
From: JA738446 / To: JA743666 		$663.75 1
14A068 LR110263
MODULE - BODY CONTROL
From: KA000001 / To: KA778691 		$689.39 1
14A068 LR122404
MODULE - BODY CONTROL
From: KA778692 / To: KA789591 		$1,209.36 1
14A068 LR123902
BOX - FUSE
From: JA743667 / To: JA999999 		$602.98 1
14A068 475123462
MODULE - BODY CONTROL
From: MA000001 / To: MA999999 		$717.40 1
14A068 475123465
MODULE - BODY CONTROL
From: KA789592 / To: LA999999 		$744.32 1
14A068 LR163546
JUNCTION BOX
Electric Engine Battery-PHEV / From: NA000001 		$539.11 1
14A068 LR172878
JUNCTION BOX
Less Electric Engine Battery / From: NA000001 		$549.72 1
14A254A LR092787
BRACKET - JUNCTION BOX MOUNTING
RHD 		$19.72 1
14A254B LR092786
BRACKET - JUNCTION BOX MOUNTING
LHD / Upper 		$18.59 1
14A254C LR092788
BRACKET - JUNCTION BOX MOUNTING
LHD / Lower 		$19.72 1
14B298 LR140943
MODULE-CONTROL
Driver Assistance Domain Controller / From: MA000001 / To: MA328470 		$628.97 1
14B298 LR162090
MODULE-CONTROL
Driver Assistance Domain Controller / From: MA328471 / To: MA999999 		$547.83 1
14B298 LR169859
MODULE-CONTROL
Driver Assistance Domain Controller / From: NA000001 		$573.64 1
14B429 LR091245
SENSOR - BLIND SPOT MONITORING
Blind Spot Assist / LH / To: JA740647 		$957.79 1
14B429 LR091246
SENSOR - BLIND SPOT MONITORING
Blind Spot Assist / RH / To: JA740647 		$957.79 1
14B429 LR110725
SENSOR - BLIND SPOT MONITORING
Blind Spot Assist, Less Reverse Traffic Detection, Version - R-Dynamic / LH / From: JA740648 		$957.79 1
14B429 LR110726
SENSOR - BLIND SPOT MONITORING
Lane Change Merge Aid, Less Reverse Traffic Detection, Version - R-Dynamic / RH / From: JA740648 		$957.79 1
14B429 LR125305
SENSOR - BLIND SPOT MONITORING
5.0L P AJ133 DOHC CDA S/C Enhanced, Less Blind Spot Information System, Limited Package, Reverse Traffic Detection / LH / From: KA000001 		$925.13 1
14B429 LR125307
SENSOR - BLIND SPOT MONITORING
5.0L P AJ133 DOHC CDA S/C Enhanced, Less Blind Spot Information System, Limited Package, Reverse Traffic Detection / RH / From: KA000001 		$925.13 1
14B526 LR079623
MODULE - BATTERY
Starter - Stop/Start System / Voltage Quality Module 		$315.19 1
14D189 LR142322
BRACKET
5.0L P AJ133 DOHC CDA S/C Enhanced, Less Blind Spot Information System, Reverse Traffic Detection / LH / From: KA000001 / To: LA999999 		$50.65 1
14D189 LR142321
BRACKET
5.0L P AJ133 DOHC CDA S/C Enhanced, Less Blind Spot Information System, Reverse Traffic Detection / RH / From: KA000001 / To: LA999999 		$50.65 1
14D189 LR143175
BRACKET
RH / From: MA000001 / To: MA323057 		$19.44 1
14D189 LR143176
BRACKET
LH / From: MA000001 / To: MA323057 		$19.44 1
14D189 LR162743
BRACKET
RH / From: MA323058 		$19.44 1
14D189 LR162744
BRACKET
LH / From: MA323058 		$19.44 1
17B649 LR058011
SENSOR - CLIMATE CONTROL SYSTEM
Humidity Sensor, Located Near Rear View Mirror 		$143.78 1
17D547 LR083315
MODULE - WINDSHIELD RAIN SENSOR
Less Head Up Display / Located In Rear View Mirror Cover / To: JA738445 		$211.48 1
17D547 LR083313
MODULE - WINDSHIELD RAIN SENSOR
Head Up Display / Located In Rear View Mirror Cover / To: JA738444 		$203.14 1
17D547 LR112879
MODULE - WINDSHIELD RAIN SENSOR
Head Up Display / Located In Rear View Mirror Cover / From: JA738445 / To: KA999999 		$226.23 1
17D547 LR112878
MODULE - WINDSHIELD RAIN SENSOR
Less Head Up Display / Located In Rear View Mirror Cover / From: JA738446 / To: KA999999 		$217.86 1
17D547 LR137198
MODULE - WINDSHIELD RAIN SENSOR
Less Head Up Display / Located In Rear View Mirror Cover / From: LA000001 / To: LA999999 		$224.63 1
17D547 LR137199
MODULE - WINDSHIELD RAIN SENSOR
Head Up Display / Located In Rear View Mirror Cover / From: LA000001 / To: LA999999 		$226.23 1
17D547 LR139881
MODULE - WINDSHIELD RAIN SENSOR
Located In Rear View Mirror Cover / From: MA000001 / To: MA324887 		$208.38 1
17D547 LR162024
MODULE - WINDSHIELD RAIN SENSOR
Located In Rear View Mirror Cover / From: MA324888 / To: MA327866 		$217.78 1
17D547 LR166214
MODULE - WINDSHIELD RAIN SENSOR
Located In Rear View Mirror Cover / From: MA327867 		$211.84 1
19A522 LR090993
HEATER CONTROL
To: KA235615 		$387.26 1
19A522 LR126759
HEATER CONTROL
From: KA235616 / To: LA999999 		$384.19 1
19A522 LR141779
HEATER CONTROL
2.0L AJ200P Hi PHEV / From: MA000001 / To: NA999999 		$578.18 1
19A522 LR141777
HEATER CONTROL
3.0L AJ20P6 Petrol High / From: MA000001 / To: NA999999 		$369.75 1
19A522 LR176250
Heater Control
2.0L AJ200P Hi PHEV, Air Conditioning Refrigerant-R134A / From: PA000001 		$584.78 1
19A522 LR175319
Heater Control
3.0L AJ20D6 Diesel High / From: PA000001 		$502.52 1
18808 LR049976
SPEAKER
Tow Hitch Elec Deployable Swan Neck 		$136.94 1
