Switches (Steering Column)

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol]

Find Your Part

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] - Switches (Steering Column)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR121305 CLIP $1.29 To Order
Photo Part No Description Price (each) Stock
LR121304 SCREW $2.31 To Order
Photo Part No Description Price (each) Stock
LR071107 SWITCH - STEERING COLUMN ADJUST $28.35 To Order
LR090985 SWITCH - STEERING COLUMN ADJUST $60.38 To Order
Photo Part No Description Price (each) Stock
LR129183 SWITCH - MULTIPLE FUNCTION $432.45 To Order
LR129184 SWITCH - MULTIPLE FUNCTION $389.25 To Order
LR129185 SWITCH - MULTIPLE FUNCTION $435.45 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR087111 SENSOR - STEERING ROTATION $415.47 To Order
LR087112 SENSOR - STEERING ROTATION $397.37 To Order
LR101296 SENSOR - STEERING ROTATION $384.88 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR090991 HOUSING - STEERING ANGLE SENSOR $76.21 To Order
Photo Part No Description Price (each) Stock
LR090990 SWITCH - WASHER AND WIPER $226.52 To Order
LR125107 SWITCH - WASHER AND WIPER $243.81 To Order
Photo Part No Description Price (each) Stock
LR090986 SWITCH DIRECTION INDICATOR $172.93 To Order
LR090987 SWITCH - DIRECTION INDICATOR $185.47 To Order
LR125104 SWITCH - DIRECTION INDICATOR $170.81 To Order
...and 1 more part variants. See table on right for more details.
View All

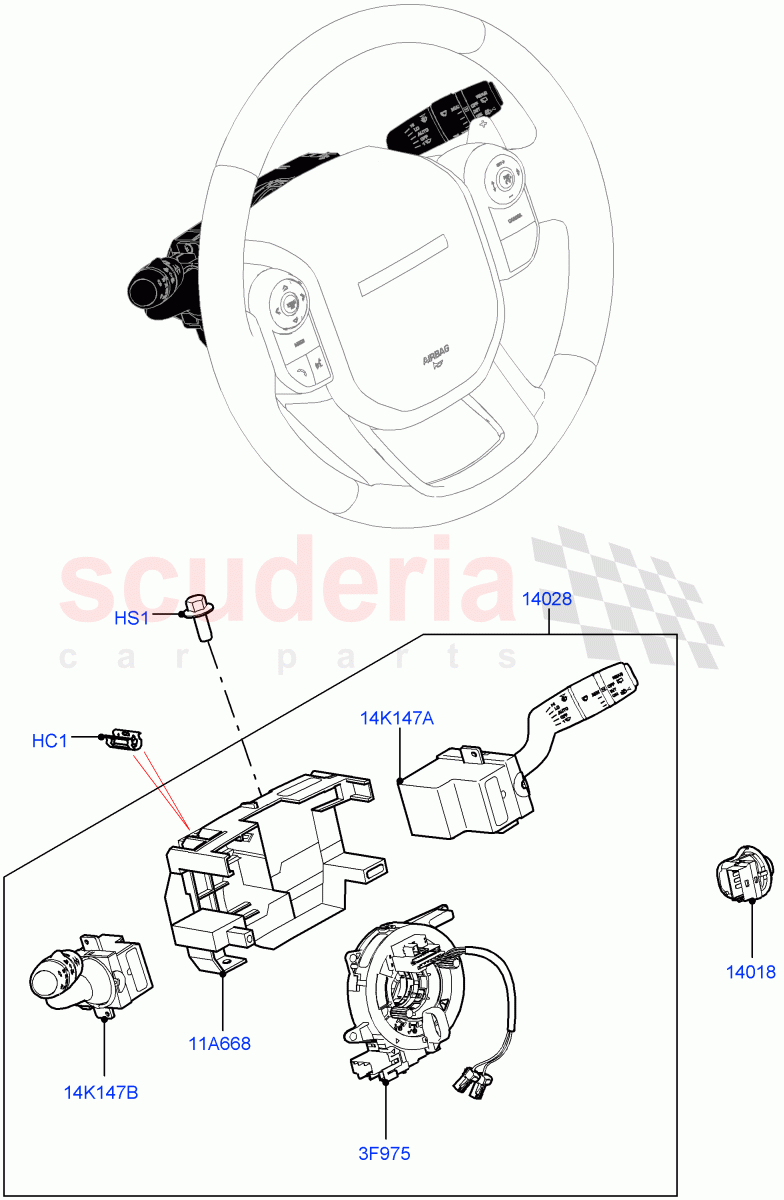

Switches (Steering Column) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HC1 LR121305
CLIP
From: MA000001 		$1.29 2
HS1 LR121304
SCREW
M5 X 12MM / From: MA000001 		$2.31 2
3F975 LR087111
SENSOR - STEERING ROTATION
Less Heated Steering Wheel, With Occupant Sensor / To: LA999999 		$415.47 1
3F975 LR087112
SENSOR - STEERING ROTATION
With Heated Steering Wheel, With Occupant Sensor / To: LA999999 		$397.37 1
3F975 LR101296
SENSOR - STEERING ROTATION
Sensor - Occupant Classification, With Heated Steering Wheel / To: LA999999 		$384.88 1
3F975 LR101292
SENSOR - STEERING ROTATION
Less Heated Steering Wheel, Sensor - Occupant Classification / To: LA999999 		$376.54 1
3F975 LR087111
SENSOR - STEERING ROTATION
Less Heated Steering Wheel, Sensor-Occ W/out Pass Airbag Cutoff / From: KA000001 / To: LA999999 		$415.47 1
3F975 LR087112
SENSOR - STEERING ROTATION
Sensor-Occ W/out Pass Airbag Cutoff, With Heated Steering Wheel / From: KA000001 / To: LA999999 		$397.37 1
11A668 LR090991
HOUSING - STEERING ANGLE SENSOR
Housing Assy / To: LA999999 		$76.21 1
14K147A LR090990
SWITCH - WASHER AND WIPER
Switch - Multifunction (Wiper) / To: JA700299 		$226.52 1
14K147A LR125107
SWITCH - WASHER AND WIPER
Switch - Multifunction (Wiper) / From: JA700300 / To: LA999999 		$243.81 1
14K147B LR090986
SWITCH DIRECTION INDICATOR
With Front Fog Lamps / LH Side / To: KA220261 		$172.93 1
14K147B LR090987
SWITCH - DIRECTION INDICATOR
Less Front Fog Lamps / LH Side / To: KA220261 		$185.47 1
14K147B LR125104
SWITCH - DIRECTION INDICATOR
With Front Fog Lamps / LH Side / From: KA220262 / To: LA999999 		$170.81 1
14K147B LR125105
SWITCH - DIRECTION INDICATOR
Less Front Fog Lamps / LH Side / From: KA220262 / To: LA999999 		$179.22 1
14018 LR071107
SWITCH - STEERING COLUMN ADJUST
Steering Column Less Pyro Technical / Steering Column Adjust / To: LA999999 		$28.35 1
14018 LR090985
SWITCH - STEERING COLUMN ADJUST
Steering Column Less Pyro Technical / Steering Column Adjust / From: MA000001 		$60.38 1
14028 LR129183
SWITCH - MULTIPLE FUNCTION
Less Heated Steering Wheel, With Front Fog Lamps / From: MA000001 		$432.45 1
14028 LR129184
SWITCH - MULTIPLE FUNCTION
Less Front Fog Lamps, Less Heated Steering Wheel / From: MA000001 		$389.25 1
14028 LR129185
SWITCH - MULTIPLE FUNCTION
With Front Fog Lamps, With Heated Steering Wheel / From: MA000001 		$435.45 1
14028 LR129186
SWITCH - MULTIPLE FUNCTION
Less Front Fog Lamps, With Heated Steering Wheel / From: MA000001 		$371.60 1
