Hood And Related Parts

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] - Hood And Related Parts

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500800 BOLT $0.52 To Order
Photo Part No Description Price (each) Stock
LR093340 CLIP - PIPE $3.27 To Order
Photo Part No Description Price (each) Stock
LR093341 CLIP - PIPE $2.63 To Order
Photo Part No Description Price (each) Stock
LR013332 CLIP - SPECIAL $1.57 IN STOCK
LR013332 CLIP - SPECIAL $1.57 IN STOCK
Photo Part No Description Price (each) Stock
LR094188 NUT AND WASHER - HEX. $1.64 To Order
LR094188 NUT AND WASHER - HEX. $1.64 To Order
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. $3.11 IN STOCK
Photo Part No Description Price (each) Stock
RYH500370 NUT AND WASHER - HEX. $0.67 To Order
Photo Part No Description Price (each) Stock
AYB000180 PLUG - THREADED $1.08 To Order
Photo Part No Description Price (each) Stock
AYB500100 PLUG $3.96 To Order
Photo Part No Description Price (each) Stock
LR033401 SCREW AND WASHER $2.13 IN STOCK
Photo Part No Description Price (each) Stock
KYP500400 SCREW AND WASHER $0.61 To Order
Photo Part No Description Price (each) Stock
LR093226 SPACER - HOOD LATCH $8.59 To Order
Photo Part No Description Price (each) Stock
LR091709 HOOD $1,253.19 To Order
LR091710 HOOD $1,662.28 To Order
Photo Part No Description Price (each) Stock
LR065339 LATCH - HOOD $39.76 To Order
LR065340 LATCH - HOOD $42.52 To Order
LR123518 LATCH - HOOD $46.78 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR092608 SEAL - BONNET $75.87 To Order
Photo Part No Description Price (each) Stock
LR091713 HINGE - HOOD $99.53 To Order
LR091715 HINGE - HOOD $99.53 To Order
LR111644 HINGE - HOOD $99.53 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR056513 CATCH - SAFETY $33.68 To Order
LR056514 CATCH - SAFETY $44.57 To Order
LR122950 CATCH - SAFETY $26.48 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR093342 SHIELD - HOOD LATCH $13.04 To Order
Photo Part No Description Price (each) Stock
LR093912 GUIDE - HOOD LATCH $24.27 To Order
LR093911 GUIDE - HOOD LATCH $24.27 To Order
Photo Part No Description Price (each) Stock
LR006639 BUMPER - BONNET $4.01 To Order
Photo Part No Description Price (each) Stock
LR023025 BUMPER - BONNET $5.75 To Order
Photo Part No Description Price (each) Stock
LR093225 CABLE - CONTROL - HOOD $32.42 To Order
Photo Part No Description Price (each) Stock
LR093229 CABLE - CONTROL - HOOD $54.72 To Order
LR093230 CABLE - CONTROL - HOOD $53.75 To Order
Photo Part No Description Price (each) Stock
LR093402 LIFT - GAS $45.99 To Order
Photo Part No Description Price (each) Stock
LR084499 STRIKER - HOOD LOCK $42.52 To Order
LR138829 STRIKER - HOOD LOCK $33.66 To Order
Photo Part No Description Price (each) Stock
LR092707 GRILLE - HOOD VENT $207.72 To Order
LR092708 GRILLE - HOOD VENT $207.72 To Order
LR092709 GRILLE - HOOD VENT $207.72 To Order
...and 13 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR034334 BRACKET - BONNET CONTROL HANDLE MTG $19.42 To Order
Photo Part No Description Price (each) Stock
LR093224 LEVER - BONNET RELEASE $46.46 IN STOCK
Photo Part No Description Price (each) Stock
LR050752 LEVER - BONNET RELEASE $12.11 To Order
LR093233 LEVER - BONNET RELEASE $14.11 To Order
Photo Part No Description Price (each) Stock
LR093231 BRACKET - BONNET CONTROL HANDLE MTG $19.21 To Order
Photo Part No Description Price (each) Stock
LR093232 BRACKET - BONNET CONTROL HANDLE MTG $17.86 To Order
View All

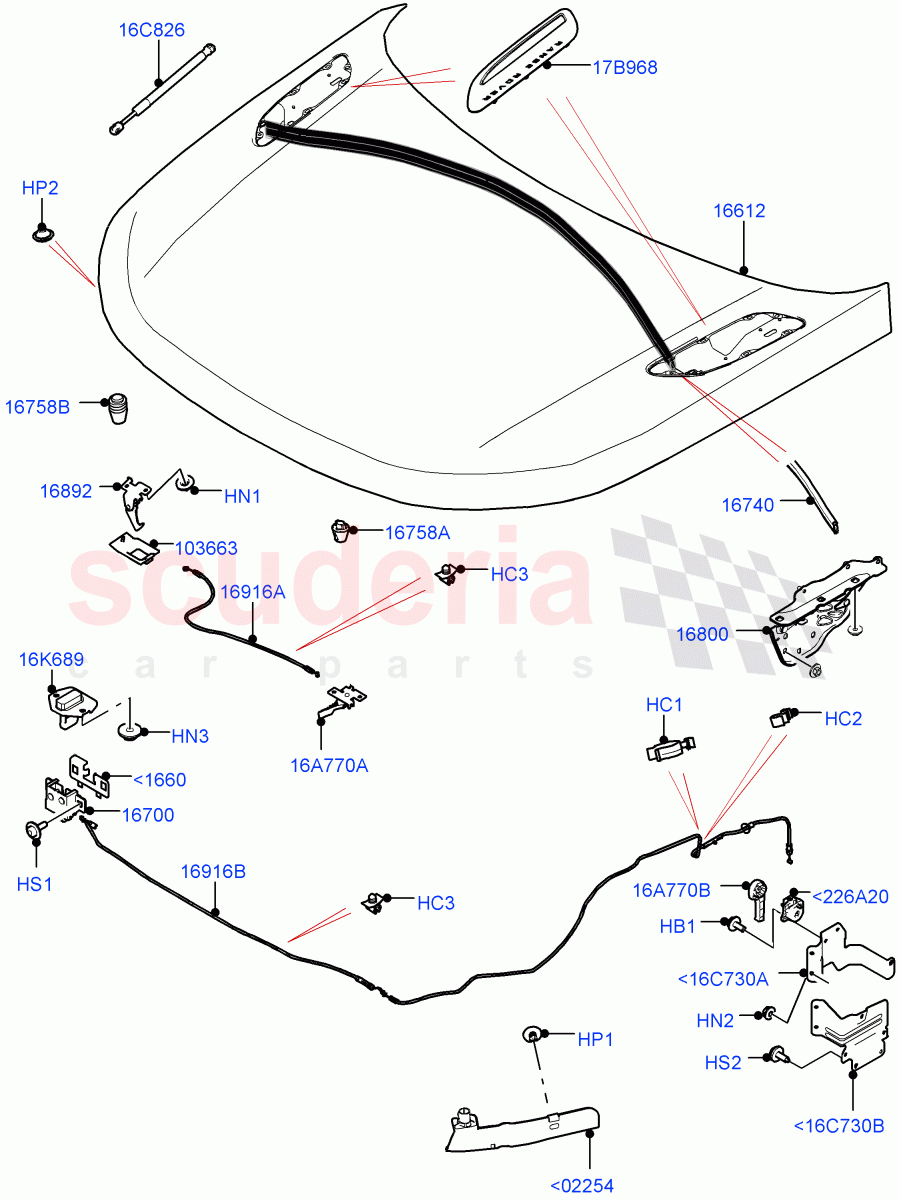

Hood And Related Parts of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<16C730A LR093231
BRACKET - BONNET CONTROL HANDLE MTG
RHD 		$19.21 1
<16C730B LR093232
BRACKET - BONNET CONTROL HANDLE MTG
RHD 		$17.86 1
<226A20 LR034334
BRACKET - BONNET CONTROL HANDLE MTG
Support 		$19.42 1
<1660 LR093226
SPACER - HOOD LATCH 		$8.59 2
<02254 LR093342
SHIELD - HOOD LATCH
Shield 		$13.04 1
HB1 RYG500800
BOLT
Hexagonal Head, M6 X 16MM 		$0.52 1
HC1 LR093340
CLIP - PIPE
Cable Anchor Clip (Double) 		$3.27 2
HC2 LR093341
CLIP - PIPE
Cable Anchor Clip (Double) 		$2.63 2
HC3 LR013332
CLIP - SPECIAL
5.0MM, Cable Anchor Clip (Single), RH/LH, Upper
IN STOCK 		$1.57 4
HC3 LR013332
CLIP - SPECIAL
5.0MM, Cable Anchor Clip (Single), Lever, Lower, Side
IN STOCK 		$1.57 3
HN1 LR094188
NUT AND WASHER - HEX.
Hexagonal Head, Hood Catch, M6, Nut And Washer 		$1.64 4
HN1 LR094188
NUT AND WASHER - HEX.
Hexagonal Head, Hood Latch, M6, Nut And Washer, Upper 		$1.64 2
HN2 RYH500310
NUT AND WASHER - HEX.
RHD / Hexagonal Head, M6, Nut And Washer
IN STOCK 		$3.11 2
HN3 RYH500370
NUT AND WASHER - HEX.
M8 Hex, Nut And Washer 		$0.67 10
HP1 AYB000180
PLUG - THREADED
6.35 X 11.0MM 		$1.08 1
HP2 AYB500100
PLUG
Blanking 		$3.96 4
HS1 LR033401
SCREW AND WASHER
M6 x 19MM
IN STOCK 		$2.13 4
HS2 KYP500400
SCREW AND WASHER
Hexagonal Head, M6 X 16MM 		$0.61 3
16A770A LR093224
LEVER - BONNET RELEASE
Centre, Latch
IN STOCK 		$46.46 1
16A770B LR050752
LEVER - BONNET RELEASE
LHD / Latch, Side 		$12.11 1
16A770B LR093233
LEVER - BONNET RELEASE
RHD / Latch, Side 		$14.11 1
16C826 LR093402
LIFT - GAS 		$45.99 2
16K689 LR084499
STRIKER - HOOD LOCK
To: LA262850 		$42.52 2
16K689 LR138829
STRIKER - HOOD LOCK
From: LA262851 		$33.66 2
17B968 LR092707
GRILLE - HOOD VENT
Hood Scoop - Black / RH / To: MA664260 		$207.72 1
17B968 LR092708
GRILLE - HOOD VENT
Hood Scoop - Black / LH / To: MA664260 		$207.72 1
17B968 LR092709
GRILLE - HOOD VENT
Hood Scoop - Burnished Copper / RH / To: JA753978 		$207.72 1
17B968 LR092710
GRILLE - HOOD VENT
Hood Scoop - Burnished Copper / LH / To: JA753978 		$207.72 1
17B968 LR110610
GRILLE - HOOD VENT
Hood Scoop - Burnished Copper / RH / From: JA753979 / To: MA664260 		$207.72 1
17B968 LR110611
GRILLE - HOOD VENT
Hood Scoop - Burnished Copper / LH / From: JA753979 / To: MA664260 		$207.72 1
17B968 LR116890
GRILLE - HOOD VENT
Hood Scoop - Graphite / RH / From: KA000001 / To: LA999999 		$207.72 1
17B968 LR116891
GRILLE - HOOD VENT
Hood Scoop - Graphite / LH / From: KA000001 / To: LA999999 		$207.72 1
17B968 LR153988
GRILLE - HOOD VENT
Hood Scoop - Graphite / RH / From: MA000001 / To: MA999999 		$207.72 1
17B968 LR153989
GRILLE - HOOD VENT
Hood Scoop - Graphite / LH / From: MA000001 / To: MA999999 		$207.72 1
17B968 LR153964
MOULDING - DOOR OUTSIDE
Hood Scoop - Black / RH / From: MA664261 		$207.72 1
17B968 LR153965
MOULDING - DOOR OUTSIDE
Hood Scoop - Burnished Copper / RH / From: MA664261 		$207.72 1
17B968 LR153967
MOULDING - DOOR OUTSIDE
Hood Scoop - Black / LH / From: MA664261 		$207.72 1
17B968 LR153968
MOULDING - DOOR OUTSIDE
Hood Scoop - Burnished Copper / LH / From: MA664261 		$207.72 1
17B968 LR161853
GRILLE - HOOD VENT
Hood Scoop - Platinum Atlas / RH / From: NA000001 		$169.12 1
17B968 LR161854
GRILLE - HOOD VENT
Hood Scoop - Platinum Atlas / LH / From: NA000001 		$169.12 1
16612 LR091709
HOOD
Less Bonnet Scoop 		$1,253.19 1
16612 LR091710
HOOD
Hood Scoop - Burnished Copper 		$1,662.28 1
16700 LR065339
LATCH - HOOD
LH / To: LA260667 		$39.76 1
16700 LR065340
LATCH - HOOD
RH / To: KA797058 		$42.52 1
16700 LR123518
LATCH - HOOD
RH / From: KA797059 / To: KA799664 		$46.78 1
16700 LR125366
LATCH - HOOD
RH / From: KA799665 / To: LA260667 		$44.00 1
16700 LR138825
LATCH - HOOD
LH / From: LA260668 / To: MA327610 		$47.70 1
16700 LR138826
LATCH - HOOD
RH / From: LA260668 / To: MA327610 		$47.70 1
16700 LR173840
LATCH - HOOD
LH / From: MA327611 		$45.54 1
16700 LR173841
LATCH - HOOD
RH / From: MA327611 		$45.54 1
16740 LR092608
SEAL - BONNET
For Bonnet 		$75.87 1
16758A LR006639
BUMPER - BONNET 		$4.01 2
16758B LR023025
BUMPER - BONNET 		$5.75 2
16800 LR091713
HINGE - HOOD
RH / To: JA739614 		$99.53 1
16800 LR091715
HINGE - HOOD
LH / To: JA739614 		$99.53 1
16800 LR111644
HINGE - HOOD
RH / From: JA739615 		$99.53 1
16800 LR111645
HINGE - HOOD
LH / From: JA739615 		$99.53 1
16892 LR056513
CATCH - SAFETY
RH / To: KA799282 		$33.68 1
16892 LR056514
CATCH - SAFETY
LH / To: KA799282 		$44.57 1
16892 LR122950
CATCH - SAFETY
LH / From: KA799283 		$26.48 1
16892 LR122949
CATCH - SAFETY
RH / From: KA799283 		$24.98 1
16916A LR093225
CABLE - CONTROL - HOOD
RH/LH, Upper 		$32.42 2
16916B LR093229
CABLE - CONTROL - HOOD
LHD / Lower, Side 		$54.72 1
16916B LR093230
CABLE - CONTROL - HOOD
RHD / Lower, Side 		$53.75 1
103663 LR093912
GUIDE - HOOD LATCH
RH 		$24.27 1
103663 LR093911
GUIDE - HOOD LATCH
LH 		$24.27 1
